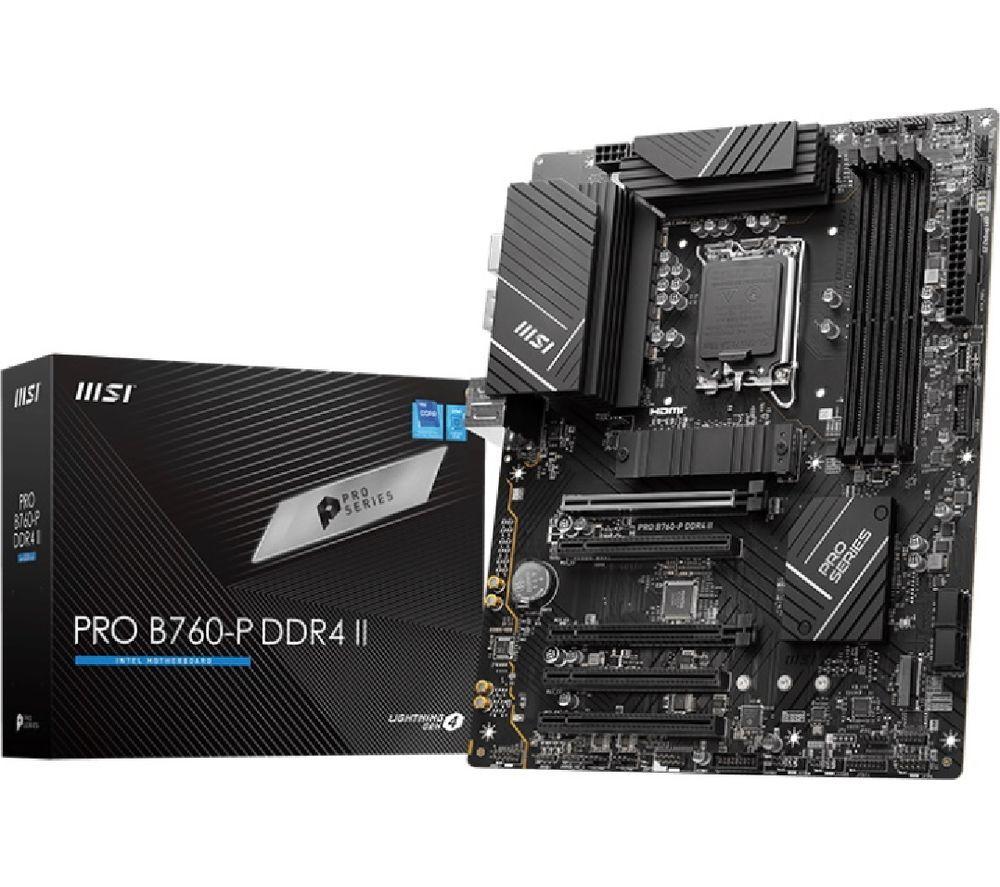

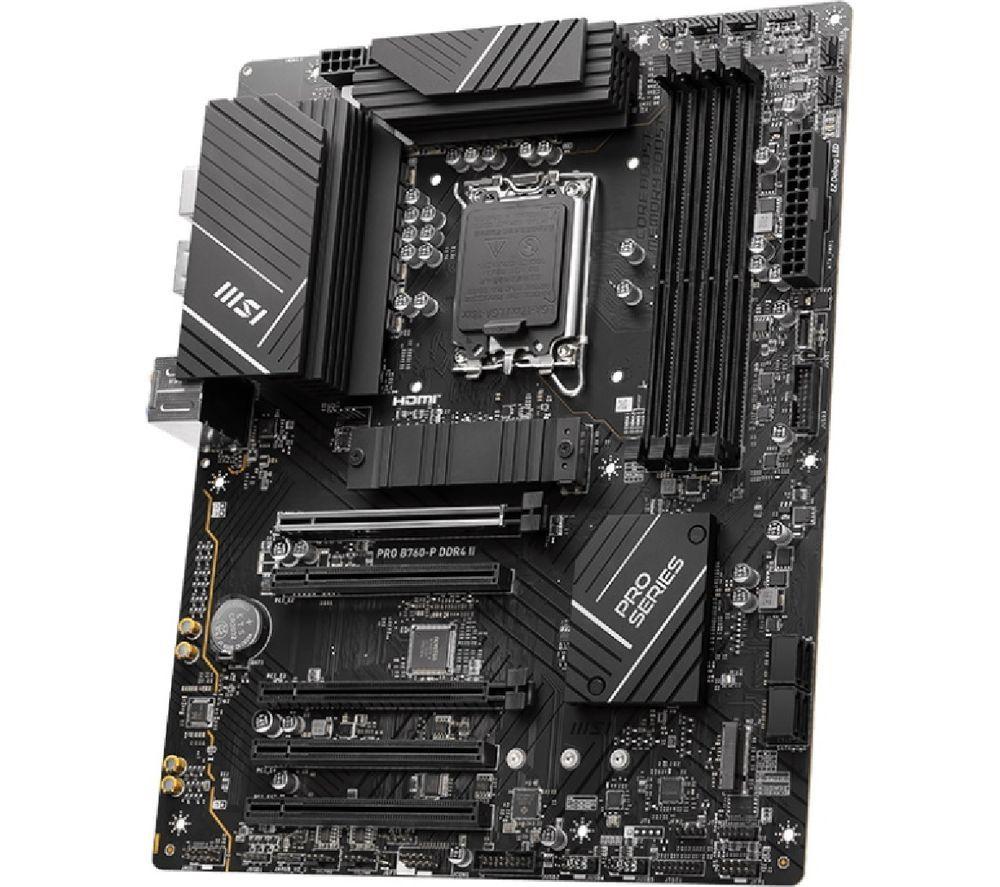

MSI PRO B760-P DDR4 II LGA 1700 Motherboard

MSI PRO B760-P DDR4 II LGA 1700 Motherboard

Item No. 10262808
Form factor: ATX
Socket: Intel® 1700
Chipset: Intel® B760
Memory: DIMM x 4 / Max RAM: 128 GB DDR4
3 year guarantee
€189.00
Saved items limit reached (20/20)
To save this item, try removing something else from your Saved items.
Save for later
Check stock in your area
store Delivery Fast nationwide delivery Checking Stock...
store collection Free delivery to store in 3-5 working days Checking Stock...

Delivery to:

Select your preferred delivery option at checkout
Change location

Location selected:

Change location

What you’ll need to make it even better

Form factor: ATX
Socket: Intel® 1700
Chipset: Intel® B760
Memory: DIMM x 4 / Max RAM: 128 GB DDR4
3 year guarantee
Product code: 529535

This MSI motherboard lets you build a powerful PC based on 14th gen Intel® core processor. Its dual channel DDR4 RAM gives you double the bandwidth. So, your PC will run much faster and smoother, making it ideal for gaming, multitasking, and handling heavy software without any lag. Fancy a gaming rig or a content creator‘s workstation? Using the PCIe 4.0 expansion slot you can hook up most graphics cards for a truly high-end setup. The M.2 Gen4 slots with a 64 GB/s speed give you quick loading times and file transfers.

Good to know

- The extended heatsink coupled with M.2 Thermal Frozr Guards and AI cooling will keep your system cool even during high-performance tasks
- EZ Debug LED helps you troubleshoot any issue quickly
- With 4 USB Type-A and a USB Type-C ports on the back, you can stick in all your USB drives, keyboards and mouse
2.5G Ethernet port is great for lightning fast wired internet connection

Technical specifications for MSI PRO B760-P DDR4 II LGA 1700 Motherboard

OVERVIEW

Form factor
ATX
Chipset
Intel® B760
Socket
Intel® LGA1700
Processor models supported
12th/ 13th/ 14th generation Intel® Core™ / Pentium® Gold / Celeron® processors
Memory slots
4 x DIMM (Max RAM: 128 GB)
Memory standard
DDR4
Cooling features
- Fan cooling
- M.2 Shield Frozr
- Frozr AI Cooling
- Extended PWM heatsink
- Plated VRM heatsink
- Chipset heatsink
- MOSFET thermal pads
Operating systems supported
- Windows 10
- Windows 11

EXTERNAL CONNECTIVITY

Video output
- HDMI x 1
- DisplayPort x 1
LAN
2.5G Ethernet port
Audio
Realtek® ALC897 Codec 7.1-Channel HD Audio
USB
USB 3.2 Type-A x 4
Expansion slots
- PCIe 4.0 (x16 slot) x 2
- PCIe 3.0 (x1 slot) x 3
Storage slots
- SATA x 4 (6 GB/s)
- M.2 Gen4 x 2 (64 GB/s)
Cooling
- CPU fan 4-pin x 1
- Pump fan 4-pin x 1
- System fan 4-pin x 5
Power
- 24-pin ATX x 1
- 8-pin 12V ATX x 2
Other internal connections
- TBT connector x 1
- Addressable V2 RGB LED connector x 2
- RGB LED 4-pin x 2
USB
- USB Type-C x 1
- USB 2.0 x 4

GENERAL

Box contents
- MSI PRO B760-P DDR4 II LGA 1700 Motherboard
- SATA cables x 2
- EZ M.2 clips set x 1
- M.2 screw and standoff pack x 1
- IO shield
- Support disc
- Quick installation guide
- European Union regulatory notice
Weight
1.45 kg
Manufacturer’s guarantee
3 years
Dimensions
304.8 x 243.84 mm (H x W)
Colour
Black
