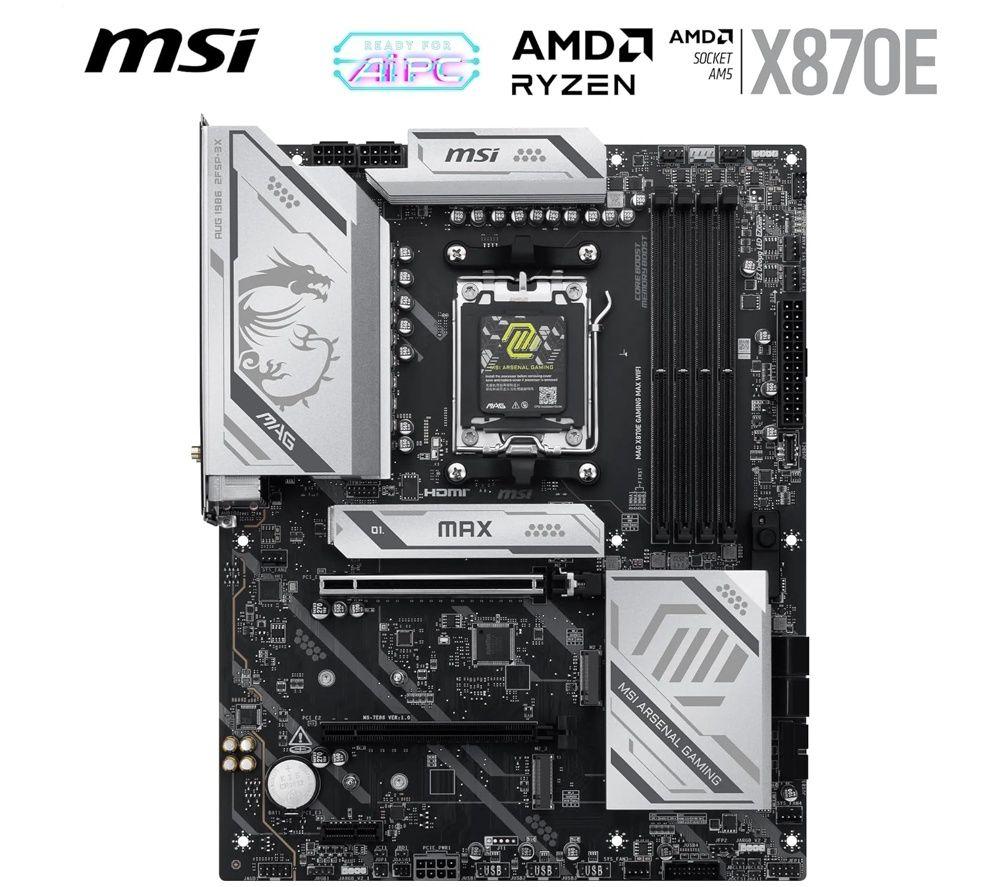

MSI MAG X870E GAMING MAX WIFI AM5 Motherboard

MSI MAG X870E GAMING MAX WIFI AM5 Motherboard

Item No. 10302858
Form factor: ATX
Socket: AMD AM5
Chipset: AMD X870E
Memory: UDIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee
Form factor: ATX
Socket: AMD AM5
Chipset: AMD X870E
Memory: UDIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee
Product code: 560487

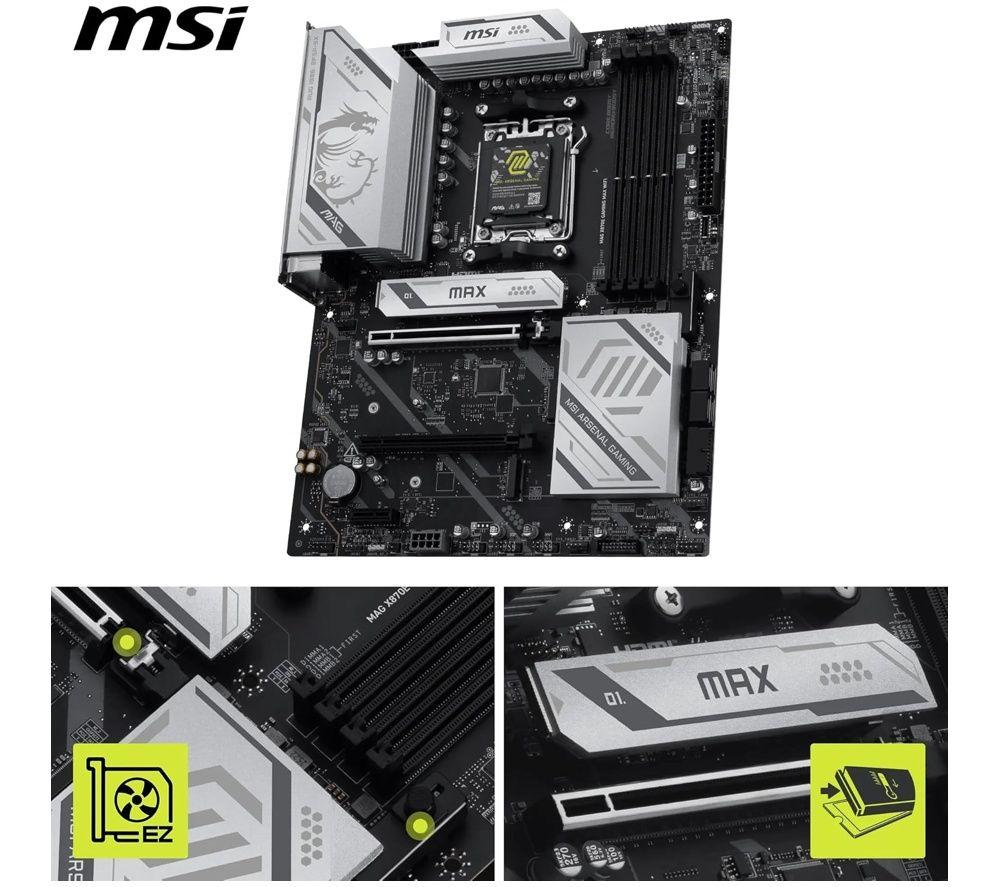

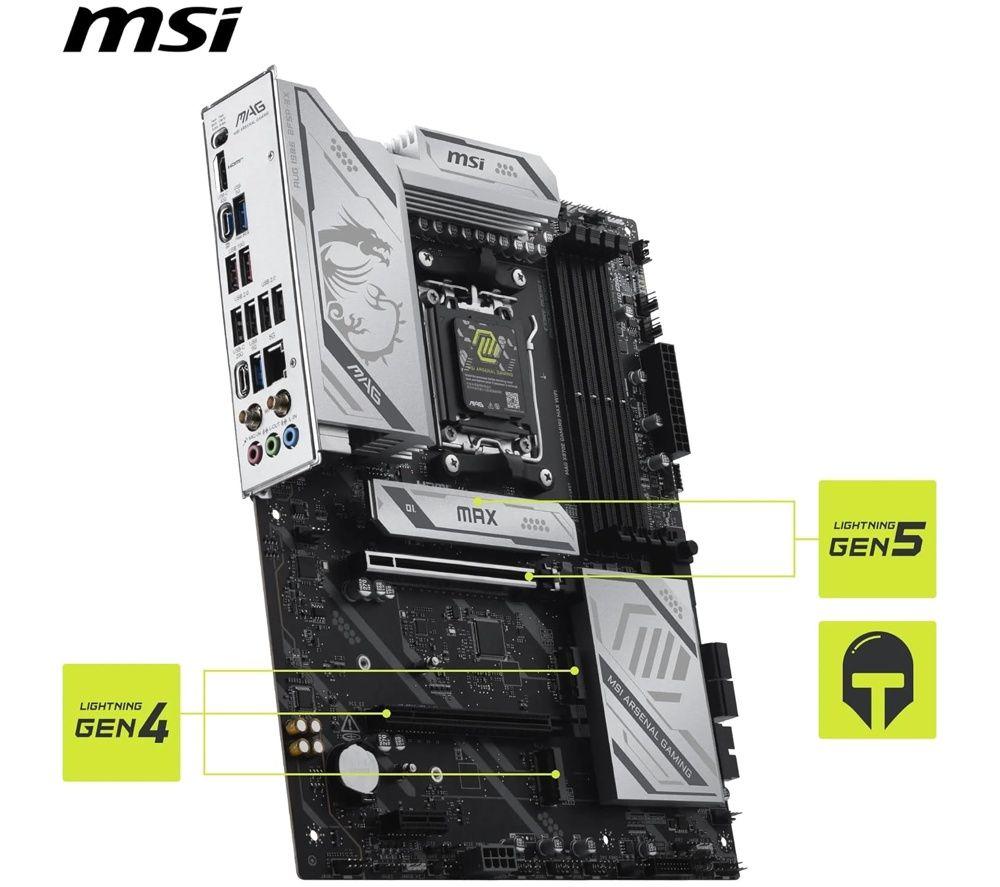

This MSI MAG motherboard lets you build a PC based on a 9000 series AMD processor and DDR5 RAM. The PCIe 5.0 expansion slot lets you hook up most recent graphics cards for a high-end setup. Plus, the advanced heatsinks and M.2 Shield Frozr II cooling keep your system stable, even under heavy workloads.

Good to know

  • X870E chipset is fully compatible with next-generation AMD components
  • Four SATA slots give you room to add traditional storage drives to your build
  • Three Addressable RGB headers
  • WiFi 7 and 5G LAN port
  • USB-A, USB-C,HDMI and DisplayPort
  • HD audio
  • Bluetooth 5.4

Technical specifications for MSI MAG X870E GAMING MAX WIFI AM5 Motherboard

OVERVIEW

Form factor
ATX
Chipset
AMD X870E
Socket
AMD AM5
Processor models supported
AMD Ryzen 9000 Series desktop processors
Memory slots
4 x UDIMM (Max RAM: 256 GB)
Memory standard
DDR5
Multi-GPU support
No

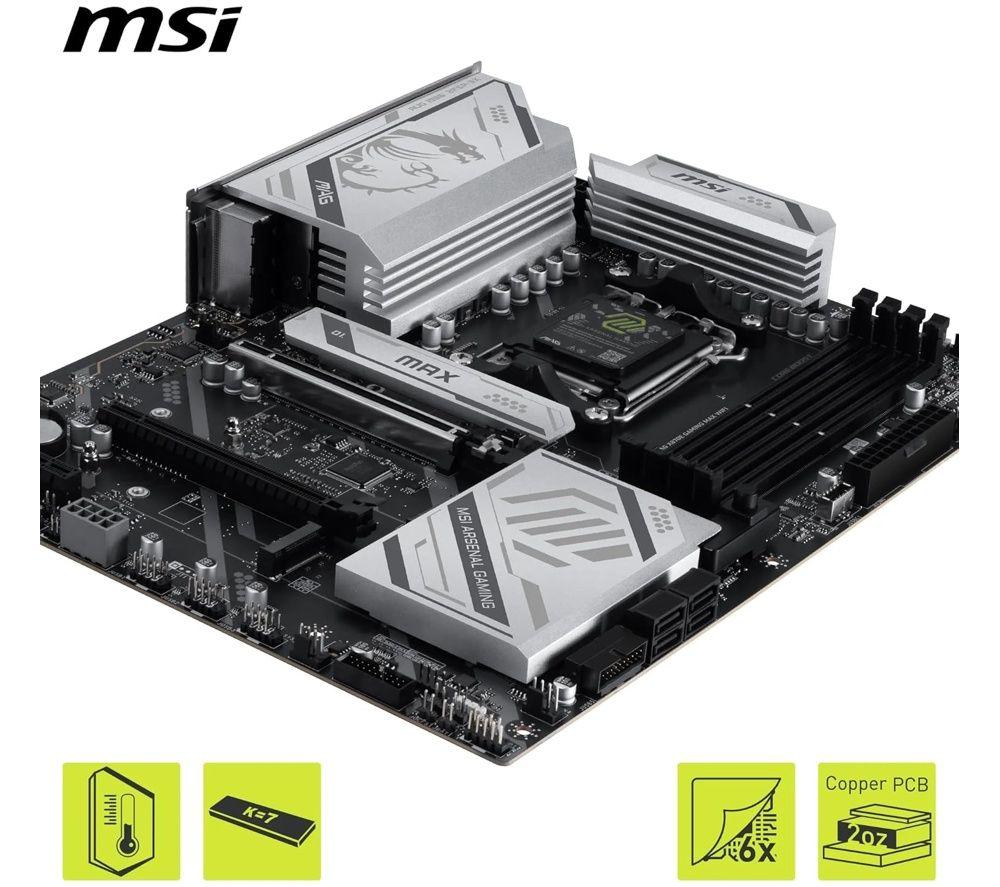

Cooling features
- Extended heatsinks
- MOSFET thermal pads
- M.2 Shield Frozr II
Operating systems supported
Windows 11 or later

EXTERNAL CONNECTIVITY

Video output
- HDMI x 1
- DisplayPort x 1
LAN
Realtek 8126 5G LAN
Audio
- Realtek ALC897
- 7.1-Channel High-Definition audio
USB
- USB 2.0 (Rear) x 4
- USB 2.0 (Front) x 6
- USB 5Gbps Type A (Rear) x 2
- USB 5Gbps Type A (Front) x 4
- USB 10Gbps Type A (Rear) x 2
- USB 10Gbps Type C (Front) x 1
- USB 20Gbps Type C (Rear) x 1
- USB 40Gbps Type C (Rear) x 1
Other external connections
- Wi-Fi 7
- Bluetooth 5.4
- Clear CMOS Button
- Flash BIOS Button

INTERNAL CONNECTIVITY

BIOS
UEFI AMI BIOS
Expansion slots
PCIe (x16) x1
PCIe (x4) x1
PCIe (x1) x1
Storage slots
- SATA x 4 (6 GB/s)
- M.2 x 3
Cooling
- CPU fan 4-pin x 1
- Combo Fan (Pump_Sys Fan) x 1
- System fan x 6
Case
- EZ Conn-header (JAF_1) x 1
- Front Panel (JFP) x 2
- Chassis Intrusion (JCI) x 1
- Front Audio (JAUD) x 1
Buttons
- Flash BIOS
- CMOS Button
Power
- 24-pin ATX x 1
- 8-pin CPU x 2
- 8-pin PCIe x1
Sensors
- Thermal sensor
- Fan sensor
Other internal connections
- EZ Conn-header (JAF_1) x 1
- Front Panel (JFP) x 2
- Chassis Intrusion (JCI) x 1
- Front Audio (JAUD) x 1
- Tuning Controller connector (JDASH) x 1
- Addressable V2 RGB LED connector (JARGB_V2) x 3
- RGB LED connector (JRGB) x 1
- TPM pin header (Support TPM 2.0) x 1
- Direct OC Jumper (JBCLK) x 2
USB
- USB 2.0 ports x 6
- USB 3.2 Type-A (5Gbps) x 4
- USB 3.2 Type-C (20Gbps) x 1

GENERAL

Box contents
- MSI MAG X870E GAMING MAX WIFI AM5 Motherboard
- Wi-Fi antenna
- SATA cables
- M.2 screws
- User manual
- Quick installation guide
Manufacturer’s guarantee
3 years
Dimensions
244 x 305 mm (W x D)
Colour
Black
