MSI B850 GAMING PLUS WIFI 6E AM5 Motherboard

MSI B850 GAMING PLUS WIFI 6E AM5 Motherboard

Item No. 10288897
5/5 1 reviews
Wk09 2026 Hot Deal Computing IE
Form factor: ATX
Socket: AMD AM5
Chipset: AMD B850
Memory: UDIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee
Form factor: ATX
Socket: AMD AM5
Chipset: AMD B850
Memory: UDIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee
Product code: 645352

Building a compact gaming PC? This ATX board from MSI is designed to handle powerful components. It's ready for a 9000 Series AMD processor, so you can put all those cores to work. Add up to 256 GB of DDR5 RAM and blaze through your workflows. And with dual M.2 slots, you can pop in high-speed SSDs that won't make you wait around. With the extended heatsink and M.2 Shield Frozr Guards it's ready to keep cool even in a high-performance setup.

Good to know

- X3D Turbo Mode gives you one-click access to next-level gaming performance
- Enable advanced AI-enhanced overclocking for DDR5 memory with the D5 Bionic Corsa
- With WiFi 6E and 2.5G Ethernet you'll have super-fast and rock-solid internet connection
- Smart AI boost gets you that get extra horsepower for your game whenever you need it
- The best part is that its transient voltage suppressors will protect you from over current & voltage spikes

Technical specifications for MSI B850 GAMING PLUS WIFI 6E AM5 Motherboard

OVERVIEW

Form factor
ATX
Chipset
AMD B850
Socket
AMD AM5
Processor models supported
AMD Ryzen 9000 / 8000 / 7000 Series desktop processors
Memory slots
4 x DDR5 (Max RAM: 256 GB)
Memory standard
DDR5
Multi-GPU support
No
Cooling features
- Fan cooling
- Liquid cooling
- Water pump support
Operating systems supported
Windows 11 (64-bit)

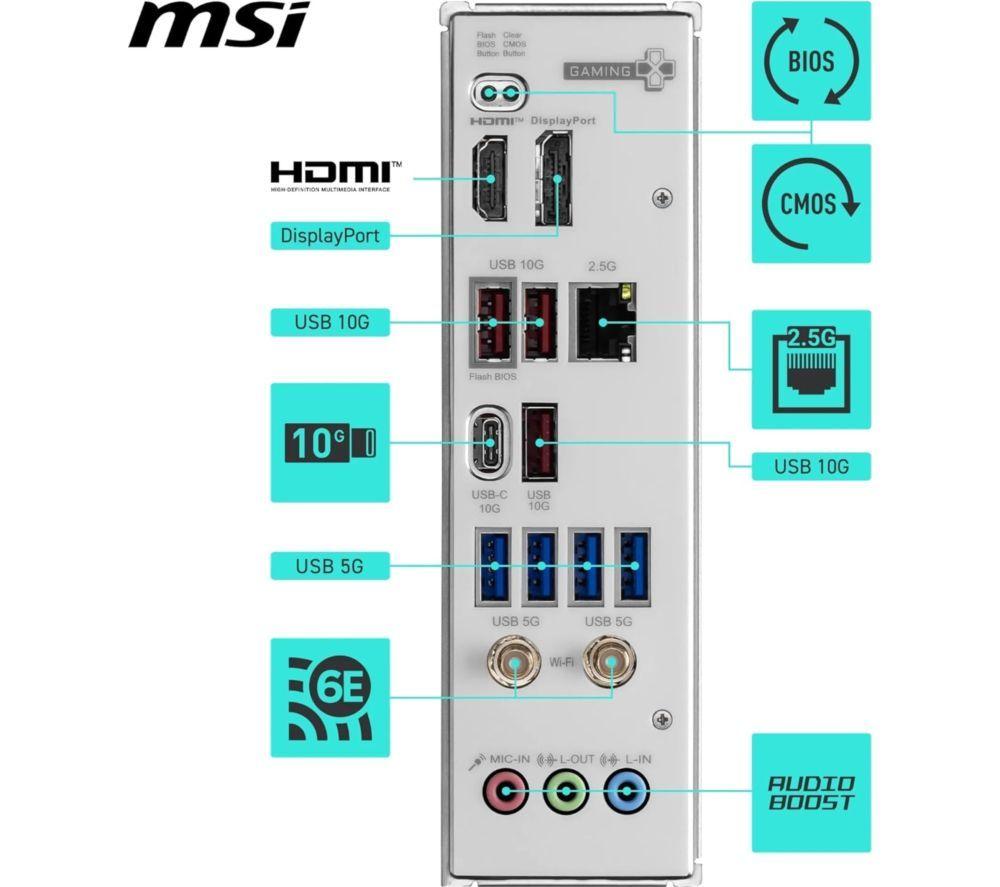

EXTERNAL CONNECTIVITY

Video output
- HDMI x 1
- DisplayPort x 1
LAN
Gigabit Ethernet port x 1
Audio
- Realtek ALC897
- 7.1-Channel High-Definition audio
- 3.5 mm jack
USB
- USB Type-C x 2
- USB 3.0 x 5
- USB 2.0 x 7
Other external connections
- PS/2
- CMOS Button
- Flash BIOS Button
- Wi-Fi 6E
- Bluetooth 5.3
- Antenna ports x 2
- Q-Flash plus button

INTERNAL CONNECTIVITY

BIOS
UEFI BIOS with Flash BIOS support
Expansion slots
- PCIe (x16) x 1
- PCIe (x1) x 2
Storage slots
- SATA x 4
- M.2 x 3
Cooling
- CPU fan x 1
- CPU/water x 1
- System fan x 3
- Sys/water x 1
Case
- Front Panel (JFP) x 2
- Chassis Intrusion (JCI) x 1
- Front Audio (JAUD) x 1
- Com Port (JCOM) x 1
Buttons
- BIOS FlashBack
- Clear CMOS
Power
- 24-pin ATX Power x 1
- 8-pin CPU Power x 1
- 4-pin ATX x 1
Sensors
- EZ Debug LED x 4
- EZ Memory Detection LED x 1
Other internal connections
- EZ Conn-header (JAF_1) x 1
- Tuning Controller connector (JDASH) x 1
- Addressable V2 RGB LED connector (JARGB_V2) x 3
- RGB LED connector (JRGB) x 1
- TPM 2.0 header x 1
USB
- USB 2.0 ports x 4
- USB Type-A (5Gbps) ports x 2
- USB Type-C (10Gbps) ports x 1

GENERAL

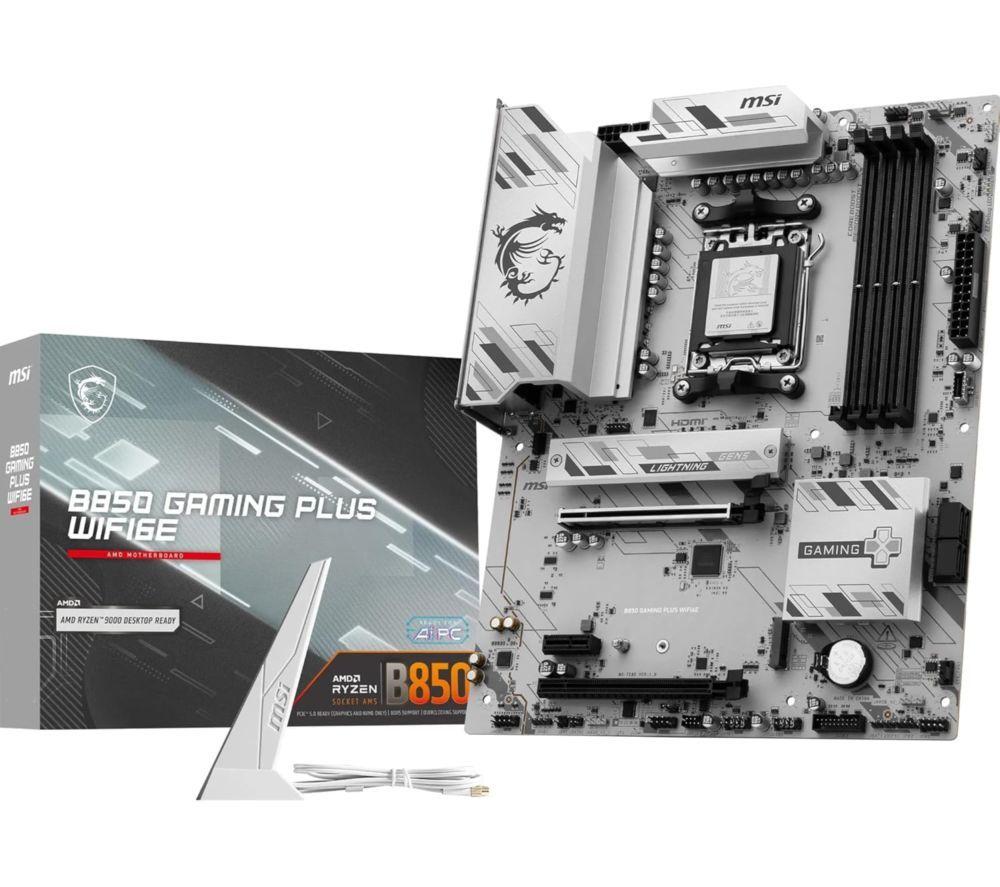

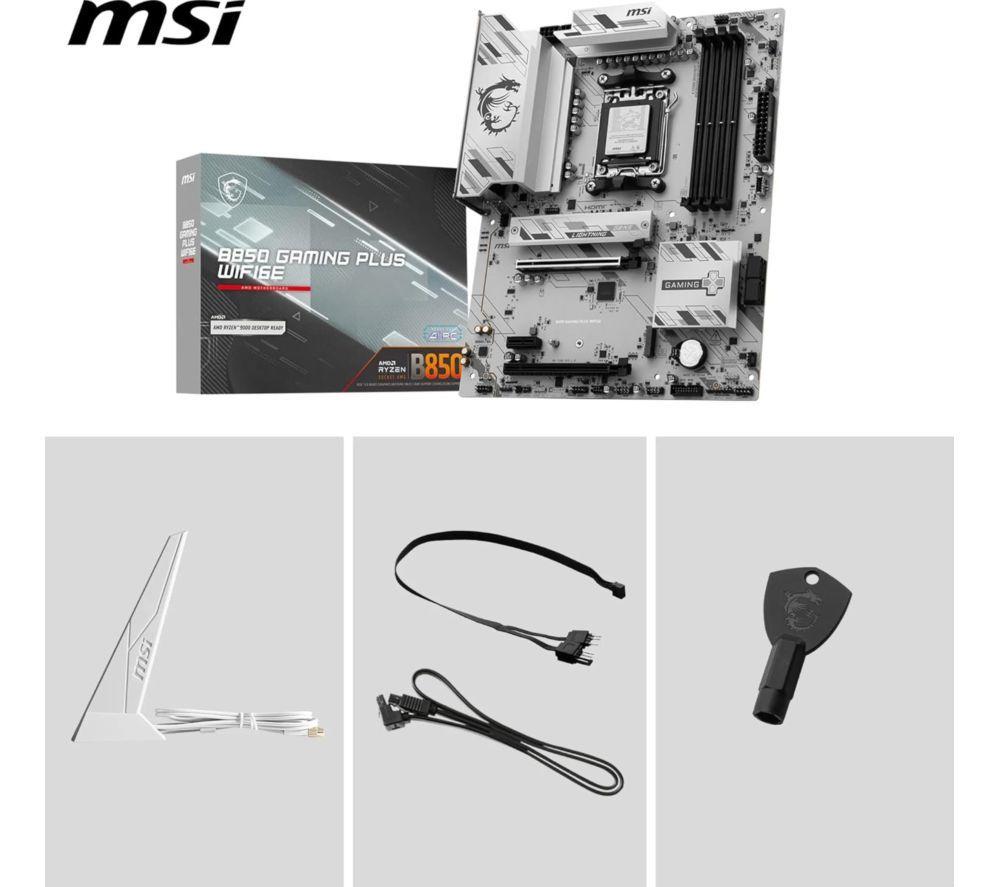

Box contents
- B850 GAMING PLUS WIFI 6E AM5 Motherboard
- EZ Wi-Fi Antenna
- 1 to 2 EZ Conn-Cable
- SATA Cable
- EZ M.2 Clip II Remover
- Cable sticker
- Quick installation guide
Weight
1.57 kg
Manufacturer’s guarantee
3 years
Dimensions
70 x 268 x 342 mm (W x D)
Colour
White
