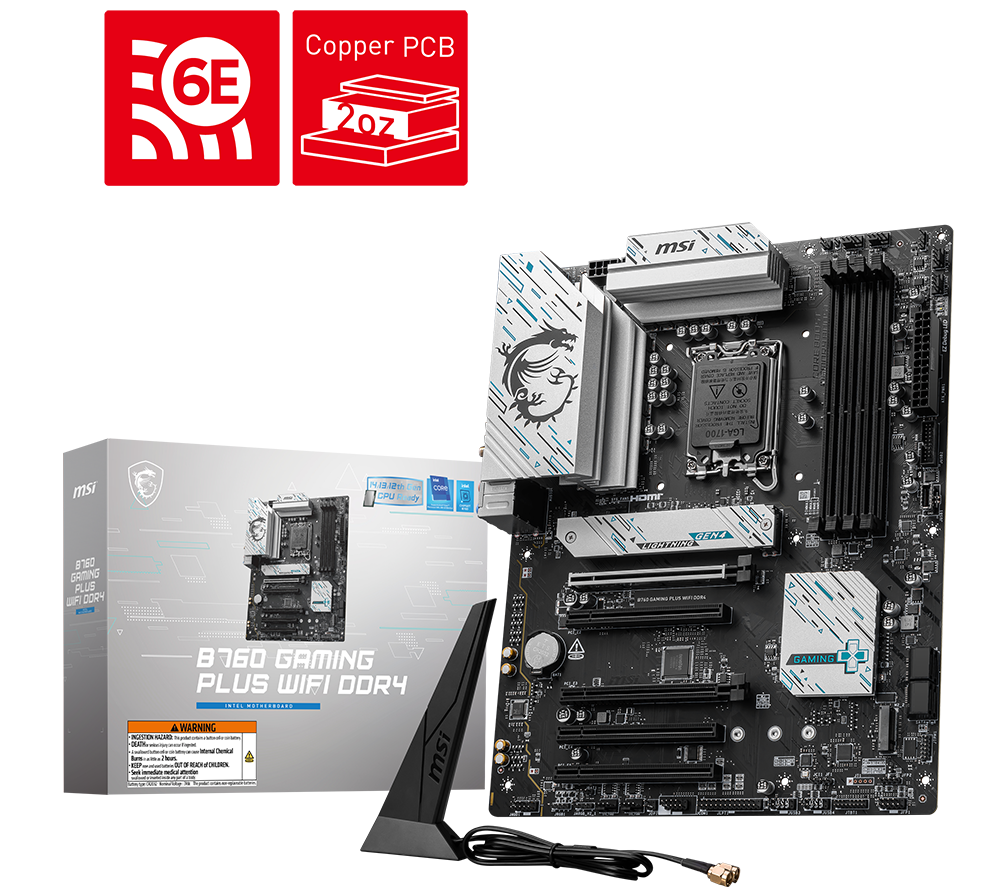

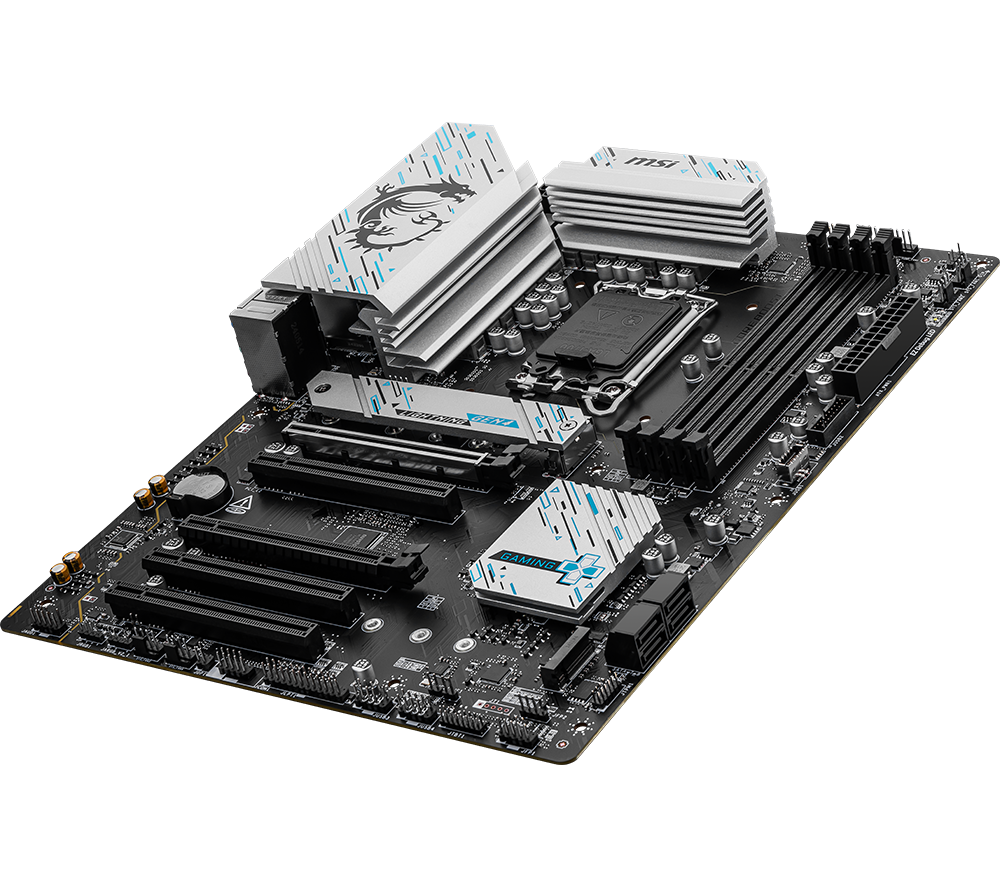

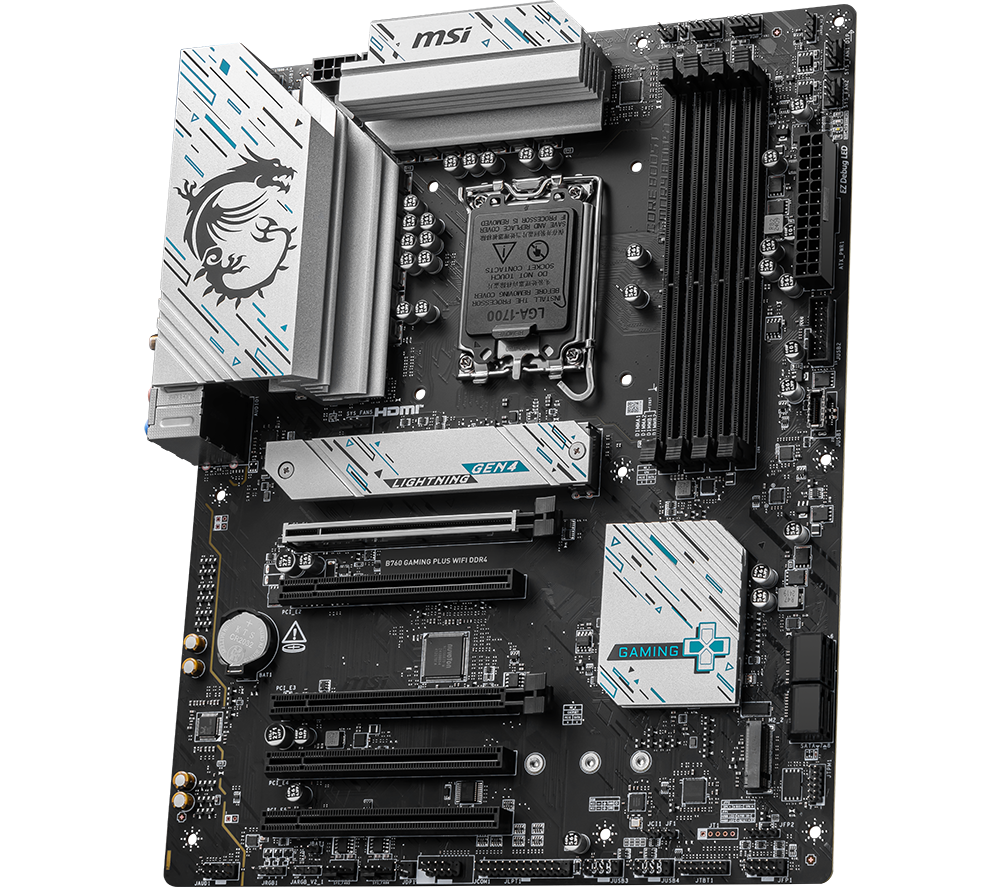

MSI B760 GAMING PLUS WIFI DDR4 LGA1700 Motherboard

MSI B760 GAMING PLUS WIFI DDR4 LGA1700 Motherboard

Item No. 10271386
4.9/5 13 reviews
Form factor: ATX
Socket: Intel® 1700
Chipset: Intel® B760
Memory: DIMM x 4 / Max RAM: 128 GB DDR4
3 year guarantee
Form factor: ATX
Socket: Intel® 1700
Chipset: Intel® B760
Memory: DIMM x 4 / Max RAM: 128 GB DDR4
3 year guarantee
Product code: 759669

This MSI motherboard lets you build a powerful PC based on a 14th gen Intel® processor. Its dual channel DDR4 RAM gives you double the bandwidth. So, your PC will run much faster and smoother, making it ideal for gaming, multitasking, and handling heavy software without any lag. Fancy a gaming rig or a content creator‘s workstation? Using the PCIe 4.0 expansion slot you can hook up most graphics cards for a truly high-end setup. Best thing about a PC is upgradeability. That's why this mother board is seriously tough – the MSI Steel Armor reinforcement means you're up for many years of heavy use.

Good to know

- There's an Intel® WiFi 6E chip built-in, so you can expect fast and reliable wireless connectivity
- 2.5G Ethernet port is great for lightning fast wired internet connection
- With the extended heatsink and M.2 Thermal Frozr Guards it's ready to keep cool even a high-performance setup
- Fits up to 4 gen 4.0 M.2 SSDs, each speeding up to 64 GB/s of data transfer
- EZ Debug LED helps you troubleshoot any issue quickly
- The USB 3.2 gen 2 can move data really fast when you connect it to external hard drives or USB sticks

Technical specifications for MSI B760 GAMING PLUS WIFI DDR4 LGA1700 Motherboard

OVERVIEW

Form factor
ATX
Chipset
Intel® B760
Socket
Intel® LGA1700
Processor models supported
14th/ 13th/ 12th generation Intel® Core™ / Pentium® Gold / Celeron® processors
Memory slots
4 x DDR4 (Max RAM: 128 GB)
Memory standard
DDR4
Cooling features
- Fan cooling
- Extended PWM heatsink
- M.2 Shield Frozr
- Plated VRM heatsink
- MOSFET thermal pads
Operating systems supported
- Windows 10
- Windows 11

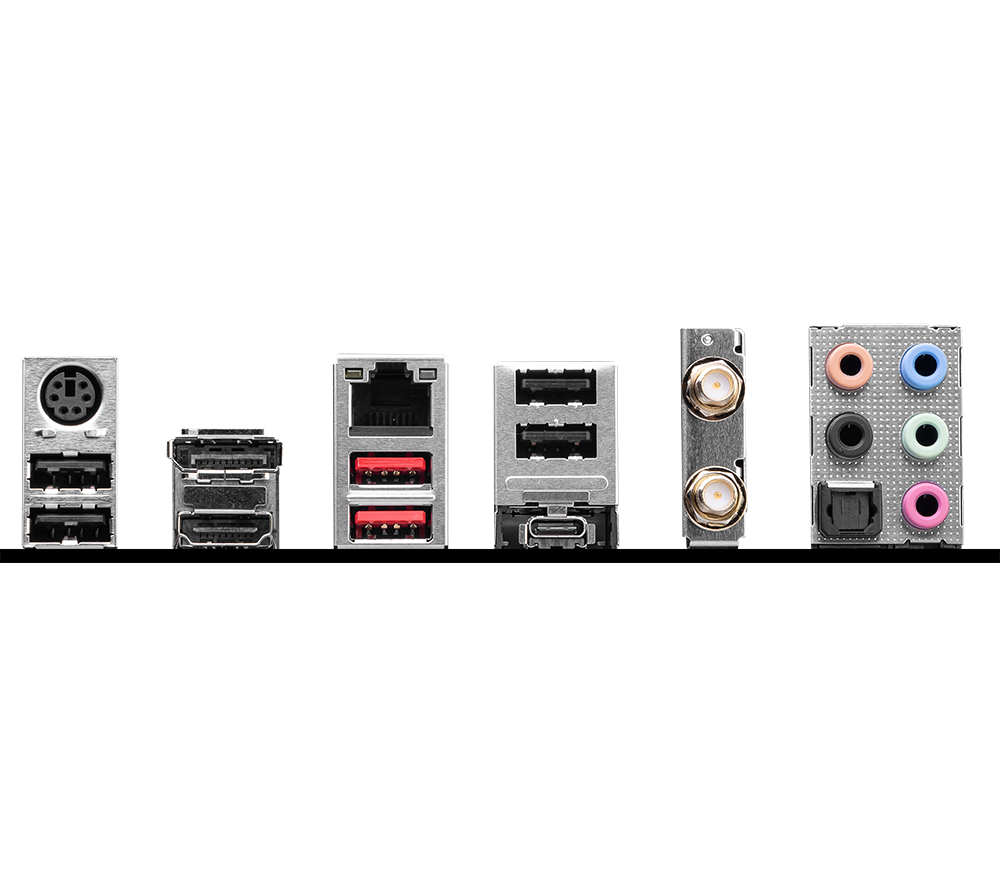

EXTERNAL CONNECTIVITY

Video output
- HDMI x 1
- DisplayPort x 1
LAN
- Intel® Wi-Fi 6E
- Bluetooth 5.3
- 2.5G Ethernet port x 1
Audio
Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Supports S/PDIF output
USB
- USB Type-C x 1
- USB 2.0 x 4
- USB 3.2 x 2
Expansion slots
- PCIe 4.0 (x16 slot) x 2
- PCIe 3.0 (x1 slot) x 3
Storage slots
- SATA x 4 (6 GB/s)
- M.2 Gen4 x 2 (64 Gb/s)
Cooling
- CPU fan 4-pin x 1
- Pump fan 4-pin x 1
- System fan 4-pin x 5
Power
- 24-pin ATX x 1
- 8-pin 12V ATX x 2
Other internal connections
- Front panel audio connector x 2
- Chassis intrusion connector x 1
- TPM module connector x 1
- Front Audio x 1
- Printer Port x 1
- Com Port x 1
- Addressable V2 RGB LED connector x 2
- RGB LED 4-pin x 1
- EZ Debug LED x 4
USB
- USB Type-C x 1
- USB 2.0 x 4
- USB Type-A x 2

GENERAL

Box contents
- MSI B760 GAMING PLUS WIFI LGA1150 Motherboard
- SATA cable x 1
- M.2 Screw / Standoff Set x 1
- WiFi antenna
- IO shield
- Quick installation guide
Weight
1.92 kg
Manufacturer’s guarantee
3 years
Dimensions
80 x 244 x 304 mm (H x W x D)
Colour
Black
