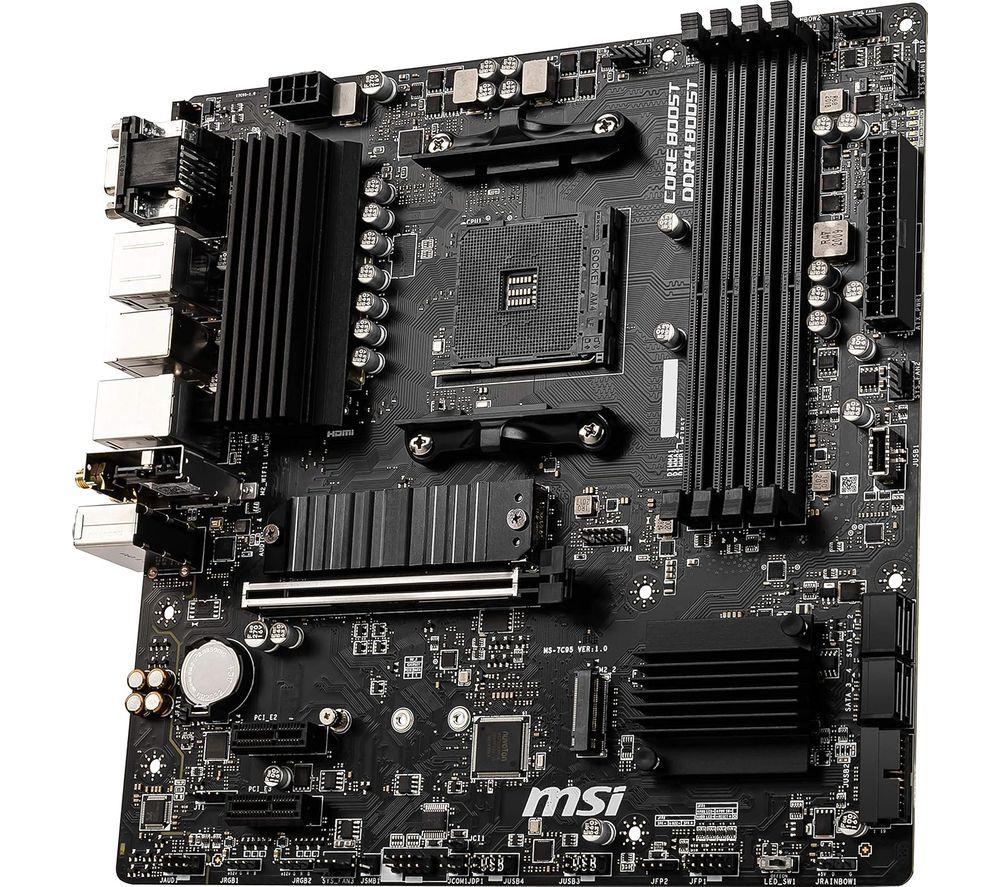

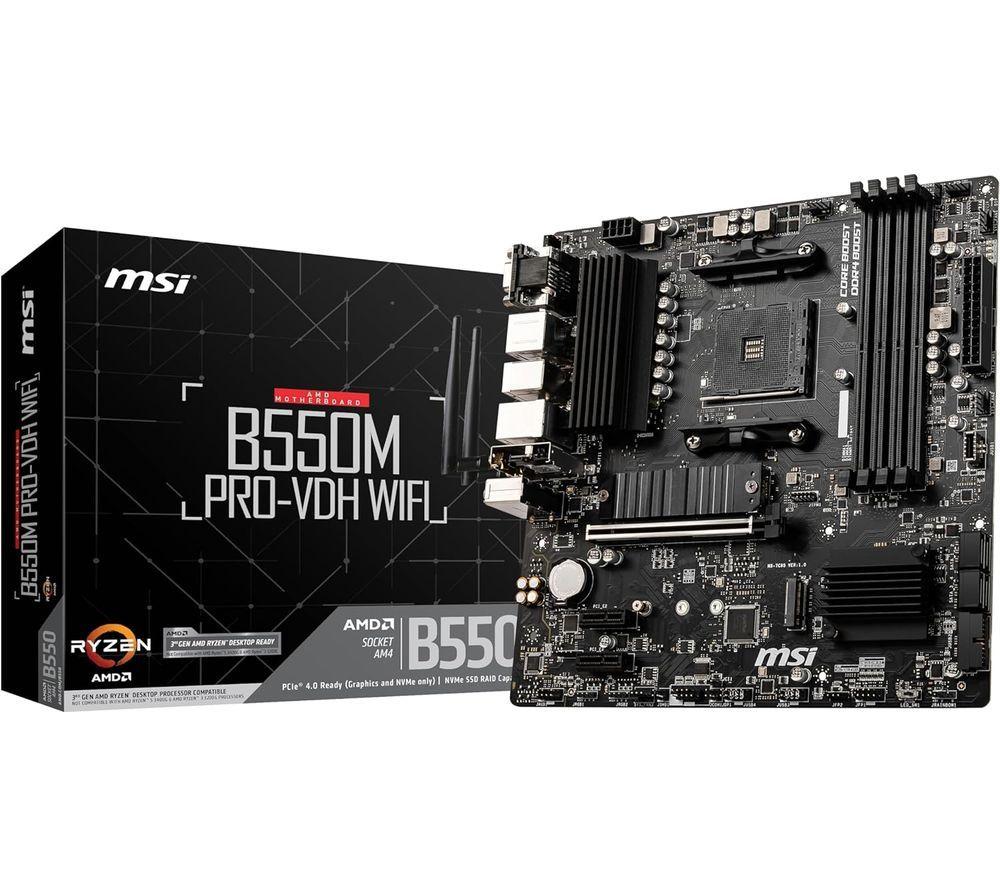

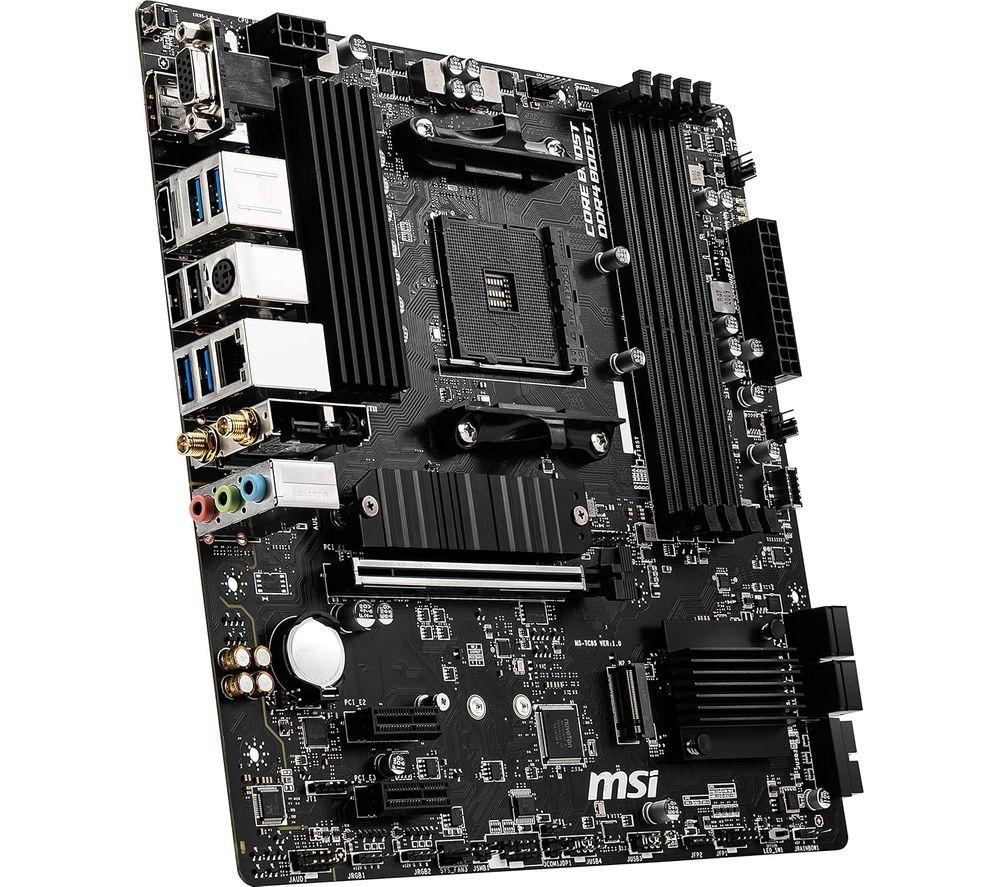

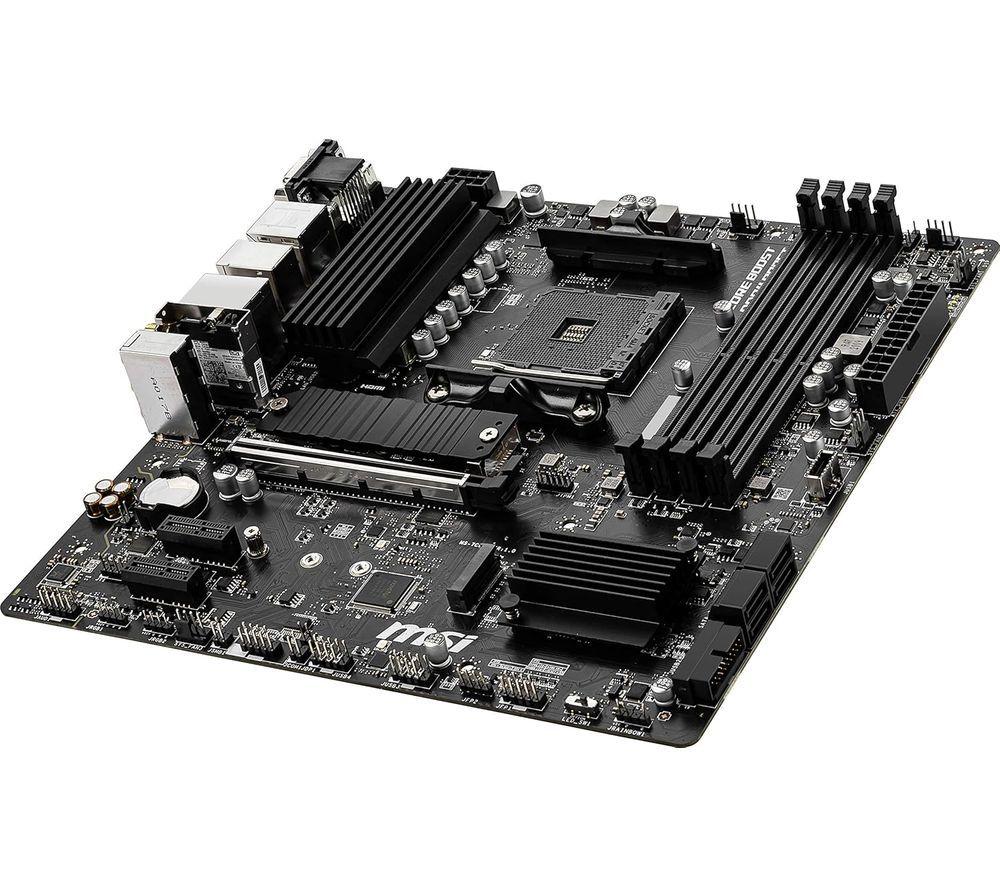

MSI B550M PRO-VDH AM4 Motherboard

MSI B550M PRO-VDH AM4 Motherboard

Item No. 10274890
4.2/5 18 reviews
Form factor: microATX
Socket: AMD AM4
Chipset: AMD B550
Memory: DIMM x 4 / Max RAM: 64 GB
3 year guarantee
Form factor: microATX
Socket: AMD AM4
Chipset: AMD B550
Memory: DIMM x 4 / Max RAM: 64 GB
3 year guarantee
Product code: 689328

Boost your system's performance with this motherboard's AMD B550 chipset and DDR4 RAM. Using the PCIe 4.0 expansion slot, you can hook up most graphic cards for a truly high-end setup.

Good to know

- MSI Steel Armor reinforcement means you're up for many years of heavy use
- It motherboard has some serious IO connectivity - there are 8 USB-A ports and a USB Type-C port on the back
- With the thickened copper PCB and M.2 Thermal Frozr Shield, it's ready to keep cool even in a high-performance setup
- Choose water or fan cooling - this motherboard has connectors for either

Technical specifications for MSI B550M PRO-VDH AM4 Motherboard

OVERVIEW

Form factor
microATX
Chipset
AMD B550
Socket
AMD AM4
Processor models supported
- 3rd Gen AMD Ryzen desktop processors
- Future AMD Ryzen processors with BIOS update
Memory slots
4 x DIMM (Max RAM: 64 GB)
Memory standard
DDR4
Cooling features
- Fan cooling
- Liquid cooling
- Total fan control
- Set up to 4 temperature targets
- M.2 Shield Frozr
Operating systems supported
Windows 10

EXTERNAL CONNECTIVITY

Video output
- HDMI x 1
- DisplayPort x 1
- VGA x 1
Audio
- Realtek ALC897 Codec
- 7.1-Channel High-Definition Audio
USB
USB 3.2 Gen 1 x 6
Expansion slots
- PCIe 4.0 (x16 slot) x 1
- PCIe 3.0 (x1 slot) x 2
Storage slots
- SATA x 4 (6 GB/s)
- M.2 Gen4 x 1 (64 GB/s)
- M.2 Gen3 x 1 (32 GB/s)
Cooling
- CPU fan 4-pin x 1
- CPU water-pump fan 4-pin x 1
- System fan 4-pin x 3
Buttons
- Flash BIOS
- Clear CMOS
Power
- 24-pin ATX x 1
- 8-pin ATX x 1
Other internal connections
Front panel audio connector x 1
System panel connector x 2
Serial port connector x 2
RGB LED connector x 2
RAINBOW LED connectors x 2
Chassis intrusion connector x 1
TPM pin header x 1
USB
- USB Type-C x 1
- USB 3.2 x 2
- USB 2.0 x 6

GENERAL

Box contents
MSI B550M PRO-VDH AM4 Motherboard
Weight
1.08 kg
Manufacturer’s guarantee
3 years
Dimensions
270 x 280 mm (H x W)
Colour
Black
