MSI B550 GAMING GEN3 AM4 Motherboard

MSI B550 GAMING GEN3 AM4 Motherboard

Item No. 10273259
4.4/5 5 reviews
Form factor: ATX
Socket: AMD AM4
Chipset: AMD B550
Memory: DIMM x 4 / Max RAM: 128 GB DDR4
3 year guarantee
Form factor: ATX
Socket: AMD AM4
Chipset: AMD B550
Memory: DIMM x 4 / Max RAM: 128 GB DDR4
3 year guarantee
Product code: 778258

- This ATX board is perfect for building a powerful PC around a 5000 Series AMD processor
- It supports PCIe 3.0 for powerful GPUs and SSDs and lets you plug in up to 128 GB of DDR4 RAM
- Gigabit Ethernet port is great for lightning fast wired internet connection
- You can update any BIOS within seconds using the USB key without a CPU or memory card, thanks to the Flash BIOS button
- EZ LED Control lets you quickly adjust the LED lights on your motherboard

Technical specifications for MSI B550 GAMING GEN3 AM4 Motherboard

OVERVIEW

Form factor
ATX
Chipset
AMD B550
Socket
AMD AM4
Processor models supported
AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors
Memory slots
4 x DIMM (Max RAM: 128 GB)
Memory standard
DDR4
Cooling features
- Fan cooling
- Extended PWM heatsink
Operating systems supported
Windows 10 or later

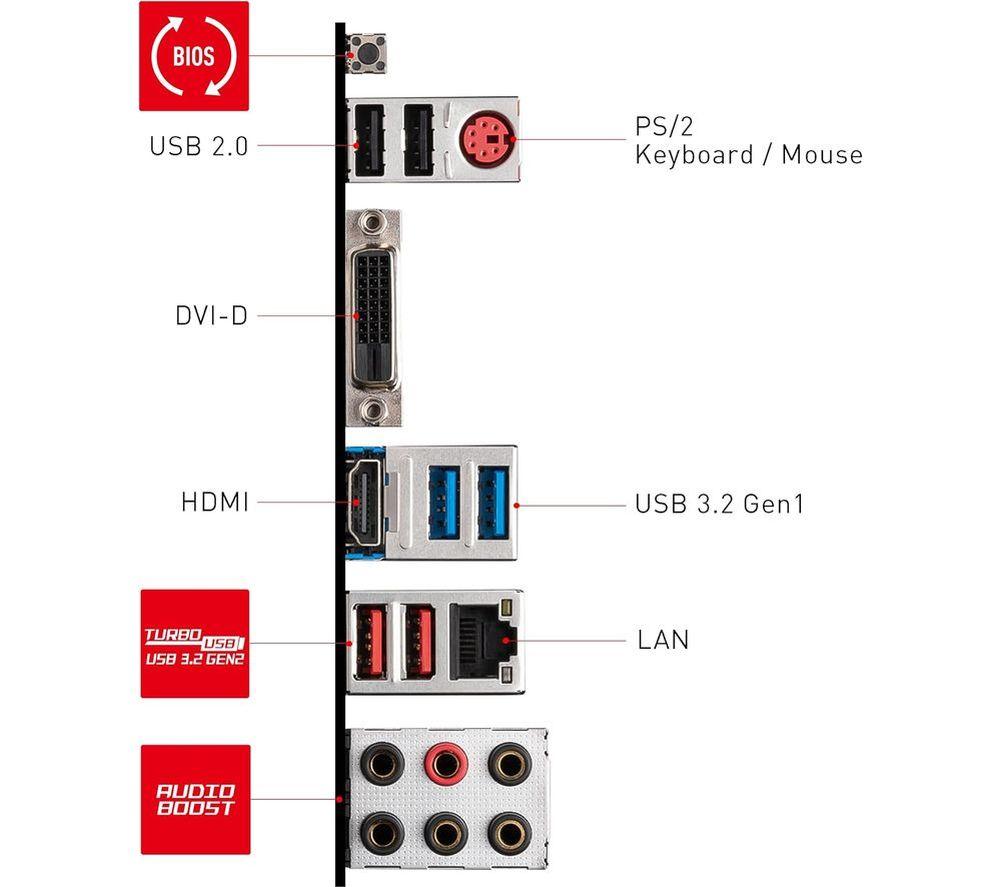

EXTERNAL CONNECTIVITY

Video output
- HDMI x 1
- DVI x 1
LAN
Gigabit Ethernet port x 1
Audio
- Realtek ALC897 Codec
- 7.1-Channel High-Definition Audio
USB
- USB 2.0 x 2
- USB 3.2 x 4

INTERNAL CONNECTIVITY

BIOS
AMIS BIOS
Expansion slots
- PCIe 3.0 (x16 slot) x 2
- PCIe 2.0 (x1 slot) x 4
Storage slots
- SATA x 6 (6 GB/s)
- M.2 Gen4 x 4
Cooling
- CPU fan 4-pin x 1
- Pump fan 4-pin x 1
- System fan 4-pin x 4
Buttons
- Power
- Reset
Power
- 24-pin ATX x 1
- 8-pin 12V ATX x 1
Other internal connections
- RGB LED 4-pin x 2
- EZ Debug LED x 4
USB
- USB 2.0 x 6
- USB 3.2 x 3

GENERAL

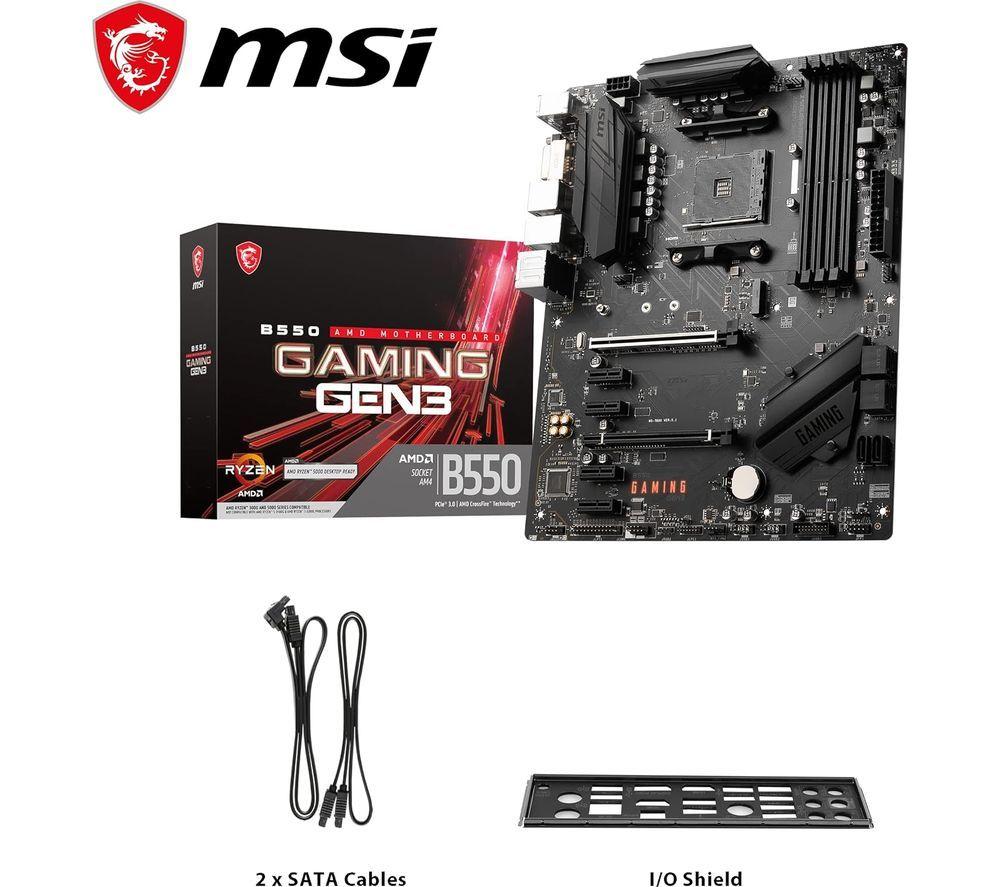

Box contents
- MSI MPG B550 GAMING GEN3 AM4 Motherboard
- SATA cables x 2
- MSI case badge
- I/O Shielding x 1
- M.2 screw x 1
- Support disc
- Quick installation guide
Weight
1.29 kg
Manufacturer’s guarantee
3 years
Dimensions
80 x 244 x 305 mm (H x W x D)
Colour
Black
