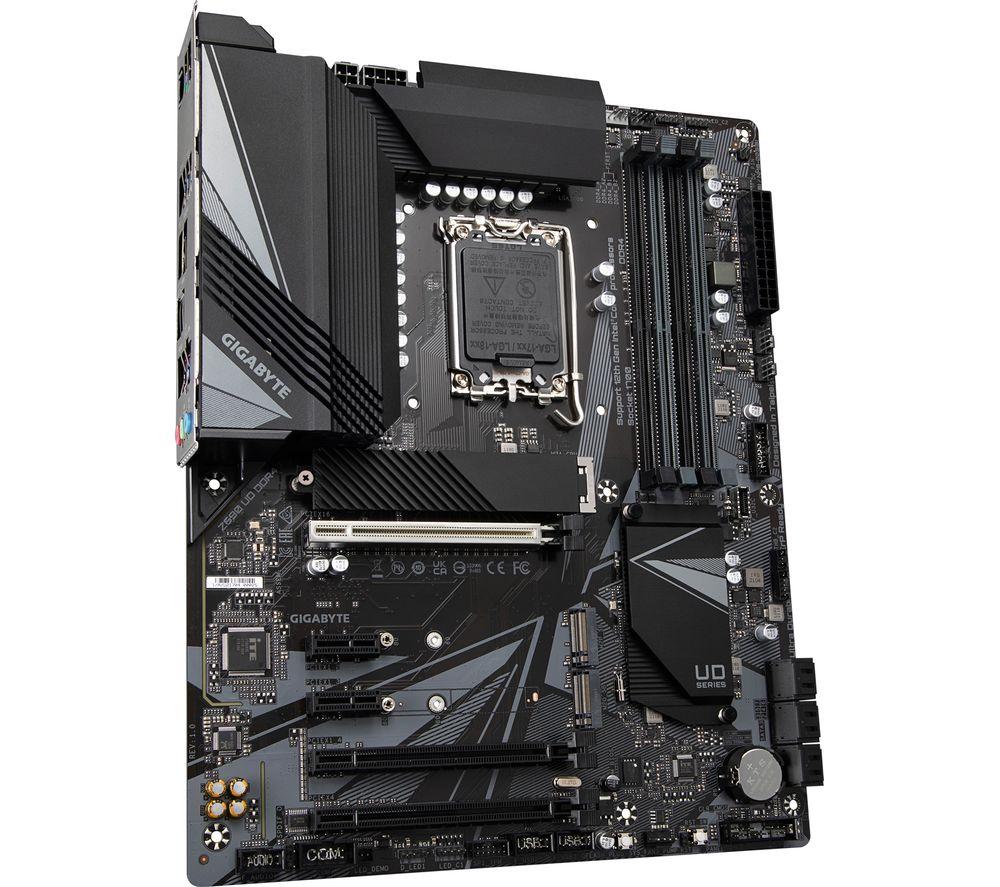

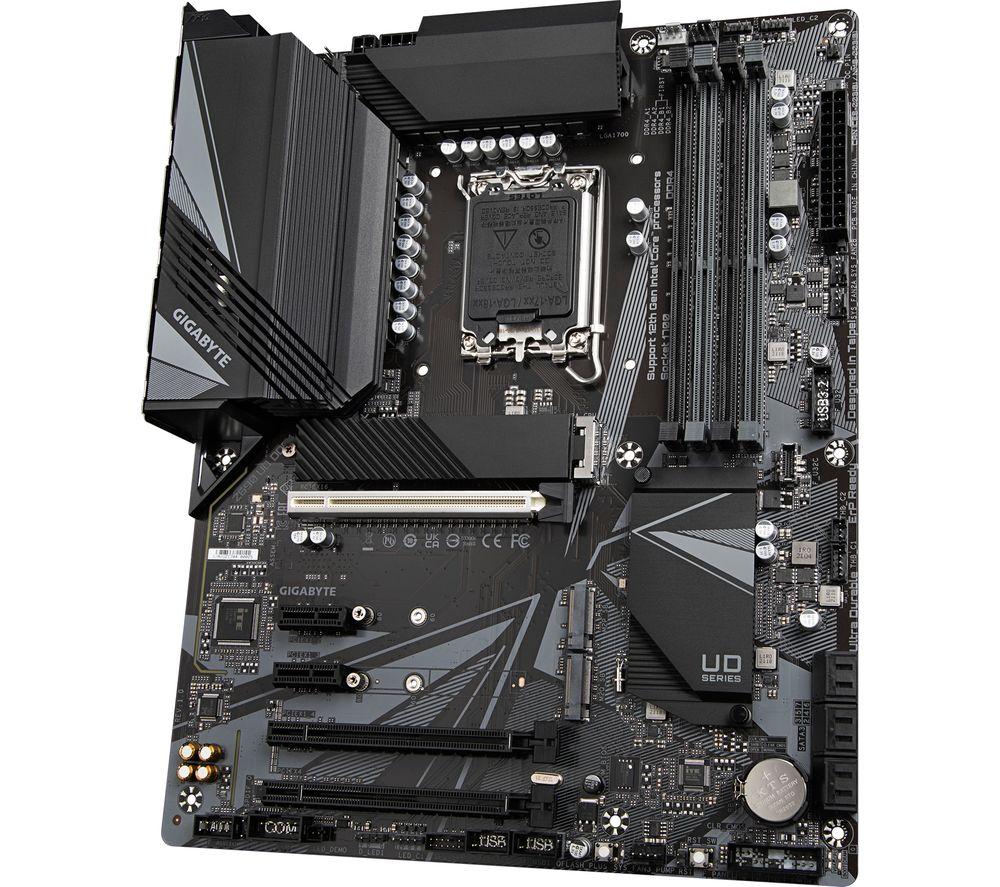

GIGABYTE Z690 UD DDR4 LGA1700 Motherboard

GIGABYTE Z690 UD DDR4 LGA1700 Motherboard

Item No. 10233081
4.8/5 15 reviews
Form factor: ATX
Socket: Intel® 1700
Chipset: Intel® Z690
Memory: DIMM x 4 / Max RAM: 128 GB DDR4
NVIDIA SLI x 2
AMD CrossFire x 4
3 year guarantee
Form factor: ATX
Socket: Intel® 1700
Chipset: Intel® Z690
Memory: DIMM x 4 / Max RAM: 128 GB DDR4
NVIDIA SLI x 2
AMD CrossFire x 4
3 year guarantee
Product code: 556644

Build a powerful PC based on a 12th gen Intel® Core™ processor with this Gigabyte motherboard.
What we love

- Made for the new 12th generation of Intel® Core™ processors
- With PCIe 5.0 you're ready for the upcoming generation of GPUs and other devices
- Fully Covered Thermal Design helps to keep the motherboard cool even with demanding components

Good to know

- The UD stands for Ultra Durable - this motherboard is made to last
- Fits up to three gen 4 M.2 SSDs, each speeding up to 64 GB/s of data transfer
- You can connect loads of LEDs to create unique custom lighting controlled by Gigabyte RGB Fusion 2.0
- Choose either water or fan cooling, this motherboard has connectors for both
- 2.5G Ethernet port is great for lightning fast wired internet connection
- Supports up to 128 GB DDR4 RAM, plenty even for the most powerful systems

Technical specifications for GIGABYTE Z690 UD DDR4 LGA1700 Motherboard

OVERVIEW

Form factor
ATX
Chipset
Intel® Z690
Socket
Intel® LGA1700
Processor models supported
12th generation Intel® Core™ processors
Memory slots
4 x DIMM (Max RAM: 128 GB)
Memory standard
DDR4
Cooling features
- Fan cooling
- Liquid cooling
- Fully covered MOSFET heatsinks
- M.2 heatsinks
Operating systems supported
- Windows 10
- Windows 11

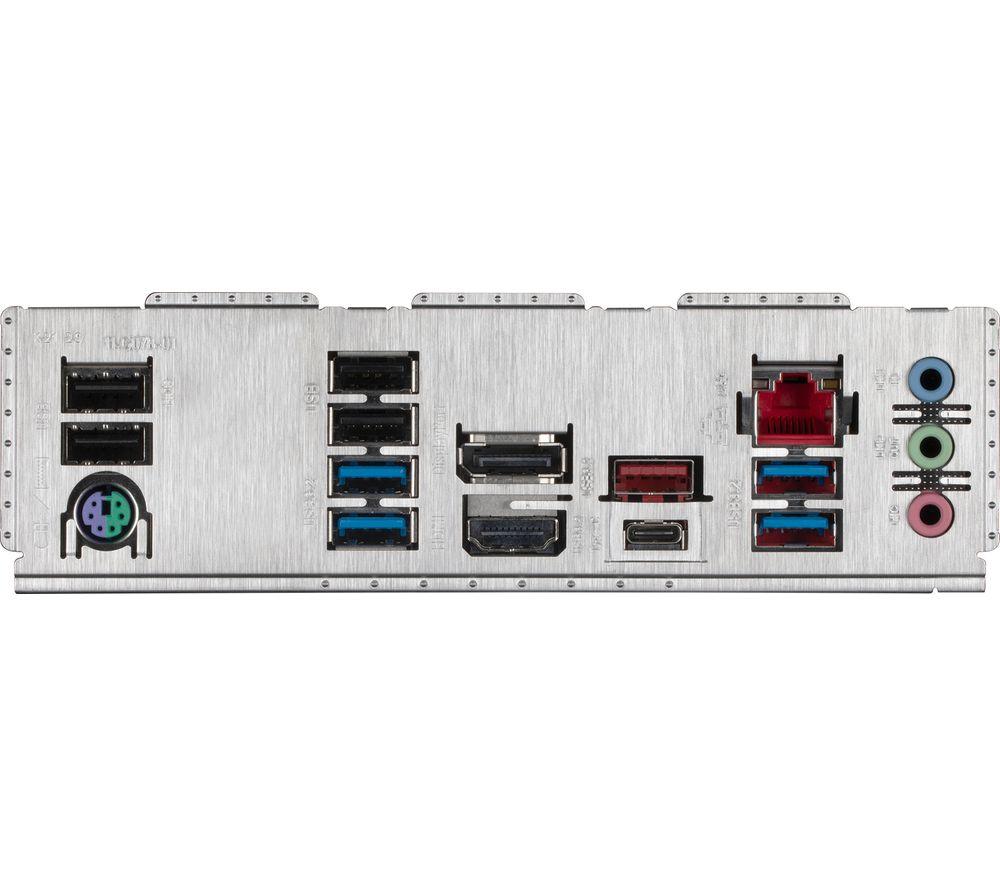

EXTERNAL CONNECTIVITY

Video output
- HDMI x 1
- DisplayPort x 1
LAN
2.5G Ethernet port x 1
Audio
- 3.5 mm jacks x 3
- S/PDIF out x 1
USB
- USB Type-C x 1
- USB 3.2 x 5
- USB 2.0 x 4

INTERNAL CONNECTIVITY

BIOS
UEFI AMI BIOS
Expansion slots
- PCIe 5.0 (x16 slot) x 1
- PCIe 3.0 (x16 slot) x 2
- PCIe 3.0 (x1 slot) x 2
Storage slots
- SATA x 6 (6 GB/s)
- M.2 Gen4 x 3 (64 GB/s)
- Intel® Optane™ ready
Cooling
- CPU fan header x 1
- CPU water cooling fan header x 1
- System fan headers x 3
- System fan / water cooling pump header x 1
Case
- Power LED x 1
- HDD LED x 1
- Power switch
- Reset switch
Buttons
- Reset button
- Q-Flash Plus
Power
- 24-pin ATX x 1
- 8-pin 12V ATX x 1
- 4-pin 12V ATX x 1
Sensors
- Voltage sensor
- Fan speed sensor
- Thermal sensor
- Water cooling flow rate sensor
- Fan fail warning sensor
Other internal connections
- Thunderbolt add-in card connectors x 2
- Addressable RGB LED strip headers x 2
- RGB LED strip header x 2
- SPI TPM header x 1
USB
- USB Type-C x 1
- USB 3.2 x 1
- USB 2.0 x 2

GENERAL

Box contents

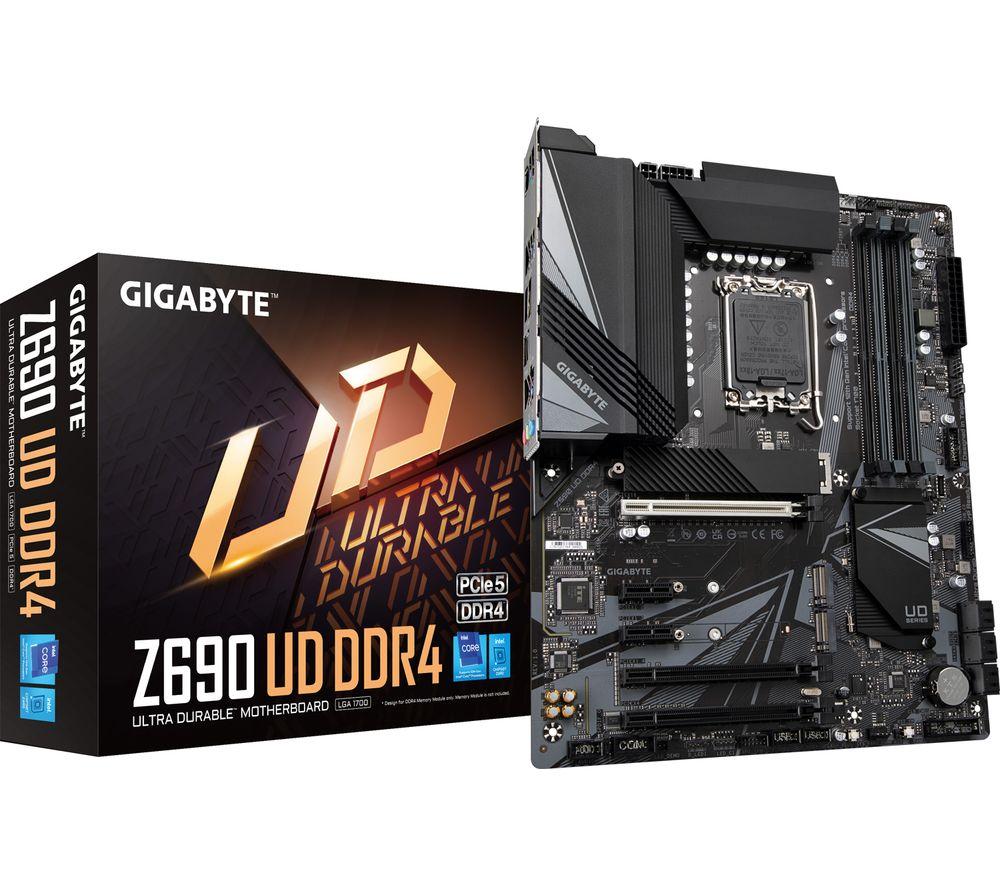

- Gigabyte Z690 UD DDR4 LGA1700 Motherboard
- SATA cables x 2
- M.2 screws
Weight
1 kg
Manufacturer’s guarantee
3 years
Dimensions
40 x 305 x 244 mm (H x W x D)
Colour
Black
