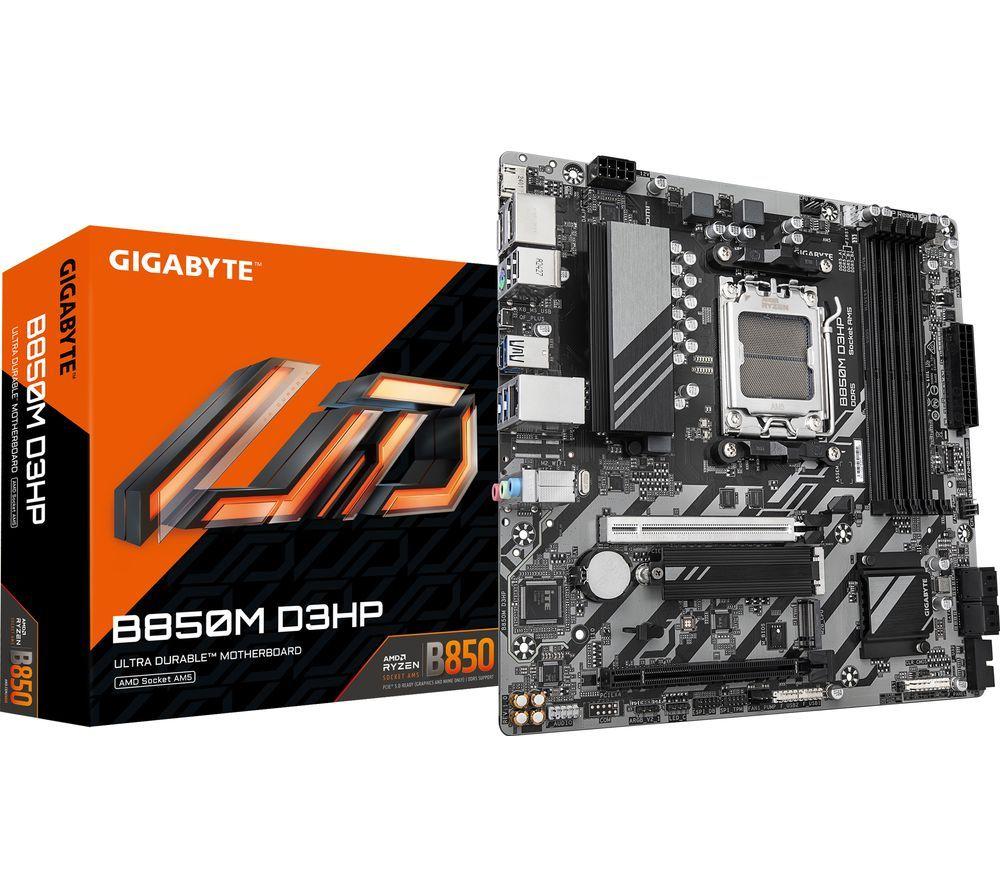

GIGABYTE B850M DS3HP AM5 Motherboard

GIGABYTE B850M DS3HP AM5 Motherboard

Item No. 10277363
1/5 1 reviews
Form factor: microATX
Socket: AMD AM5
Chipset: AMD B850
Memory: DIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee
Form factor: microATX
Socket: AMD AM5
Chipset: AMD B850
Memory: DIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee
Product code: 613506

If you want to build a proper machine, you need a solid base. This Gigabyte motherboard is ready for 9000 Series AMD Processors. It's got a X3D Turbo Mode, which lets you squeeze out max FPS with a single button. You can plug in up to 256 GB of DDR5 RAM and blaze through your workflows. And if you're storing lots of data, dual M.2 slots make it easy to add SSDs for super-speed access.

Good to know

- With PCIe 5.0 you can have high-speed storage that won't make you wait around
- RGB LED and addressable RGB headers you'll have plenty of customisation options
- With 2.5 GB Ethernet you'll have super-fast and rock-solid internet connection

Technical specifications for GIGABYTE B850M DS3HP AM5 Motherboard

OVERVIEW

Form factor
Micro ATX
Chipset
AMD B850
Socket
AMD AM5
Processor models supported
AMD Ryzen 7000, 8000 & 9000 Series processors
Memory slots
4 x DIMM (Max RAM: 256 GB)
Memory standard
DDR5
Cooling features
Fan cooling
Operating systems supported
Windows 10 or later

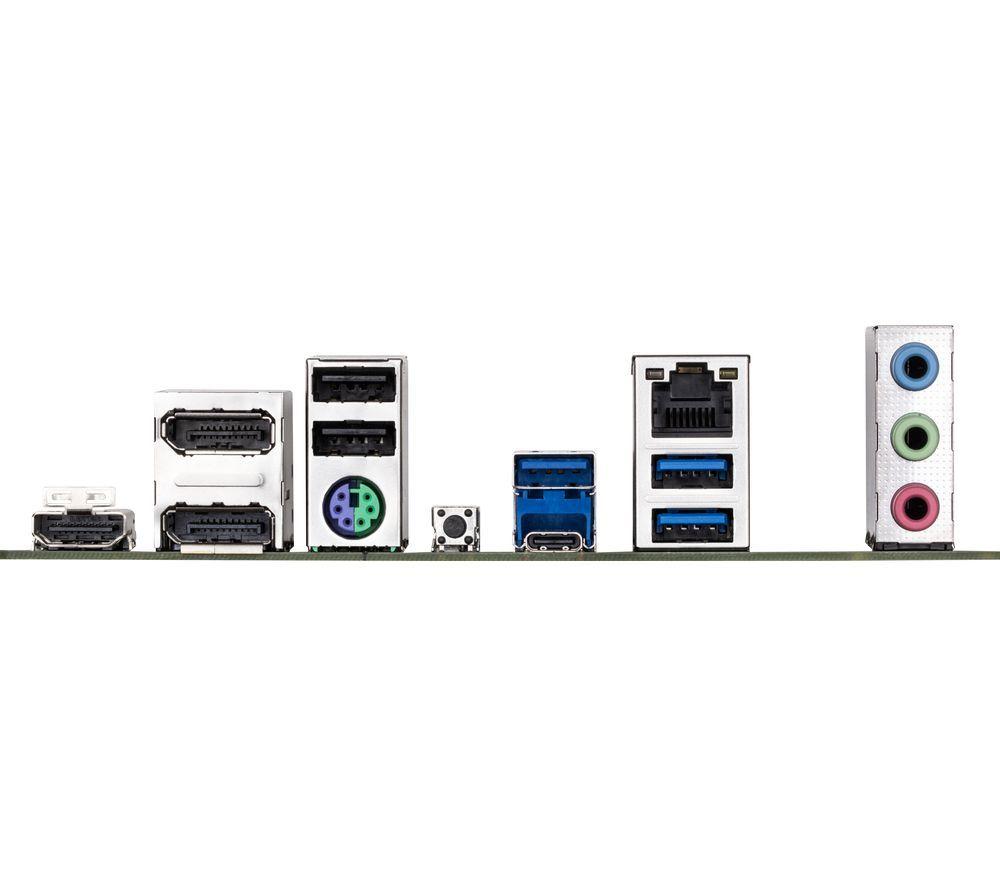

EXTERNAL CONNECTIVITY

Video output
- HDMI x 1
- DisplayPort x 2
LAN
2.5 GBe port x 1
Audio
3.5 mm jack x 3
USB
- USB Type-C x 1
- USB 2.0 / 1.1 x 4
- USB 3.2 Gen 1 x 4
- USB 3.2 Gen 2 Type-A x 1
Other external connections
PS/2 keyboard/mouse port

INTERNAL CONNECTIVITY

BIOS
- UEFI AMI BIOS
- 256 Mbit flash x 1
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Expansion slots
- PCIe 3.0 (x16) x 1
- PCIe 5.0 (x16) x 1
- PCIe 4.0 (x8) x 1
- PCIe 4.0 (x4) x 1
Storage slots
- SATA x 4
- M.2 x 2
Cooling
- CPU fan header x 1
- CPU fan / water cooling pump header x 1
- System fan headers x 1
- System fan / water cooling pump headers x 1
Case
- Power LED x 1
- HDD LED x 1
Buttons
- Power button
- Reset button
- Reset jumper
- Q-Flash Plus
- Clear CMOS jumper
Power
- 24-pin EATX x 1
- 8-pin ATX x 1
Sensors
- Thermal sensor
- Fan speed sensor
Other internal connections
- Addressable LED RGB strip headers x 3
- M.2 Socket 3 connectors x 2
- Trusted Platform Module header x 1
USB
- USB Type-C x 1
- USB 3.2 Gen 1 x 1
- USB 2.0 / 1.1 x 2

GENERAL

Box contents
- Gigabyte B850M D3HP AM5 Motherboard
- SATA cable X 1
- I/O shield
- M.2 rubber pads
- User manual
Weight
750 g
Manufacturer’s guarantee
3 years
Dimensions
54 x 265 x 265 mm (H x W x D)
Colour
Black
