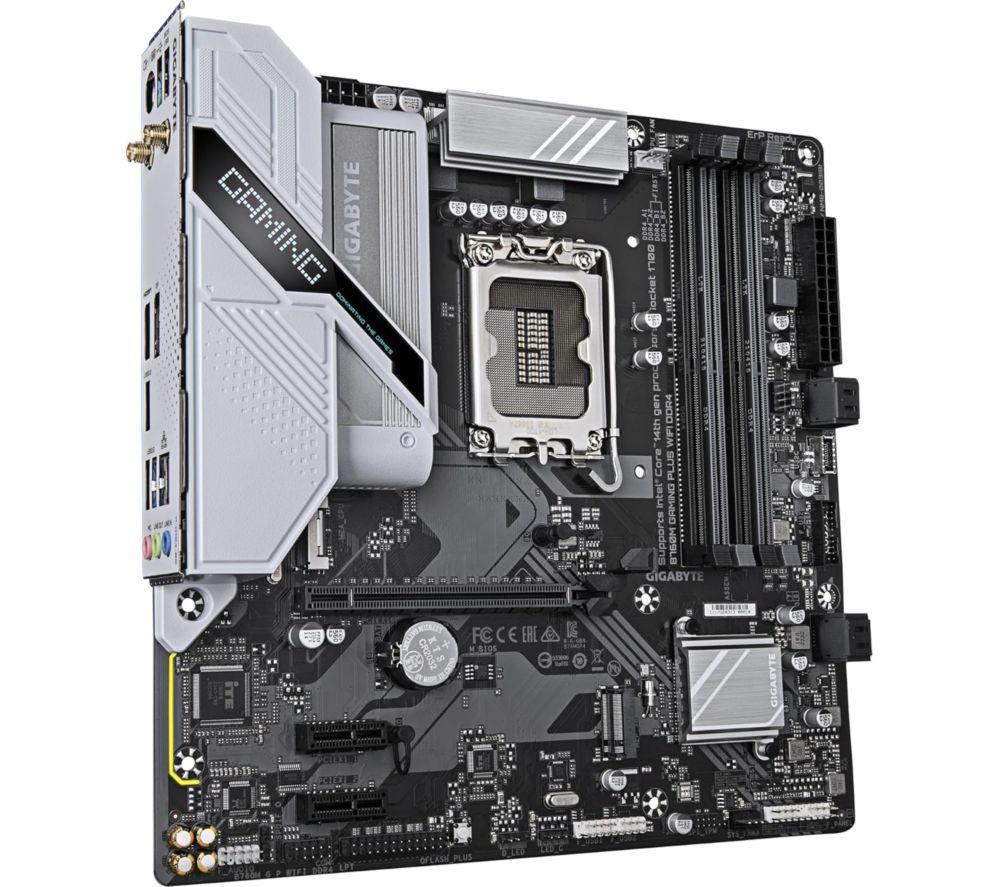

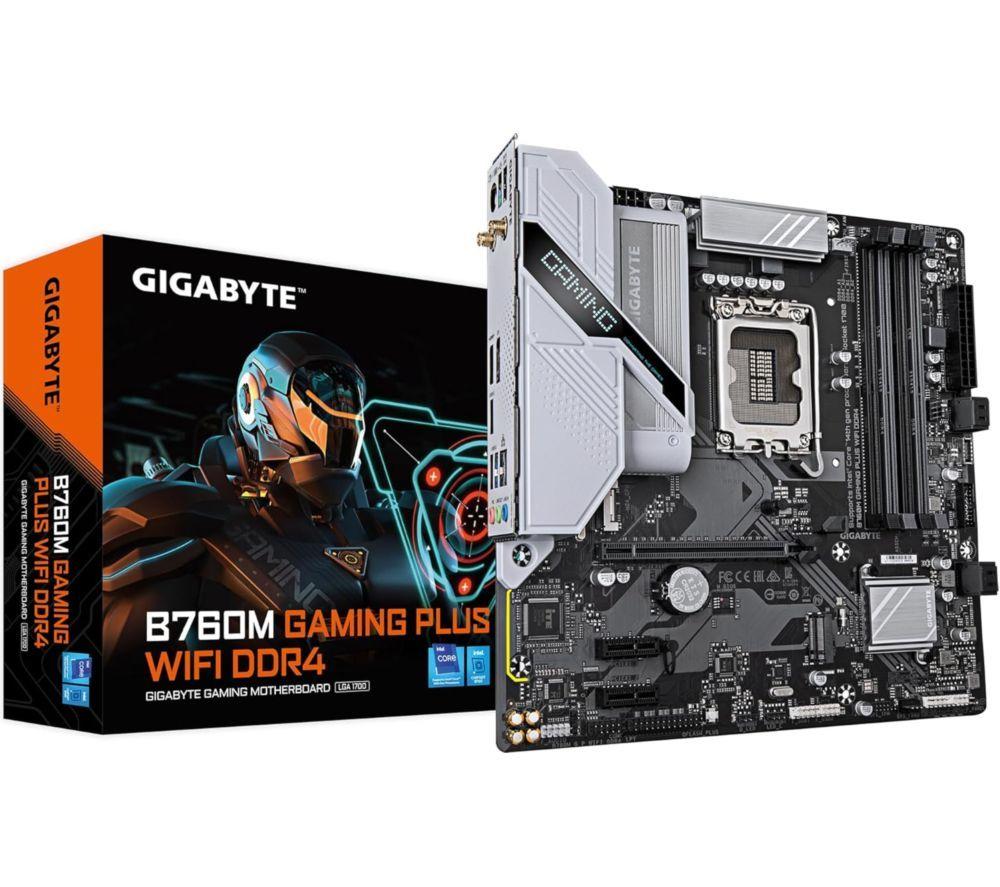

GIGABYTE B760M GAMING PLUS WIFI B760 LGA1700 Motherboard

GIGABYTE B760M GAMING PLUS WIFI B760 LGA1700 Motherboard

Item No. 10289032
Form factor: microATX
Socket: Intel® 1700
Chipset: Intel® B760 Express
Memory: DIMM x 4 / Max RAM: 128 GB DDR4
3 year guarantee
Form factor: microATX
Socket: Intel® 1700
Chipset: Intel® B760 Express
Memory: DIMM x 4 / Max RAM: 128 GB DDR4
3 year guarantee
Product code: 713512

If you want to build a proper compact machine, you need a solid base. This Gigabyte B760M GAMING PLUS WIFI DDR4 motherboard is ready for Intel® Core™ 14th, 13th, and 12th Gen processors. You can plug in up to 128 GB of DDR4 RAM and blaze through your workflows. And you can forget about slow loading. The PCIe 4.0 M.2 SSD slots let you install blazing fast drives for quick boots and snappy app launches.

Good to know

- With XMP support, you can overclock compatible DDR4 RAM up to 5333 MT/s, giving you extra performance when you need it
- The Smart Fan 6 system keeps your motherboard cool even with high-end components, thanks to multiple temperature sensors and hybrid fan headers
- To make building a PC easier, it's got user-friendly EZ-Latch features for quick installation of M.2 drives and PCIe cards
- Built-in Wi-Fi 6 means you can go wireless without sacrificing speed or stability
- Connect loads of LEDs to create unique custom lighting controlled by Gigabyte RGB Fusion, with both RGB and addressable LED headers
- With Gigabit Ethernet, you'll have a super-fast and rock-solid internet connection for gaming, streaming, and downloads

Technical specifications for GIGABYTE B760M GAMING PLUS WIFI B760 LGA1700 Motherboard

OVERVIEW

Form factor
microATX
Chipset
Intel® B760 Express
Socket
Intel® LGA1700
Processor models supported
Intel® Core™ 14th/ 13th/ 12th generation / Pentium® Gold / Celeron® processors
Memory slots
4 x DIMM (Max RAM: 128 GB)
Memory standard
DDR4
Cooling features
- Fan cooling
- Liquid cooling
Operating systems supported
Windows 10 or later

EXTERNAL CONNECTIVITY

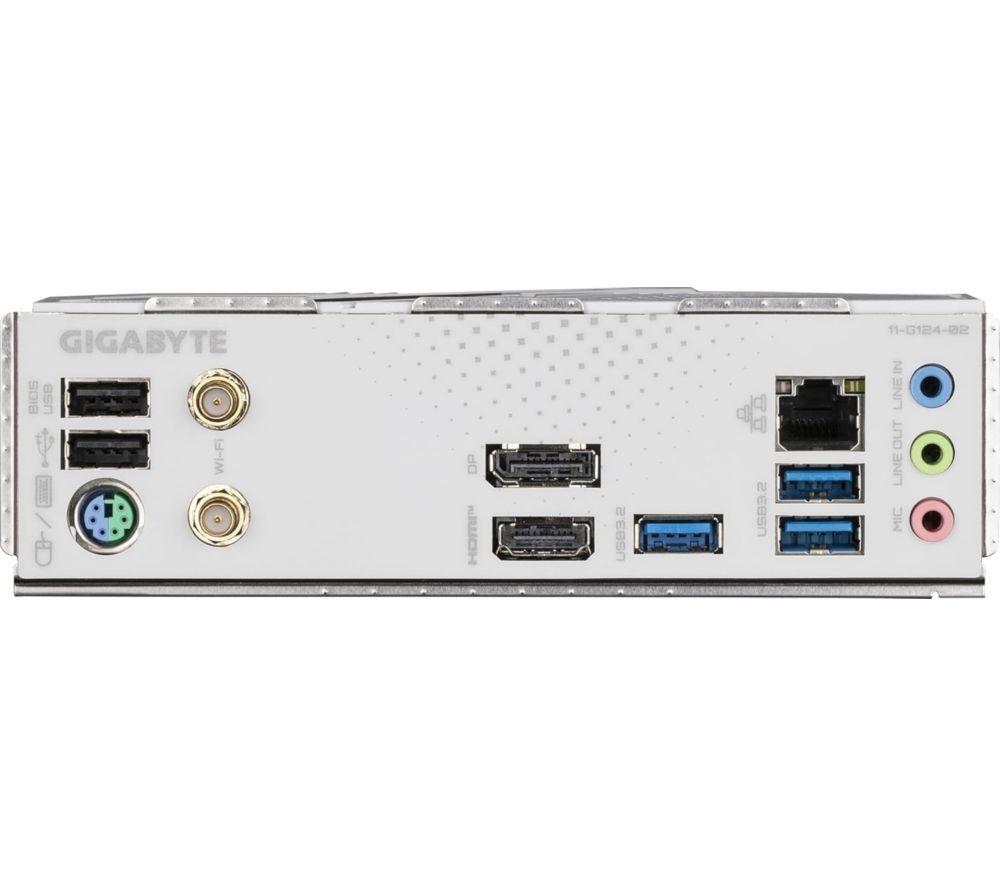

Video output
- HDMI x 1
- DisplayPort x 1
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Audio
- Realtek® ALC897 Codec 7.1-Channel High-Definition Audio
- Supports S/PDIF output
USB
- USB Type-C x 1
- USB 3.2 x 5
- USB 2.0 x 6

INTERNAL CONNECTIVITY

BIOS
- 128 Mbit flash x 1
- AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Expansion slots
- PCIe 4.0 (x16) x 1
- PCIe 3.0 (x1) x 2
Storage slots
- SATA x 4 (6 GB/s)
- M.2 x 2
Case
- Power LED
- HDD LED
- Reset jumper
Buttons
- Q-Flash Plus
- Clear CMOS
- Reset
Power
- 24-pin ATX x 1
- 8-pin ATX x 1
Sensors
- Voltage
- Temperature
- Fan speed
- Water cooling flow rate
Other internal connections
- RGB LED header
- Addressable LED header
- TPM header
- Serial port
- Parallel port
- SPDIF out
USB
- USB Type-C x 1
- USB 3.2 x 1
- USB 2.0 x 1

GENERAL

Box contents
- Gigabyte B760M GAMING PLUS WIFI B760 LGA1700 Motherboard
- SATA cables x 2
- Antenna x 1
- Manual
Software included
- Norton® Internet Security (OEM version)
- LAN bandwidth management software
Weight
1.14 kg
Manufacturer’s guarantee
3 years
Dimensions
70 x 270 x 270 mm (H x W x D)
Colour
Black
