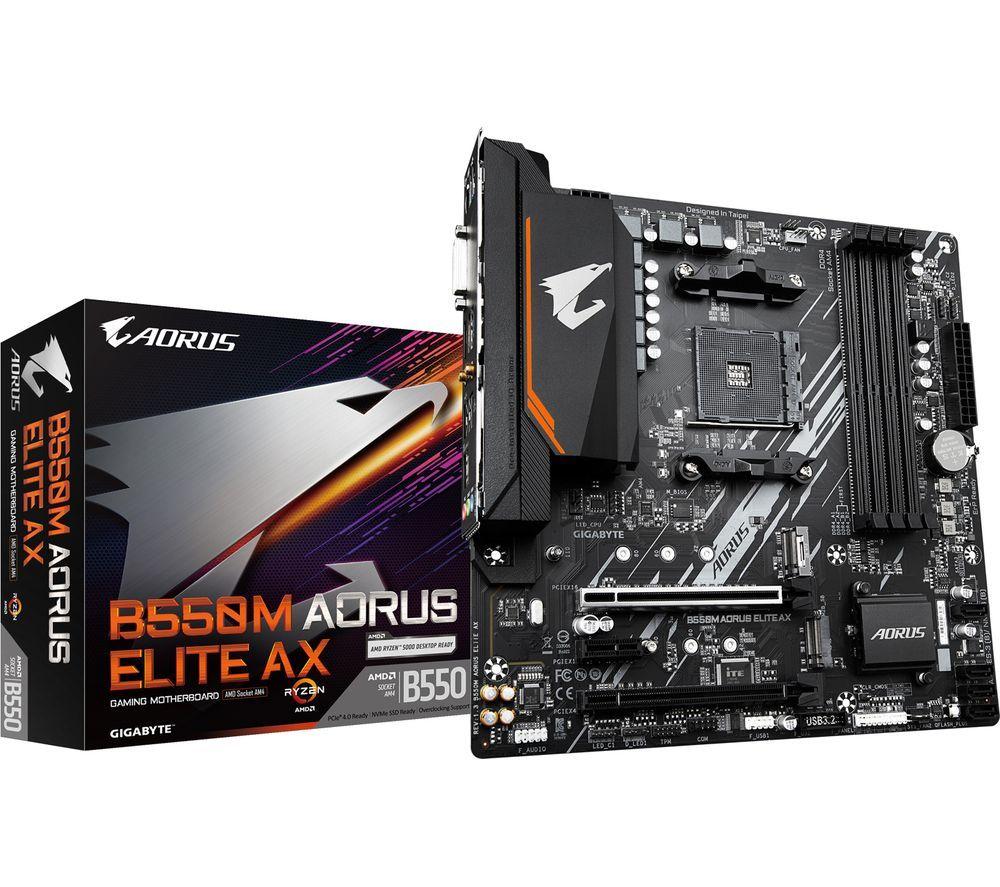

Name: GIGABYTE Aorus Elite AX B550 AM4 Motherboard
Brand: GIGABYTE
SKU: 10265892
Price: 169.00 EUR
Availability: InStock

GIGABYTE Aorus Elite AX B550 AM4 Motherboard image number 0

GIGABYTE Aorus Elite AX B550 AM4 Motherboard image number 1

GIGABYTE Aorus Elite AX B550 AM4 Motherboard image number 2

Form factor: ATX

Socket: AMD AM4

Chipset: AMD B550

Memory: DIMM x 4 / Max RAM: 128 GB DDR4

3 year guarantee

€169.00

Save for later

Check stock in your area

Checking Stock...

What you’ll need to make it even better

Add Processors

4.90 out of 5 stars

4.9/5 8 reviews

€419.00

Add PC fans and coolers

4.40 out of 5 stars

4.4/5 124 reviews

€8.99

Form factor: ATX

Socket: AMD AM4

Chipset: AMD B550

Memory: DIMM x 4 / Max RAM: 128 GB DDR4

3 year guarantee

Product information

Product code: 799779

If you want to build a proper machine, you need a solid base. This Aorus Elite Motherboard will let you squeeze every bit of power from your AMD Ryzen 3000, 4000 & 5000 Series processors. With the 5+3 phases pure digital VRM solution you can safely overclock the CPU and push it to the max. There are 4 DIMM slots allowing you to plug in up to 128 GB DDR4 RAM - that's plenty even for the most powerful systems. And you can forget about slow loading. The three gen 4 M.2 SSD and one gen 5 M.2 SSD slots let you install blazing-fast drives.

Good to know

- The Advanced Thermal Design keeps your motherboard cool even with high-end components
- Choose either water or fan cooling, this motherboard lets you do both
- Connect loads of LEDs to create unique custom lighting controlled by Gigabyte RGB Fusion 2.0
- With a 2.5 GB Ethernet, WiFi 6E, and 2 antenna connectors, you'll get super-fast internet and a stronger signal

Specifications

Technical specifications for GIGABYTE Aorus Elite AX B550 AM4 Motherboard

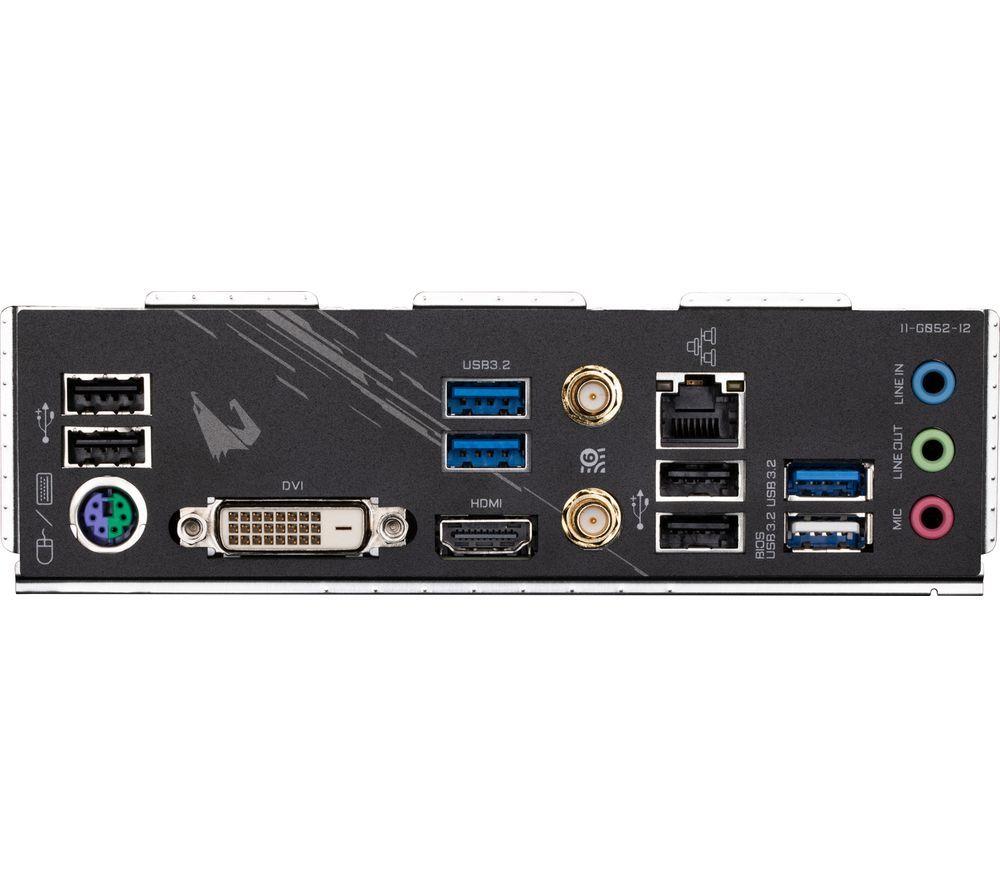

EXTERNAL CONNECTIVITY

Video output

- HDMI x 1
- DVI x 1

LAN

- 2.5G Ethernet port x 1
- SMA Antenna connectors (2T2R) x 2

Audio

3.5 mm jack x 3

USB

CPU:

- USB 3.2 x 4

Chipset:

- USB 3.2 x 2
- USB 2.0 x 6

Other external connections

WiFi 6E

INTERNAL CONNECTIVITY

BIOS

UEFI AMI BIOS

Expansion slots

- PCIe 4.0 (x16) x 1
- PCIe 3.0 (x16) x 1
- PCIe 3.0 (x1) x 1

Storage slots

- SATA x 4 (6 GB/s)
- M.2 x 2

Cooling

- CPU fan header x 1
- System fan headers x 2

Case

- Power LED x 1
- HDD LED x 1
- Power switch x 1
- Reset switch x 1

Buttons

- Power button
- Reset button
- Q-Flash Plus

Power

- 24-pin ATX x 1
- 8-pin ATX x 1

Sensors

- Voltage sensor
- Temperature sensor
- Fan speed sensor
- Thermal sensor
- Overheating sensor
- Fan fail warning sensor

Other internal connections

- Addressable LED strip headers x 2
- RGB LED strip header x 2
- CPU cooler LED strip header x 1
- SPI TPM header x 1
- Serial port header x 1

USB

- USB 3.0 x 4
- USB 2.0 x 4

GENERAL

Box contents

- Aorus Elite AX B550 AM4 Motherboard
- SATA cables
- WiFi antenna
- User manual

Weight

735 g

Manufacturer’s guarantee

3 years

Dimensions

40 x 244 x 244 mm (H x W x D)

Colour

Black

OVERVIEW

Form factor

ATX

Chipset

AMD B550

Socket

AMD AM4

Processor models supported

AMD Ryzen 3000, 4000 & 5000 Series processors

Memory slots

4 x DIMM (Max RAM: 128 GB)

Memory standard

DDR5

Multi-GPU support

AMD CrossFire x 2

Cooling features

Enlarged MOSFET Heatsink

Operating systems supported

Windows 10 or later
