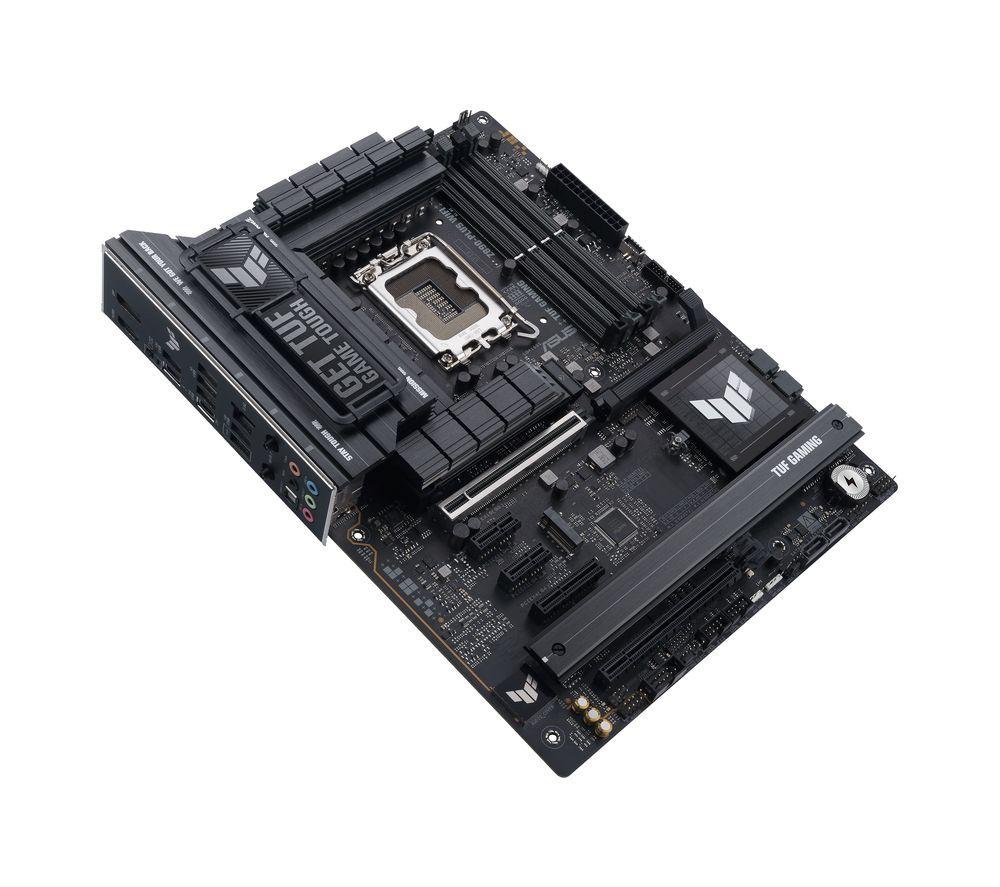

ASUS TUF Gaming Z890-PLUS WIFI LGA1851 Motherboard

ASUS TUF Gaming Z890-PLUS WIFI LGA1851 Motherboard

Item No. 10272563
Form factor: ATX
Socket: Intel® 1851
Chipset: Intel® Z890
Memory: DIMM x 4 / Max RAM: 192 GB DDR5
3 year guarantee
€469.00
Saved items limit reached (20/20)
To save this item, try removing something else from your Saved items.
Save for later
Check stock in your area
store Delivery Fast nationwide delivery Checking Stock...
store collection Free delivery to store in 3-5 working days Checking Stock...

Delivery to:

Select your preferred delivery option at checkout
Change location

Location selected:

Change location

What you’ll need to make it even better

Form factor: ATX
Socket: Intel® 1851
Chipset: Intel® Z890
Memory: DIMM x 4 / Max RAM: 192 GB DDR5
3 year guarantee
Product code: 748039

This ATX board from ASUS is designed to handle powerful components. It's ready for Series 2 Intel® Core™ Ultra Processors, so it's designed for the future of AI computing. You can plug in up to 192 GB of DDR5 RAM and blaze through your workflows. And with PCIe 5.0 and PCIe 4.0 you can have high-speed storage that won't make you wait around. Got questions? Just ask the ASUS AI Advisor – this AI tech uses natural language to help guide you through PC hardware.

Good to know

AI overclocking pushes your CPU to the limit when needed - and you don't have to do anything
- It's got AI Cooling II, so you can manage the thermals and acoustics with just a click of a button
- Boost your connection with AI Networking II, which lets you switch channel to get the best speeds
- Find just the right spot for your WiFi antenna with Armoury Crate's Direction Finder
GameFirst monitors network performance to help to reduce latency
- Its built-in NPU speeds up AI tasks like cooling and performance tweaks

Technical specifications for ASUS TUF Gaming Z890-PLUS WIFI LGA1851 Motherboard

OVERVIEW

Form factor
ATX
Chipset
Intel® Z890
Socket
Intel® LGA1851
Processor models supported
Intel® Core™ Ultra Processors (series 2)
Memory slots
4 x DIMM (Max RAM: 192 GB)
Memory standard
DDR5
Cooling features
Fan Xpert 4 (with AI Cooling II)
Operating systems supported
Windows 11

EXTERNAL CONNECTIVITY

Video output
- HDMI x 1
- DisplayPort x 1
LAN
- Intel® 2.5Gb Ethernet x 1
- ASUS LANGuard
Audio
3.5 mm jack x 5
USB
- USB Type-C x 2
- USB 3.2 x 8
- USB 2.0 x 2
Other external connections
- WiFi module x 1
- S/PDIF x 1

INTERNAL CONNECTIVITY

BIOS
- UEFI AMI BIOS
- Flash ROM (256 MB)
Expansion slots
- PCIe 5.0 (x16) x 1
- PCIe 4.0 (x16) x 1 (support x4 mode)
- PCIe 4.0 (x4) x 1
- PCIe 4.0 (x1) x 2
Storage slots
- SATA x 4 (6 GB/s)
- M.2 x 4
Cooling
- 4-pin CPU Fan header x 1
- 4-pin CPU OPT Fan header x 1
- 4-pin AIO Pump header x 1
- 4-pin Chassis Fan headers x 4
Case
- Power LED x 1
- QLED x 1
Buttons
- Power
- Clear CMOS
- BIOS FlashBack
Power
- 24-pin main power x 1
- 8-pin 12 V power x 2
Other internal connections
- Addressable Gen 2 headers x 3
- Aura RGB header x 1
- Chassis Intrusion header x 1
- Clear CMOS header x 1
- COM Port header x 1
- Front Panel Audio header (F_AUDIO) x 1
- S/PDIF Out header x 1
- 10-1 pin System Panel header x 1
USB
- USB Type-C x 2
- USB 3.2 x 8
- USB 2.0 x 2

GENERAL

Box contents
- ASUS TUF Gaming Z890-PLUS WIFI LGA1851 Motherboard
- SATA 6Gb/s cables x 2
- ASUS WiFi Q-Antenna x 1
- M.2 Q-Slide package x 1
- M.2 rubber packages x 1
- Screw package for M.2 SSD x 1
- TUF GAMING sticker x 1
- Documentation
- Quick start guide
Software included
- Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- ASUS GlideX
- TUF GAMING CPU-Z
- TurboV Core
- Norton 360 for Gamers (60 Days Free Trial)
- WinRAR (40 Days Free Trial)
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS MyHotkey
- FlexKey
- NPU Boost
Weight
1.67 kg
Manufacturer’s guarantee
3 years
Dimensions
50 x 244 x 305 mm (H x W x D)
Colour
Black
