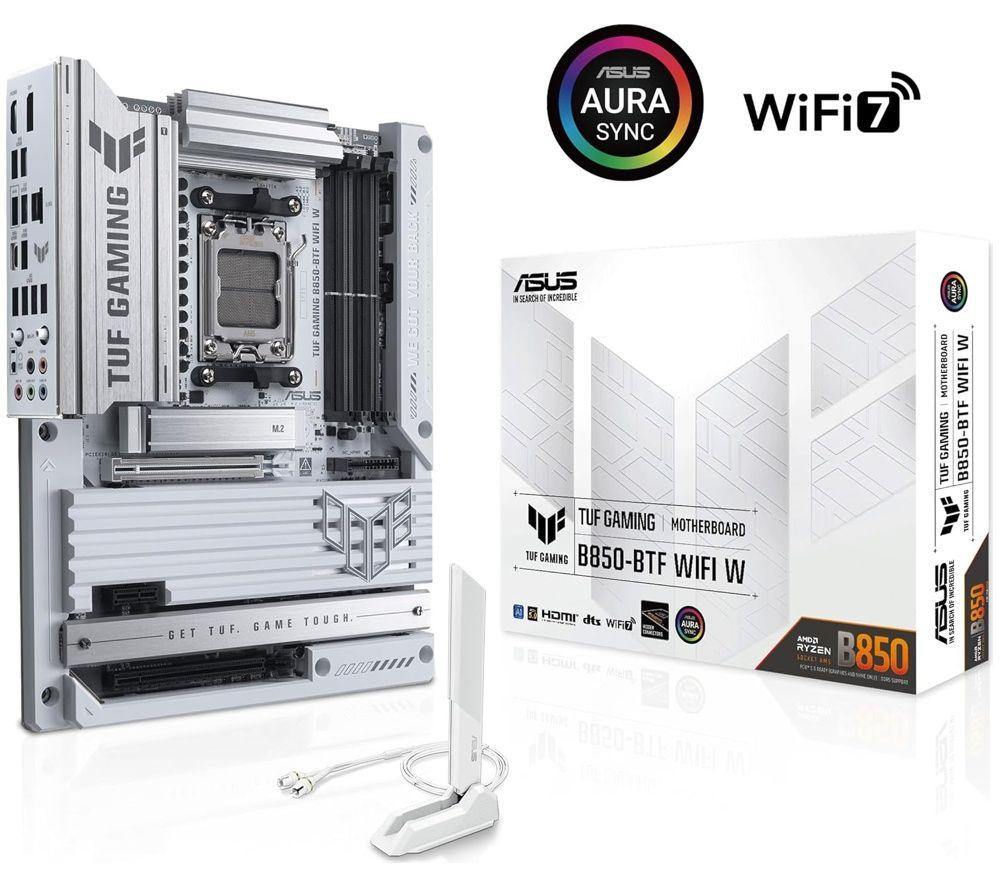

ASUS TUF GAMING B850-BTF WIFI W AM5 Motherboard

ASUS TUF GAMING B850-BTF WIFI W AM5 Motherboard

Item No. 10296855
Form factor: ATX
Socket: AMD AM5
Chipset: AMD B850
Memory: DIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee
Form factor: ATX
Socket: AMD AM5
Chipset: AMD B850
Memory: DIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee
Product code: 851336

The ASUS TUF Gaming B850-BTF WIFI W motherboard is designed for gamers, professionals, and content creators who need reliable performance for demanding workloads. It's ready for AMD 9000 Series processors, so you've got a solid foundation for your next build. You can pair it with up to 256 GB of DDR5 RAM for smooth gaming and multitasking. With PCIe 5.0 and PCIe 4.0 support, your graphics card and SSD can run at full speed. Plus, the ASUS AI Advisor uses natural language to help guide you through PC hardware.

  • Armoury Crate - manages cooling, performance settings and RGB lighting
  • AI overclocking - pushes your CPU to the limit when needed
  • Large onboard heatsinks - keep temperatures under control
  • AIO Pump header - supports liquid cooling for your CPU
  • Aura Sync - matches RGB lighting across compatible devices
  • 2.5 Gb Ethernet and WiFi  7 connection

Technical specifications for ASUS TUF GAMING B850-BTF WIFI W AM5 Motherboard

OVERVIEW

Form factor
ATX
Chipset
AMD B850
Socket
AMD AM5
Processor models supported
AMD Ryzen 9000 / 8000 / 7000 Series desktop processors
Memory slots
4 x DIMM (Max RAM: 256 GB)
Memory standard
DDR5

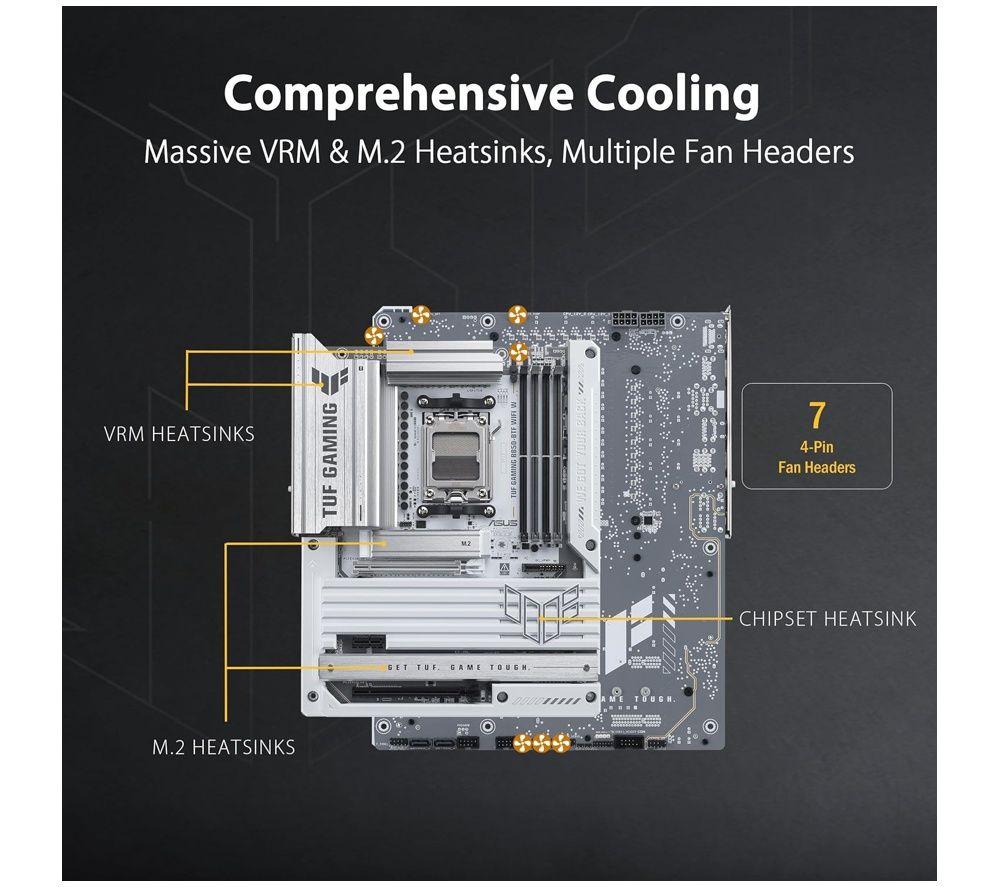

Cooling features
- Enlarged VRM heatsinks
- M.2 heatsinks
- 4-pin PWM/DC fan headers
- Dedicated AIO pump header
- Multi-temperature sensors
Operating systems supported
Windows 10 or later

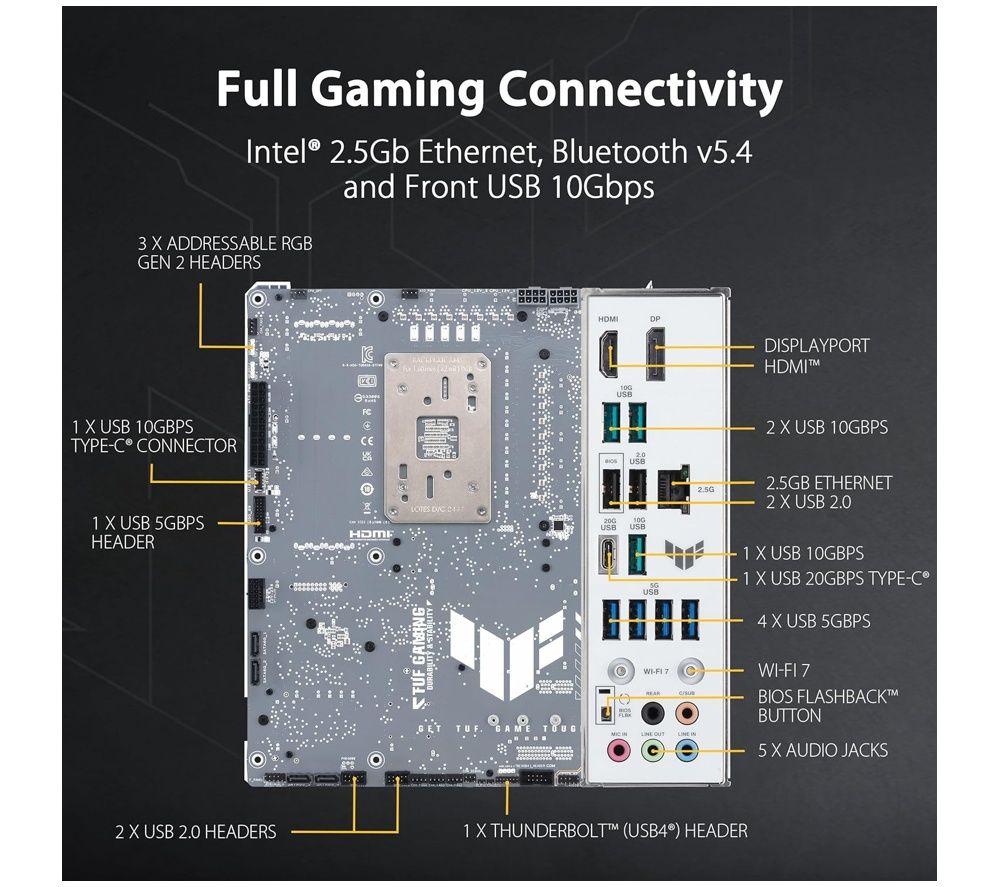

EXTERNAL CONNECTIVITY

Video output
- HDMI x 1
- DisplayPort x 1
LAN
Realtek 2.5Gb Ethernet x 1
Audio
- 3.5 mm jack x 5
- Realtek 7.1 HD
USB
- USB 3.2 Gen 2 Type-C x 1
- USB 3.2 Gen 2 x 3
- USB 3.2 Gen 1 x 4
- USB 2.0 Type-A x 2
Other external connections
- Wi-Fi module x 1
- BIOS FlashBack button x 1
- CMOS header x 1
- Bluetooth v5.4

INTERNAL CONNECTIVITY

BIOS
UEFI AMI BIOS (with BIOS FlashBack)
Expansion slots
- PCIe 5.0 (x16 slot) x 1
- PCIe 4.0 (x16 slot) x 1 (x4 modes)
- PCIe 4.0 (x1 slot) x 1
Storage slots
- SATA x 4 (6 GB/s)
- M.2 x 3
Cooling
- 4-pin CPU Fan header x 1
- 4-pin CPU OPT Fan header x 1
- 4-pin AIO Pump header x 1
- 4-pin Chassis Fan headers x 4
Case
- Power LED
- HDD LED
- Front panel I/O headers
Buttons
BIOS FlashBack
Power
- 24-pin Main Power connector x 1
- 8-pin +12V CPU Power connector x 2
Sensors
- Temperature sensor
- Fan speed sensor
Other internal connections
- Addressable RGB Gen 2 headers
- Thunderbolt header
- Q-Release slot latch system
USB
- USB 3.2 Gen 2 Type-C front panel header × 1
- USB 3.2 Gen 1 header × 1
- USB 2.0 headers × 2

GENERAL

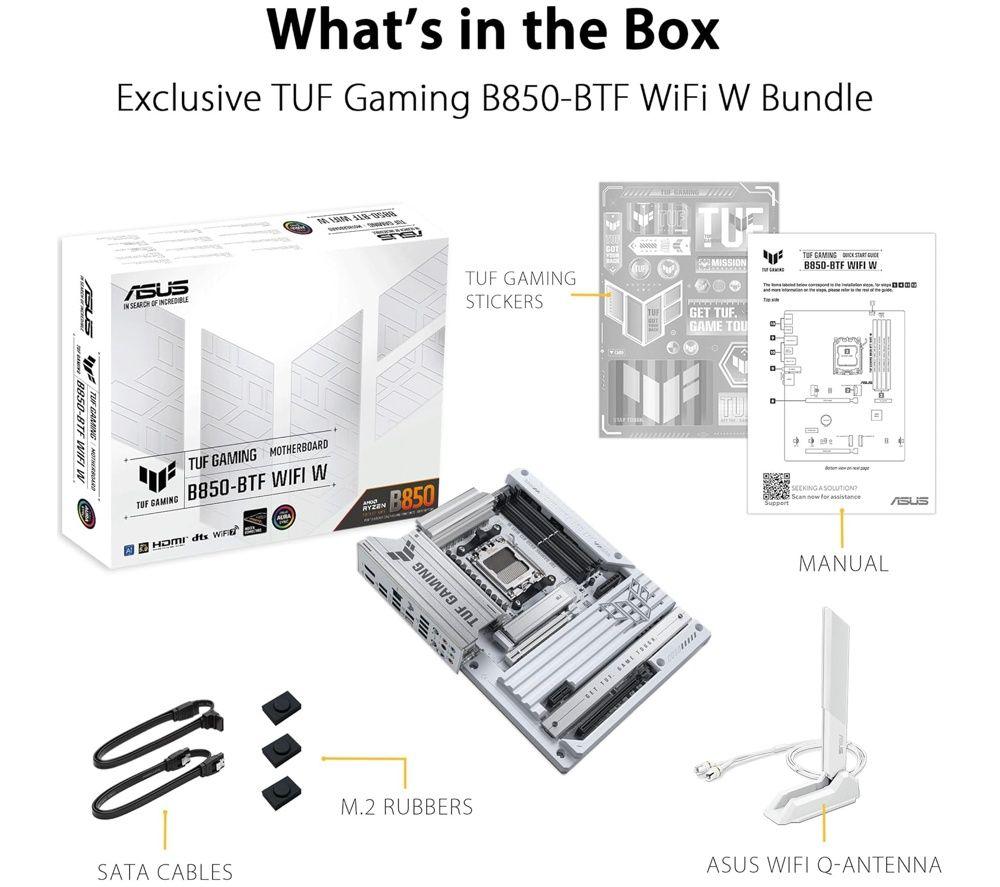

Box contents
- ASUS TUF GAMING B850-BTF WIFI W AM5 Motherboard
- SATA cables x 2
- WiFi Q-Antenna
- TUF GAMING sticker
- M.2 rubber pack x 2
- Quick start guide
Software included
- Armoury Crate
- Fan Xpert 4
- DriverHub
- GlideX
- TurboV Core
- TUF GAMING CPU-Z
- DTS Audio Processing
- Norton 360 for Gamers (60-day trial)
- WinRAR (40-day trial)
Weight
1.4 kg
Manufacturer’s guarantee
3 years
Dimensions
305 x 244 mm (W x D)
Colour
White
