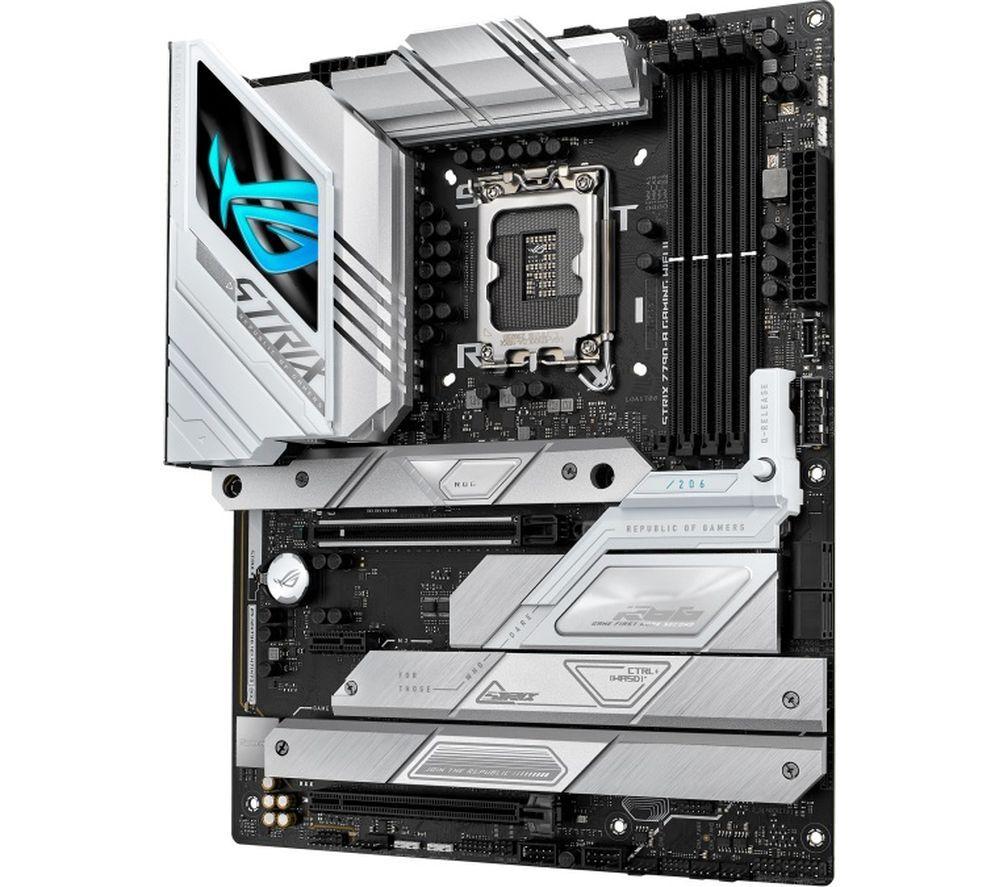

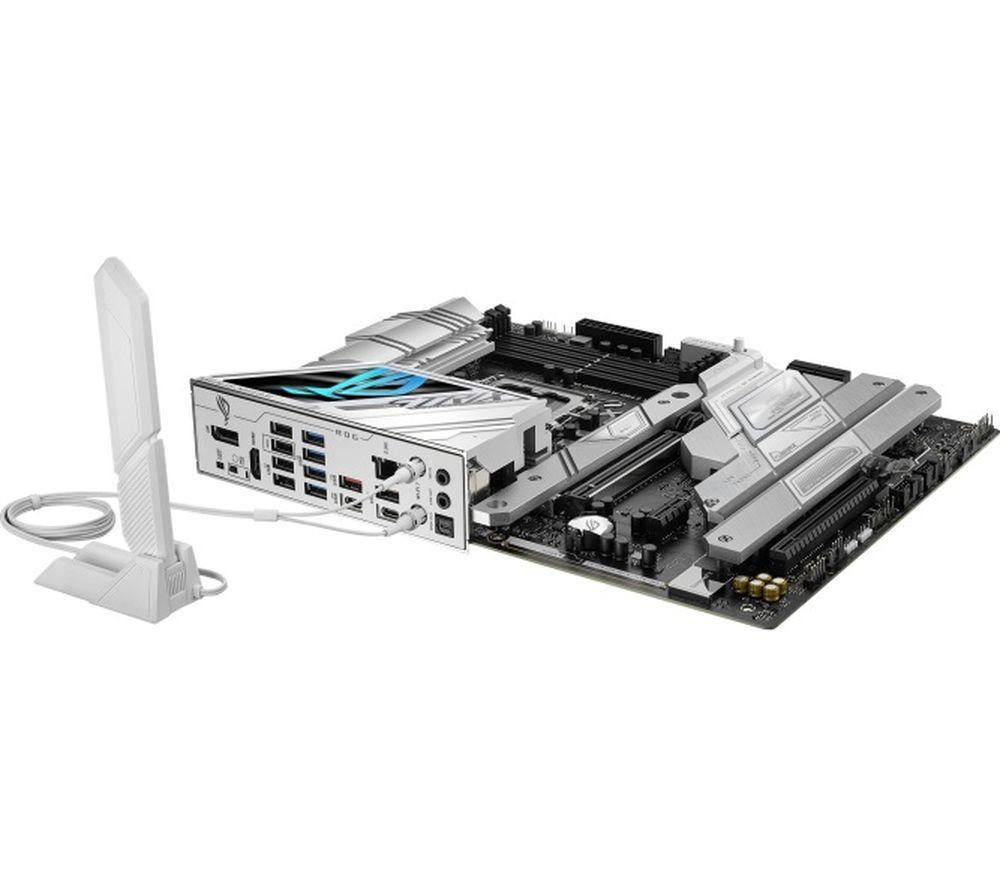

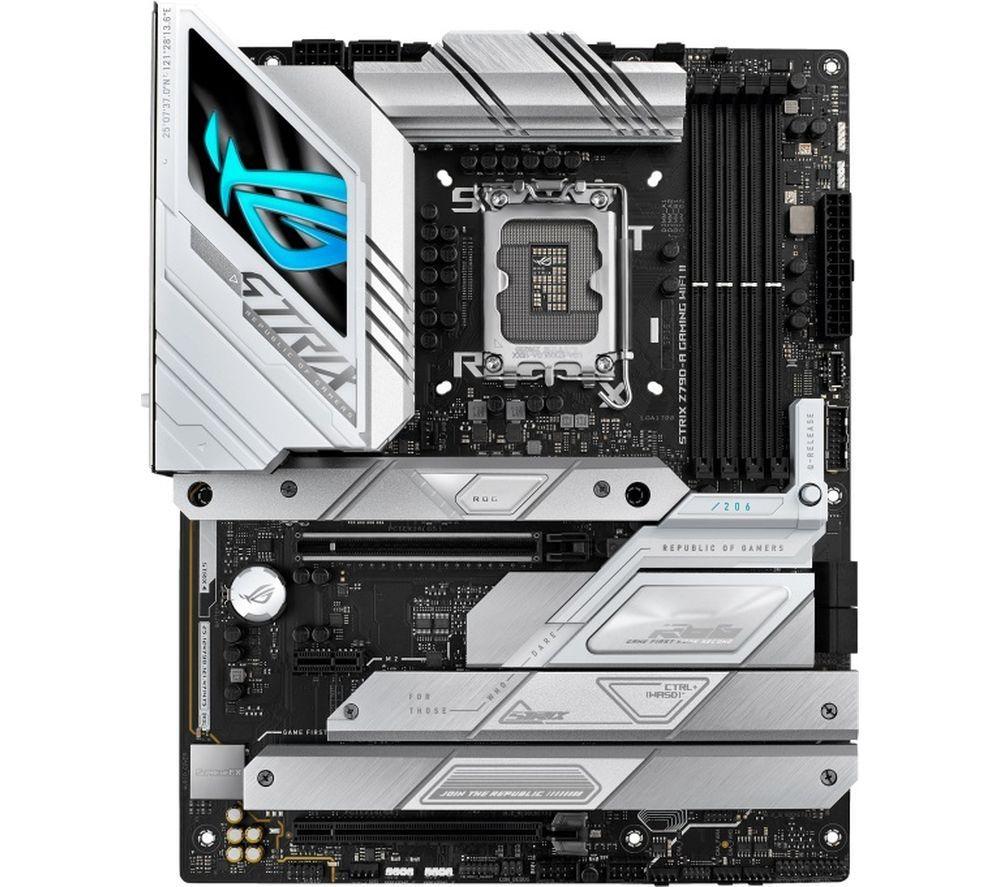

ASUS ROG STRIX Z790-A LGA1700 Motherboard

ASUS ROG STRIX Z790-A LGA1700 Motherboard

Item No. 10263460
Form factor: ATX
Socket: Intel® 1700
Chipset: Intel® Z790
Memory: DIMM x 4 / Max RAM: 192 GB DDR5
3 year guarantee
Form factor: ATX
Socket: Intel® 1700
Chipset: Intel® Z790
Memory: DIMM x 4 / Max RAM: 192 GB DDR5
3 year guarantee
Product code: 683635

This ATX board from ASUS is designed to handle powerful components. It's ready for 14th Gen Intel® Core™ Processors, but also 13th and 12th gen, Pentium® Gold and Celeron® processors. So you can use it as the base for a wide variety of systems. You can plug in up to 192 GB of DDR5 RAM and blaze through your workflows. And with PCIe 5.0 and 4.0 you can have high-speed storage that won't make you wait around.

Good to know

- With 2.5Gb Ethernet and WiFi 6E you'll have super-fast and rock-solid internet connection for online games
- To make sure your hardware stays cool under load, there are massive onboard heatsinks and 7 fan headers
- AI overclocking pushes your CPU to the limit when needed - and you don't have to do anything
- It's got an AIO Pump header, so you can slap some proper liquid cooling on your CPU
- Sync the RGB lighting on your motherboard with your components and peripherals using ASUS Aura Sync
- You'll be heard loud and clear - the AI noise cancellation blocks out background noise from your mic

Technical specifications for ASUS ROG STRIX Z790-A LGA1700 Motherboard

OVERVIEW

Form factor
ATX
Chipset
Intel® Z790
Socket
Intel® LGA1700
Processor models supported
- 14th Gen Intel® Core™ processors
- 13th Gen Intel® Core™ processors
- 12th Gen Intel® Core™ processors
- Intel® Pentium® Gold processors
- Intel® Celeron® processors
Memory slots
4 x DIMM (Max RAM: 192 GB)
Memory standard
DDR5
Operating systems supported
- Windows 10 (64-bit)
- Windows 11

EXTERNAL CONNECTIVITY

Video output
- HDMI x 1
- DisplayPort x 1
LAN
Intel 2.5Gb Ethernet x 1
Audio
Audio jacks x 2
Other external connections
WiFi module x 1

INTERNAL CONNECTIVITY

BIOS
- 256 Mb Flash ROM
- UEFI AMI BIOS
Expansion slots
- PCIe 5.0 (x16) x 1
- PCIe 4.0 (x16) (support x4 mode) x 1
- PCIe 3.0 (x1) x 1
Storage slots
- SATA x 4 (6 GB/s)
- M.2 x 5
Cooling
- 4-pin CPU fan header x 1
- 4-pin CPU OPT fan header x 1
- 4-pin AIO Pump header x 1
- 4-pin chassis fan headers x 5
Case
- Power LED x 1
- Clear CMOS header x 1
Buttons
- Power
- Reset
- BIOS FlashBack
Power
- 24-pin EATX x 1
- 8-pin ATX 12 V x 2
Sensors
Thermal sensor header
Other internal connections
- Thunderbolt 4 header x 1
- Addressable Gen 2 headers x 3
- Aura RGB header x 1
- Front Panel Audio header (AAFP) x 1
- 20-3 pin System Panel header x 1
- CPU Over Voltage jumper x 1
USB
- USB Type-C x 3
- USB 3.0 x 10
- USB 2.0 x 6

GENERAL

Box contents
- Asus ROG STRIX Z790-A WiFi II LGA1700 Motherboard
- I/O Shield
- WiFi antennas
- Cable ties pack
- SATA cables x 2
- M.2 thermal pad
- M.2 Q-Latch package
- M.2 rubber package x 2
- ROG key chain
- ROG Strix stickers
- ROG Strix thank you card
- User manual
Software included
- Armoury Crate
- AI Suite 3
- MyAsus
- FlexKey
- WinRAR
- ASUS EZ DIY
Weight
1.64 kg
Manufacturer’s guarantee
3 years
Dimensions
25 x 244 x 305 mm (H x W x D)
Colour
Black
