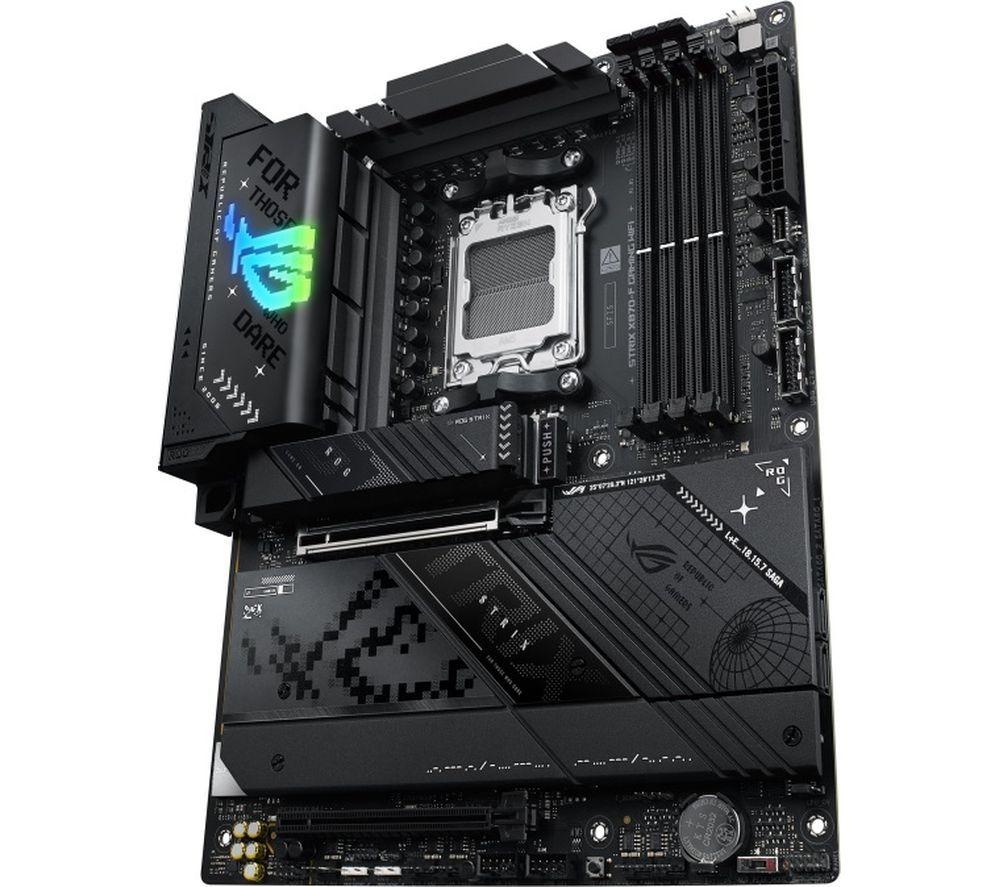

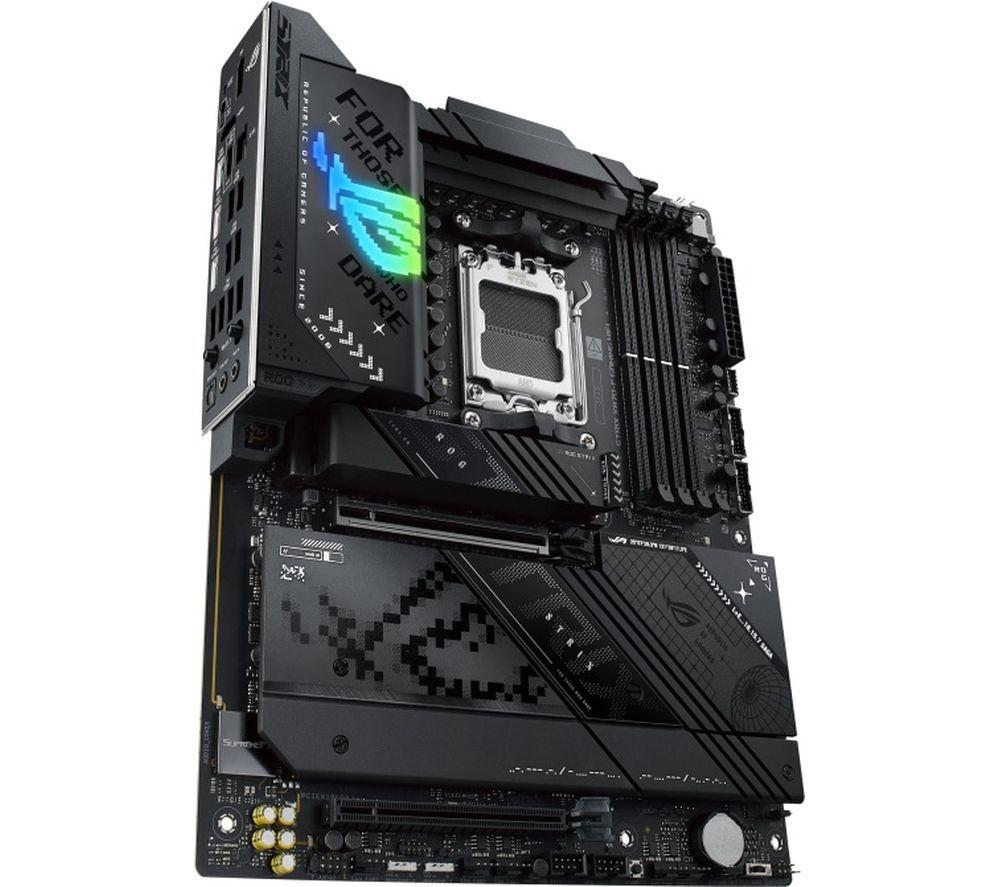

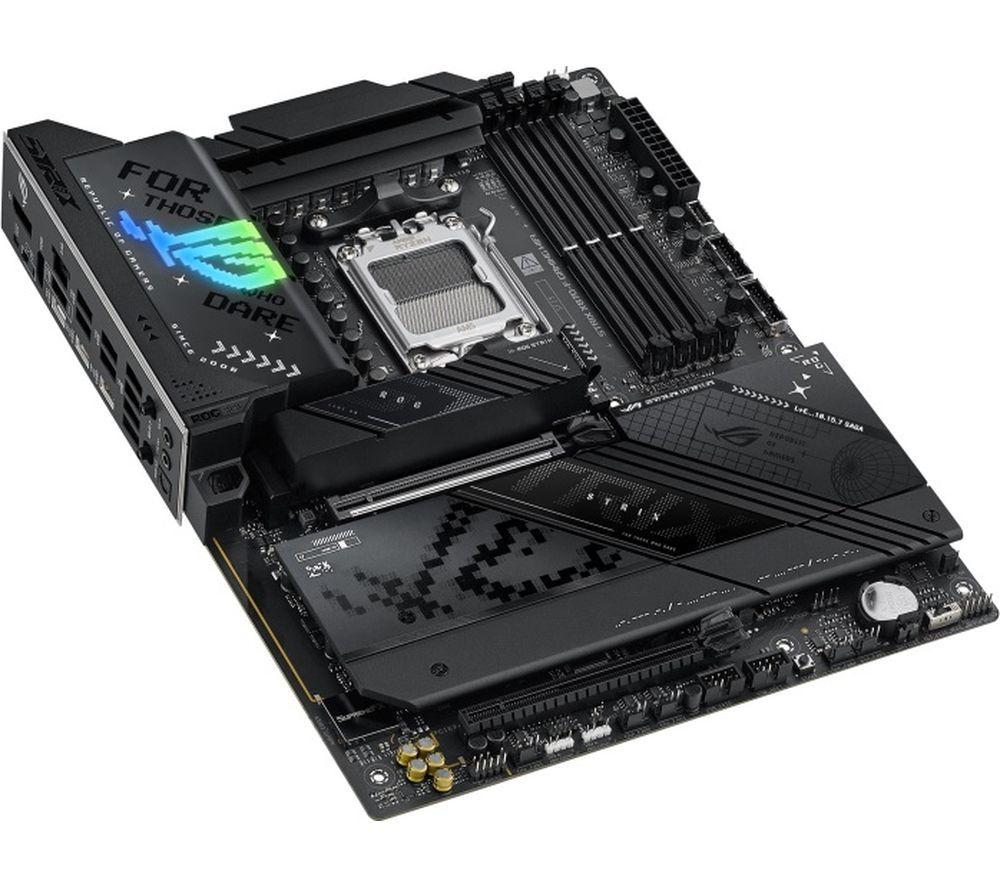

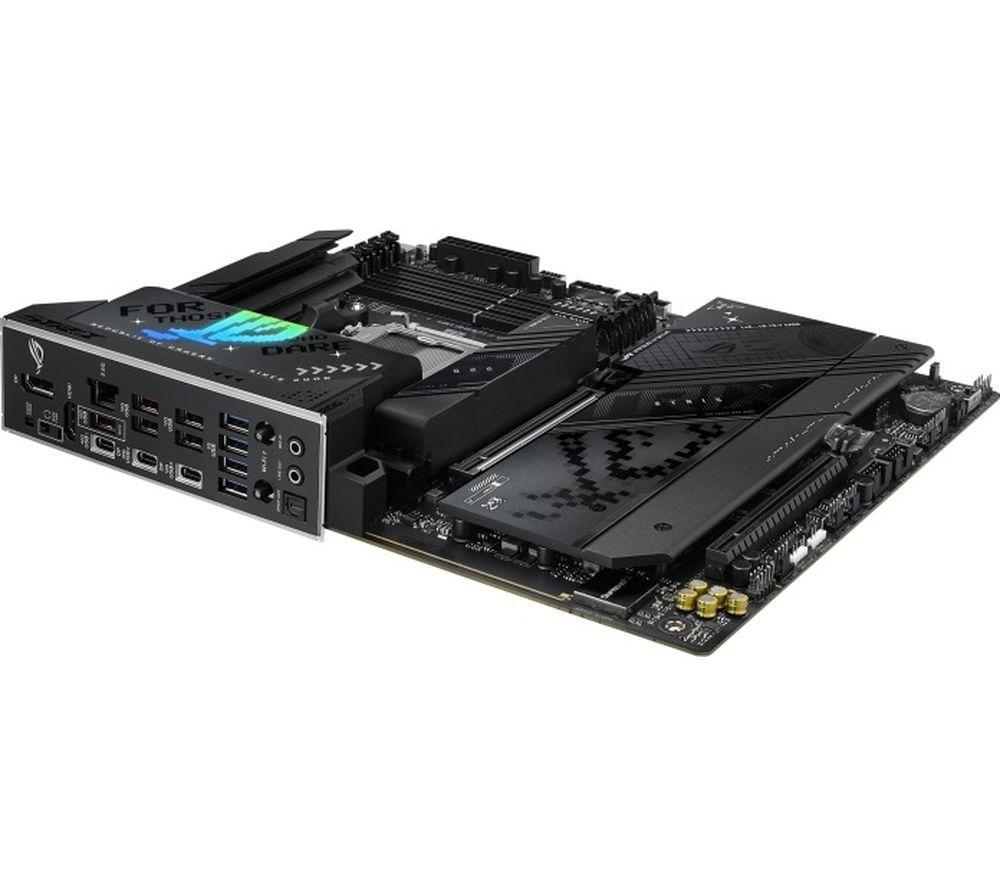

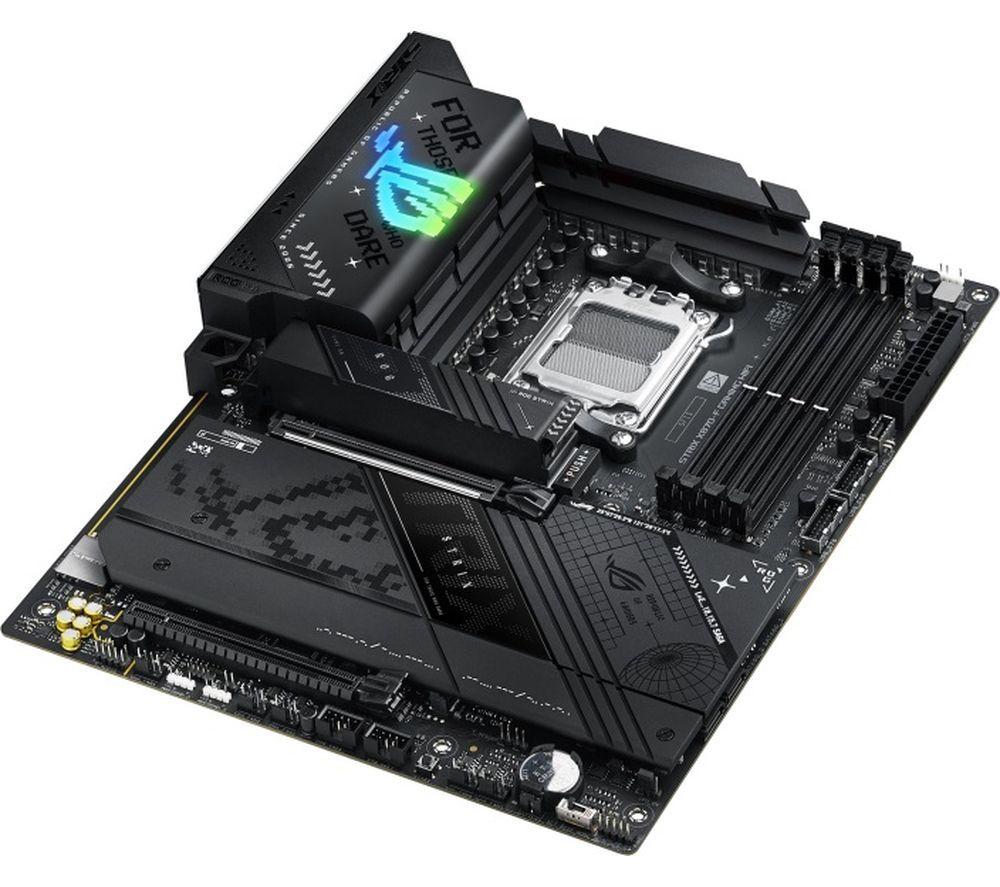

ASUS ROG STRIX X870-F WiFi AMD AM5 Motherboard

ASUS ROG STRIX X870-F WiFi AMD AM5 Motherboard

Item No. 10272880
Form factor: ATX
Socket: AMD AM5
Chipset: AMD X870
Memory: DIMM x 4 / Max RAM: 192 GB DDR5
3 year guarantee
€569.00
Saved items limit reached (20/20)
To save this item, try removing something else from your Saved items.
Save for later
Saved
Check stock in your area
store Delivery Fast nationwide delivery Checking Stock...
store collection Free delivery to store in 3-5 working days Checking Stock...

Delivery to:

Select your preferred delivery option at checkout
Change location

Location selected:

Change location

What you’ll need to make it even better

CORSAIR Vengeance RGB DDR5 5600 MHz AMD EXPO PC RAM - 16 GB x 2
CORSAIR Vengeance RGB DDR5 5600 MHz AMD EXPO PC RAM - 16 GB x 2
CORSAIR Vengeance RGB DDR5 5600 MHz AMD EXPO PC RAM - 16 GB x 2
5.00 out of 5 stars
5/5 1 reviews
€159.00
THERMAL GRIZZLY Kryonaut Thermal Grease
THERMAL GRIZZLY Kryonaut Thermal Grease
THERMAL GRIZZLY Kryonaut Thermal Grease
4.40 out of 5 stars
4.4/5 124 reviews
€8.99
Form factor: ATX
Socket: AMD AM5
Chipset: AMD X870
Memory: DIMM x 4 / Max RAM: 192 GB DDR5
3 year guarantee
Product code: 790624

This ATX board from ASUS is designed to handle powerful components. It's ready for 9000 series AMD Processors, but also 8000 and 7000 series chips. So, you can use it as the base for a wide variety of systems. You can plug in up to 192 GB of DDR5 RAM and blaze through your workflows. And with PCIe 5.0 and 4.0 you can have high-speed storage that won't make you wait around.

Good to know

- With 2.5 Gb Ethernet and WiFi 7 you'll have super-fast and rock-solid internet connection for online games
- To make sure your hardware stays cool under load, there are massive onboard heatsinks and 7 fan headers
- AI overclocking pushes your CPU to the limit when needed - and you don't have to do anything
- It's got an AIO Pump header, so you can slap some proper liquid cooling on your CPU
- Sync the RGB lighting on your motherboard with your components and peripherals using ASUS Aura Sync

Technical specifications for ASUS ROG STRIX X870-F WiFi AMD AM5 Motherboard

OVERVIEW

Form factor
ATX
Chipset
AMD X870
Socket
AMD AM5
Processor models supported
AMD RYZEN 7000 / 8000 / 9000 processors
Memory slots
DIMM (Max RAM: 192 GB) x 4
Memory standard
DDR5
Operating systems supported
Windows 11

EXTERNAL CONNECTIVITY

Video output
- HDMI x 1
- DisplayPort x 1
LAN
- Intel® 2.5Gb Ethernet x 1
- ASUS LANGuard
Audio
Audio jacks x 2
USB
- USB Type-C x 4
- USB 3.0 x 11
- USB 2.0 x 6
Other external connections
- DisplayPort x 1
- HDMI port x 1
- Wi-Fi module x 1
- Intel® 2.5Gb Ethernet x 1
- Audio jacks x 1
- Optical S/PDIF out port x 1
- BIOS FlashBack™ button x 1
- Clear CMOS button x 1

INTERNAL CONNECTIVITY

BIOS
- 256 Mb Flash ROM
- UEFI AMI BIOS
Expansion slots
- PCIe 5.0 (x16 slots) x 1
- PCIe 4.0 (x16 slots) x 2
Storage slots
- SATA x 2 (6 GB/s)
- M.2 x 4
Cooling
- 4-pin CPU fan header x 1
- 4-pin CPU OPT fan header x 1
- 4-pin AIO Pump header x 1
- 4-pin chassis fan headers x 5
Case
- Power LED x 1
- Clear CMOS header x 1
Buttons
- Power
- Reset
- BIOS FlashBack
Power
- 24-pin EATX x 1
- 8-pin ATX 12 V x 1
Sensors
Thermal sensor header
Other internal connections
- Addressable Gen 2 headers x 3
- Alteration PCIe mode switch x 1
- Chassis Intrusion header x 1
- CPU Over voltage jumper x 1
- Front Panel Audio header (F_AUDIO) x 1
- Start button x 1
- 10-1 pin System Panel header x 1
- Thermal Sensor header x 1

GENERAL

Box contents
- Asus ROG STRIX X870-F WiFi AMD AM5 Motherboard
- Cables
- SATA 6Gb/s cables x 2
- Additional Cooling Kit
- Thermal pad for M.2 22110 x 1
- ASUS WiFi Q-Antenna x 1
- Cable ties package x 1
- M.2 Q-Latch package x 1
- M.2 Q-Slide package x 1
- ROG key chain x 1
- ROG Strix stickers x 1
- M.2 rubber packages x 4
- Documentation
- Quick start guide
Software included
- ROG CPU-Z
- Dolby Atmos
-ASUS Exclusive Software
-Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
- ASUS Driver Hub
- ASUS GlideX
- USB Wattage Watcher
- TurboV Core
- Adobe Creative Cloud (Free Trial)
- Norton 360 for Gamers (60 Days Free Trial)
- WinRAR (40 Days Free Trial)
- UEFI BIOS
- AI Overclocking Guide
- ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
- Dynamic OC Switcher
- FlexKey
Weight
1.90 kg
Manufacturer’s guarantee
3 years
Dimensions
25 x 244 x 305 mm (H x W x D)
Colour
Black
