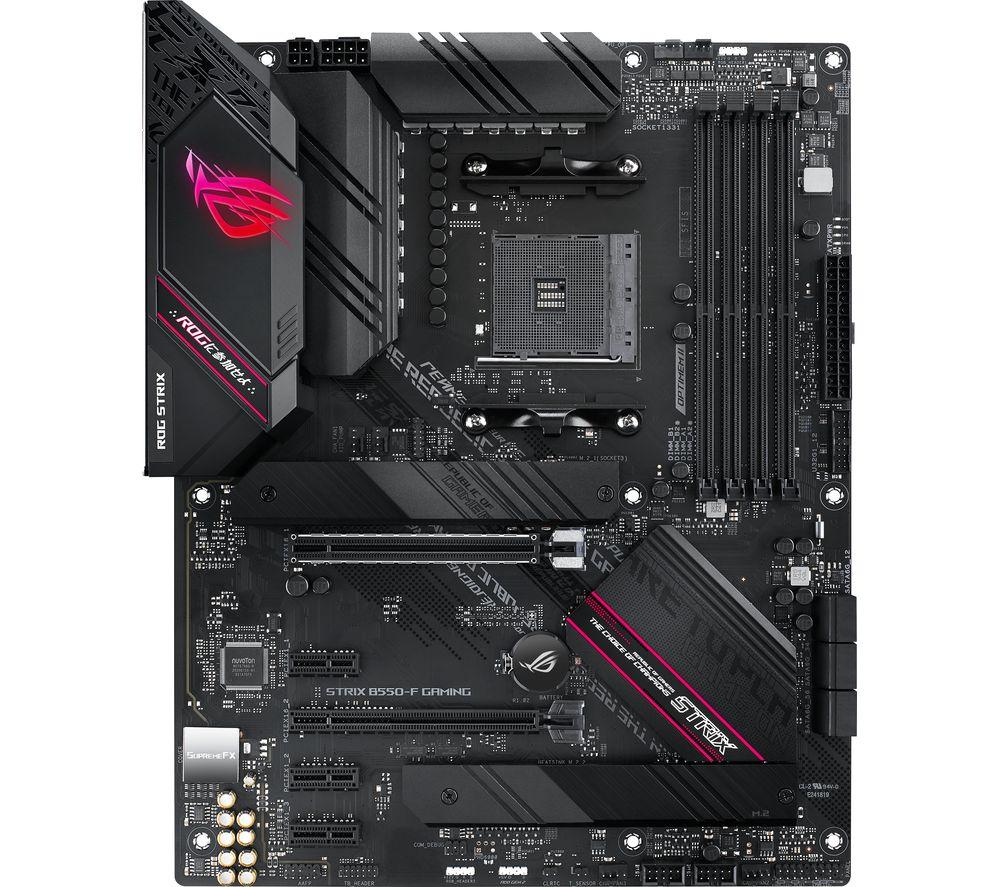

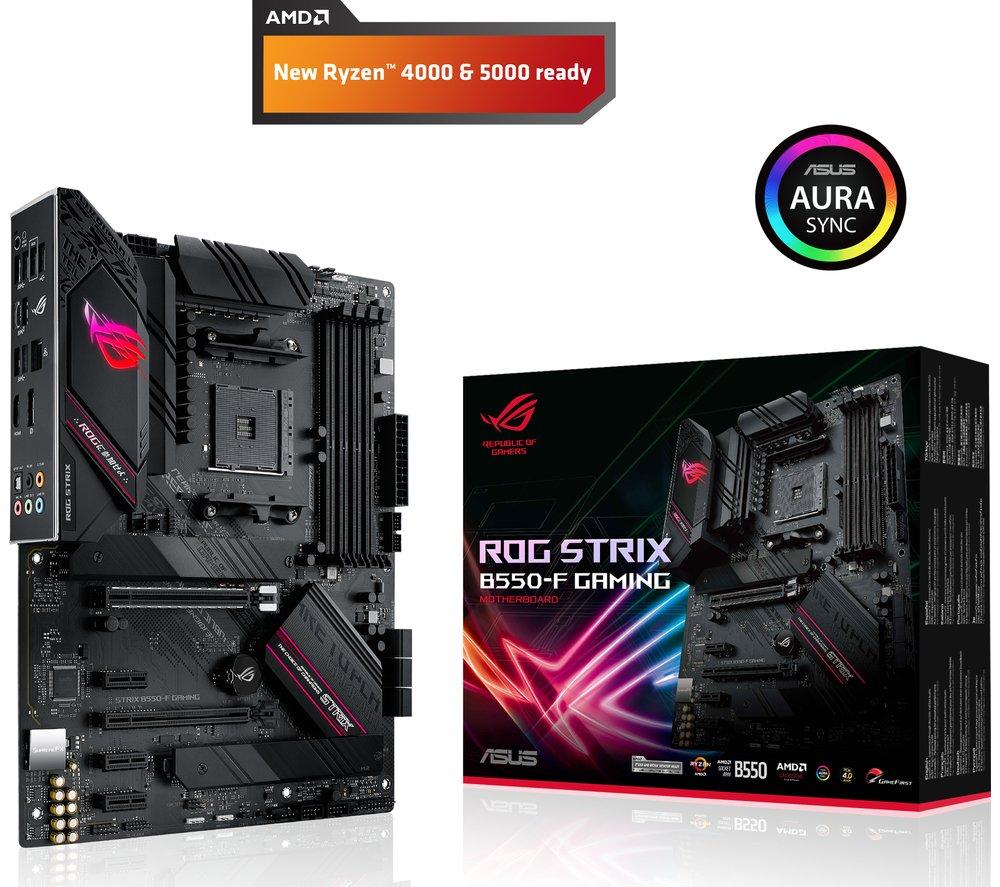

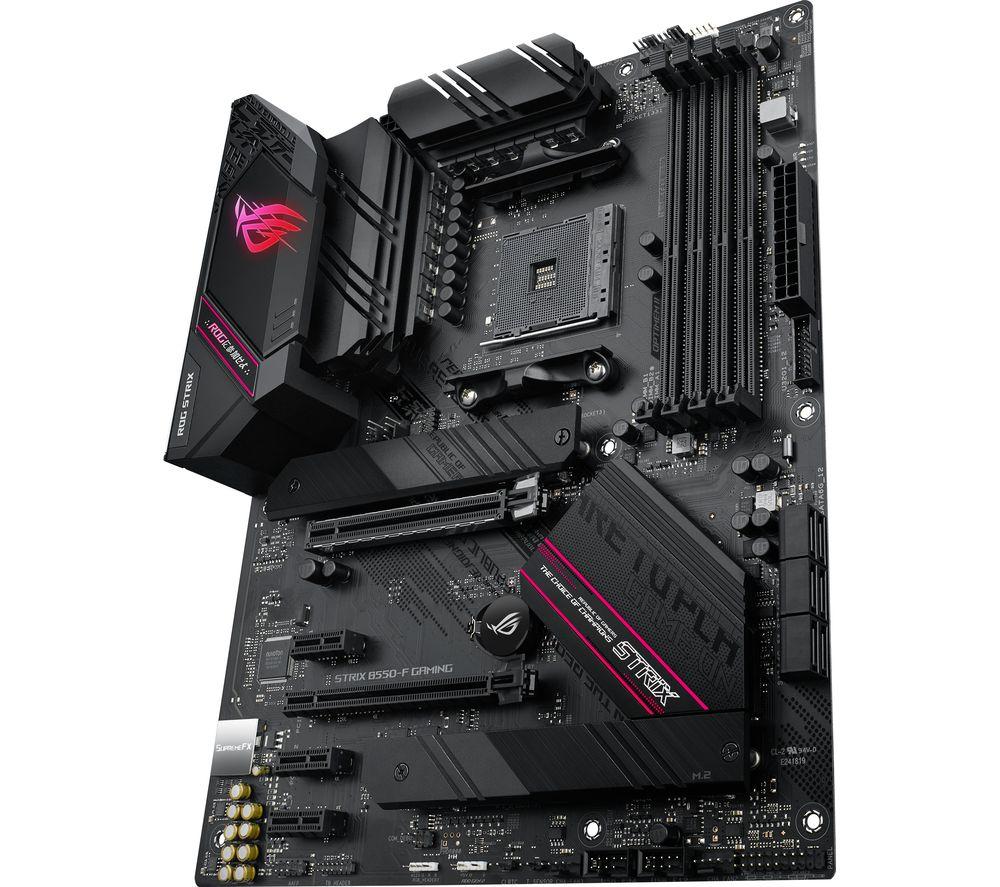

ASUS ROG STRIX B550-F GAMING AM4 Motherboard

ASUS ROG STRIX B550-F GAMING AM4 Motherboard

Item No. 10210512
Form factor: ATX
Socket: AMD AM4
Chipset: AMD B550
Memory: DIMM x 4 / Max RAM: 128 GB
AMD CrossFire x 2
3 year guarantee
€329.99
Saved items limit reached (20/20)
To save this item, try removing something else from your Saved items.
Save for later
Check stock in your area
store Delivery Fast nationwide delivery Checking Stock...
store collection Free delivery to store in 3-5 working days Checking Stock...

Delivery to:

Select your preferred delivery option at checkout
Change location

Location selected:

Change location

What you’ll need to make it even better

Form factor: ATX
Socket: AMD AM4
Chipset: AMD B550
Memory: DIMM x 4 / Max RAM: 128 GB
AMD CrossFire x 2
3 year guarantee
Product code: 666200

Incredible power

The ASUS ROG STRIX B550-F GAMING AM4 Motherboard is packed with technology that will let you build a great PC. Supporting AMD's powerful 3rd generation Ryzen processor range, the B550-F isa solid foundation for both gaming and work PCs. There's support for both liquid and fan cooling, so you can build a setup that suits any components you choose.

Don't waste time fussing with the little things when it comes to completing your PC build. The ASUS B550-F is designed for easy DIY – the I/O Shield comes pre-mounted, and you can snap all of your components into place.

Impressive storage and RAM

Compatible with the latest M.2 storage, you can add a superfast SSD to your build - boot up in seconds and jump straight back into your latest project without having to wait ages as things load. And because your SATA ports are freed up, you can pile up huge capacity hard drives and save all your files, important documents and images.

Want more performance power? The STRIX Motherboard has enough room for 128 GB of DDR4 RAM, so you'll be able to multitask as much as you like.

Sync all your lighting

The ROG STRIX B550-F has built-in RGB LED lighting, which is compatible with any other ASUS Aura RGB accessories you have. You can sync them all to the same colour, or pick from a huge range of patterns.

Technical specifications for ASUS ROG STRIX B550-F GAMING AM4 Motherboard

OVERVIEW

Form factor
ATX
Chipset
AMD B550
Socket
AMD AM4
Processor models supported
3rd generation AMD Ryzen processors
Memory slots
4 x DIMM (Max RAM: 128 GB)
Memory standard
DDR4
Multi-GPU support
AMD CrossFire x 2
Operating systems supported
- Windows 10
- Windows 11

EXTERNAL CONNECTIVITY

Video output
- HDMI x 1
- DisplayPort x 1
LAN
Ethernet port x 1
Audio
- 3.5 mm jack x 5
- Optical S/PDIF x 1
USB
- USB Type-C x 1
- USB 3.2 Gen 2 x 1
- USB 3.2 Gen 1 x 4
- USB 2.0 x 2

INTERNAL CONNECTIVITY

BIOS
- UEFI AMI BIOS
- 256 Mb Flash ROM
Expansion slots
- PCIe 3.0 (x16) x 1
- PCIe 3.0 (x1) x 3
Storage slots
- SATA x 6 (6 GB/s)
- M.2 x 1
Cooling
- AIO_Pump header 4-pin x 1
- CPU fan header 4-pin x 1
- CPU_OPT fan header 4-pin x 1
- Chassis fan header 4-pin x 3
Buttons
BIOS FlashBackTM
Power
- 24-pin ATX x 1
- 8-pin ATX +12 V x 1
- 4-pin ATX +12 V x 1
Sensors
Thermal sensor x 1
Other internal connections
- Aura RGB strip headers x 2
- AAFP connector x 1
- System panel x 1
- Clear CMOS jumper x 1
USB
- USB 3.2 Gen 1 connector x 1 (supports additional 2 USB 3.2 ports)
- USB 2.0 connector x 2 (supports additional 4 USB 2.0 ports)

GENERAL

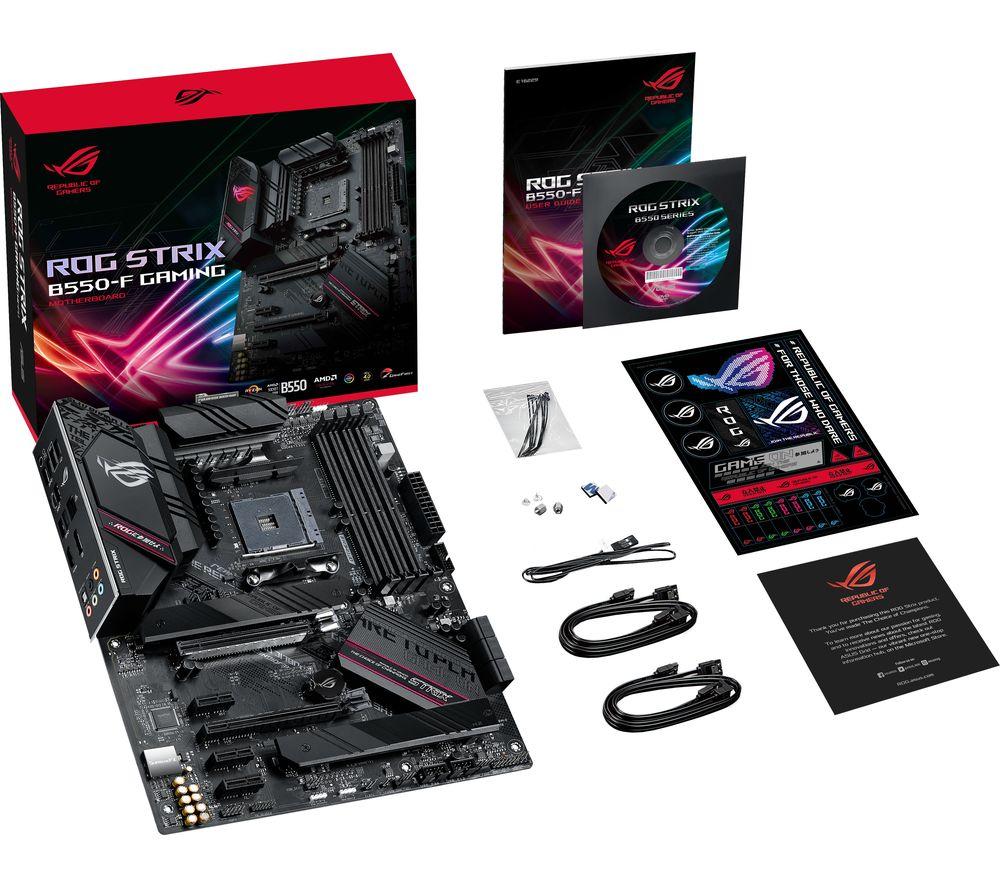

Box contents
- ASUS ROG STRIX B550-F GAMING AM4 Motherboard
- Addressable RGB extension cable x 1
- SATA 6 Gb/s cable x 4
- Cable tie pack
- M.2 screw package
- ROG Strix sticker
- User manual
- Driver DVD
Weight
1.29 kg
Manufacturer’s guarantee
3 years
Dimensions
68 x 273 x 338 mm (H x W x D)
Colour
Black
