ASUS ROG CROSSHAIR X870E EXTREME AM5 Motherboard

ASUS ROG CROSSHAIR X870E EXTREME AM5 Motherboard

Item No. 10288836
Form factor: EATX
Socket: AMD AM5
Chipset: AMD X870E
Memory: DIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee
Form factor: EATX
Socket: AMD AM5
Chipset: AMD X870E
Memory: DIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee
Product code: 627750

This ROG CROSSHAIR E-ATX board is the perfect base for your gaming PC. It's ready for a 9000 Series AMD processor, so you can put all those cores to work. You can plug in up to 256 GB of DDR5 RAM and blaze through your workflows. And with PCIe 5.0 and 4.0 you can have high-speed storage and newest GPUs that won't make you wait around.

Good to know

- Dynamic OC Switcher lets you switch between a manual overlock and an overdrive for power when you need it
- Boost your connection with AI Networking II, which lets you switch channel to get the best speeds
- To make sure your hardware stays cool under load, there are loads of fan headers for precise temperature control
- Five M.2 slots and PCIe 5.0 slots make it easy to add to your build
- The WiFi Q-antenna supports dual band connectivity, helping to make connections more stable

Technical specifications for ASUS ROG CROSSHAIR X870E EXTREME AM5 Motherboard

OVERVIEW

Form factor
Extended ATX
Chipset
AMD X870E
Socket
AMD AM5
Processor models supported
AMD RYZEN 7000 / 8000 / 9000 Series desktop processors
Memory slots
4 x DIMM (Max RAM: 256 GB)
Memory standard
DDR5
Operating systems supported
Windows 11

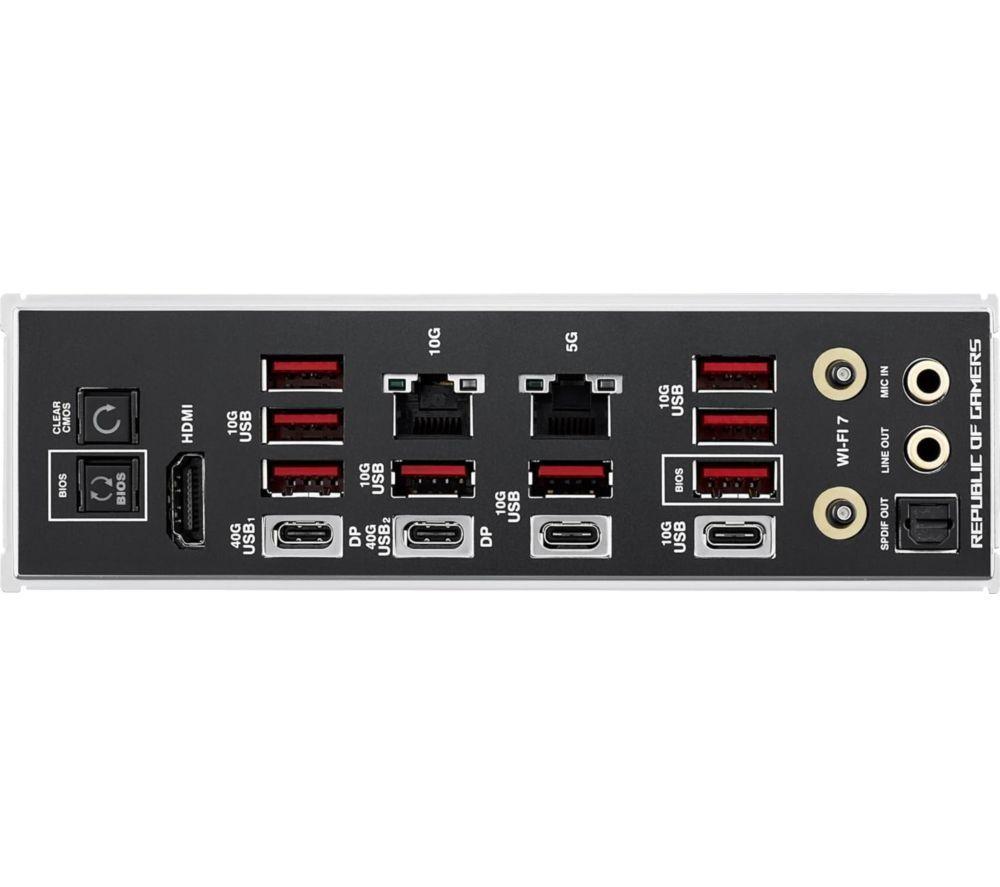

EXTERNAL CONNECTIVITY

Video output
- HDMI 2.1 x 1
- USB Type-C x 2
LAN
- Marvell AQtion 10Gb Ethernet x 1
- Realtek 5Gb Ethernet x 1
- ASUS LANGuard
Audio
Audio jacks x 2

INTERNAL CONNECTIVITY

BIOS
- 256 Mb Flash ROM x 2
- UEFI AMI BIOS
Expansion slots
- PCIe 5.0 (x16 Slots) x 2
- PCIe 4.0 (x16 Slots) x 2
Storage slots
- SATA x 4 (6 GB/s)
- M.2 x 5
Cooling
- CPU fan header 4-pin x 1
- CPU OPT fan header 4-pin x 1
- Radiator Fan header 4-pin x 2
- Chassis fan headers 4-pin x 2
- W_PUMP+ headers x 2
- VRM heatsink fan header x 1
Buttons
- Power
- Reset
- BIOS FlashBack
- FlexKey
- Clear CMOS
- Safe Boot
Power
- 24-pin ATX x 1
- 8-pin ATX x 2
Sensors
Thermal sensor header x 1
Other internal connections
- Addressable Gen2 headers x 2
- Alteration PCIe mode switch x 1
- FlexKey button x 1
- Front Panel Audio header (F_AUDIO) x 1
- ReTry button x 1
- Start button x 1
- 10-1 pin System Panel header x 1
- Thermal Sensor header x 1
- LN2 Mode jumper x 1
- Safe Boot button x 1
- Slow Mode switch x 1
USB
- USB Type-C x 2
- USB4 x 2
- USB 2.0 x 4

GENERAL

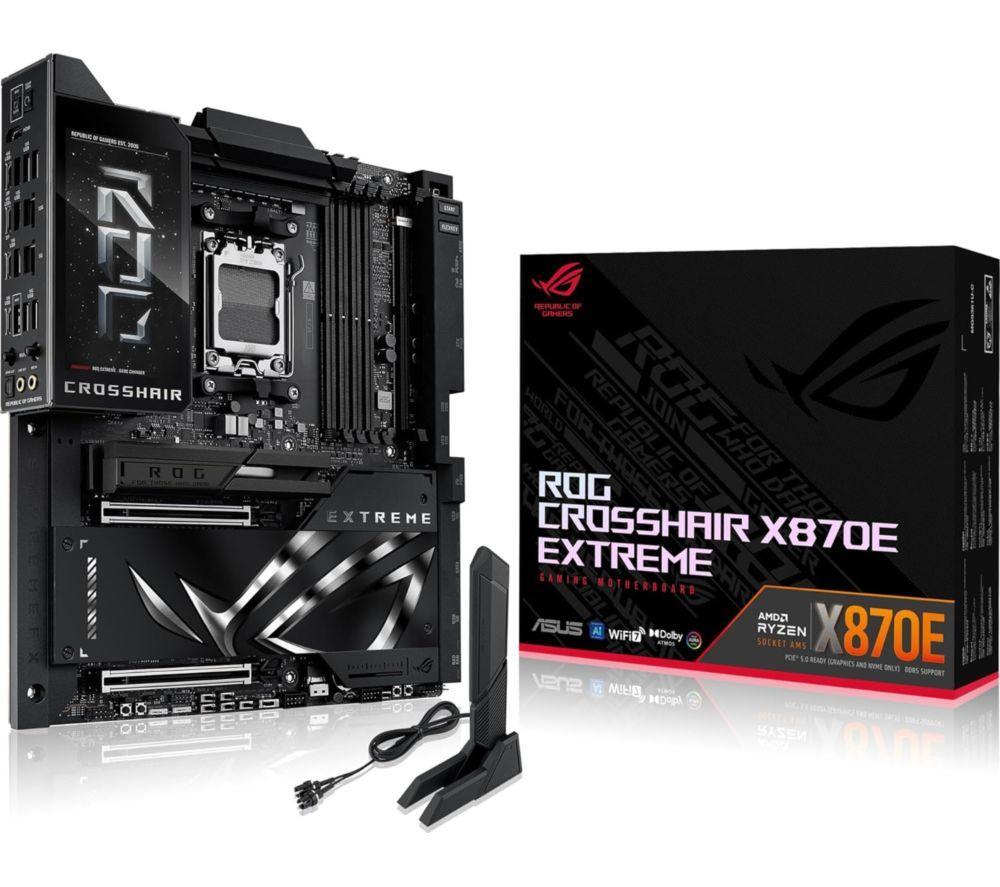

Box contents
- Asus ROG CROSSHAIR X870E EXTREME AM5 Motherboard
- 1-to-3 ARGB splitter cable x 1
- 1-to-2 ARGB splitter cable x 1
- 1-to-4 fan splitter cable x 2
- ROG weave SATA 6G cable packages x 2
- 3-in-1 Thermistor cables pack x 1
- ROG DIMM.2 with heatsink x 1
- M.2 pad package for ROG Q-DIMM.2 x 1
- Thermal pad for ROG Q-DIMM.2 x 2
- Thermal pad for M.2 22110 x 2
- DDR5 Fan holder x 1
- ROG Fan Kit x 1
- ASUS WiFi Q-Antenna x 1
- Q-connector x 1
- ROG logo plate sticker x 1
- ROG screwdriver x 1
- ROG stickers x 1
- ROG VIP card x 1
1 x M.2 Q-Slide package
5 x M.2 backplate rubber packages
1 x ROG Bottle Opener
1 x USB drive with utilities and drivers
1 x Quick start guide
Software included
- ROG CPU-Z
- Dolby Atmos
- Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (1 year full version)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
- ASUS AI Advisor
- ASUS DriverHub
- ASUS GlideX
- USB Wattage Watcher
- Turbo Vcore
- WinRAR (40 Days Free Trial)
- Adobe Creative Cloud (Free Trial)
- UEFI BIOS
- AI Overclocking Guide
- ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
- FlexKey
Manufacturer’s guarantee
3 years
Dimensions
277 x 305 mm (W x D)
Colour
Black
