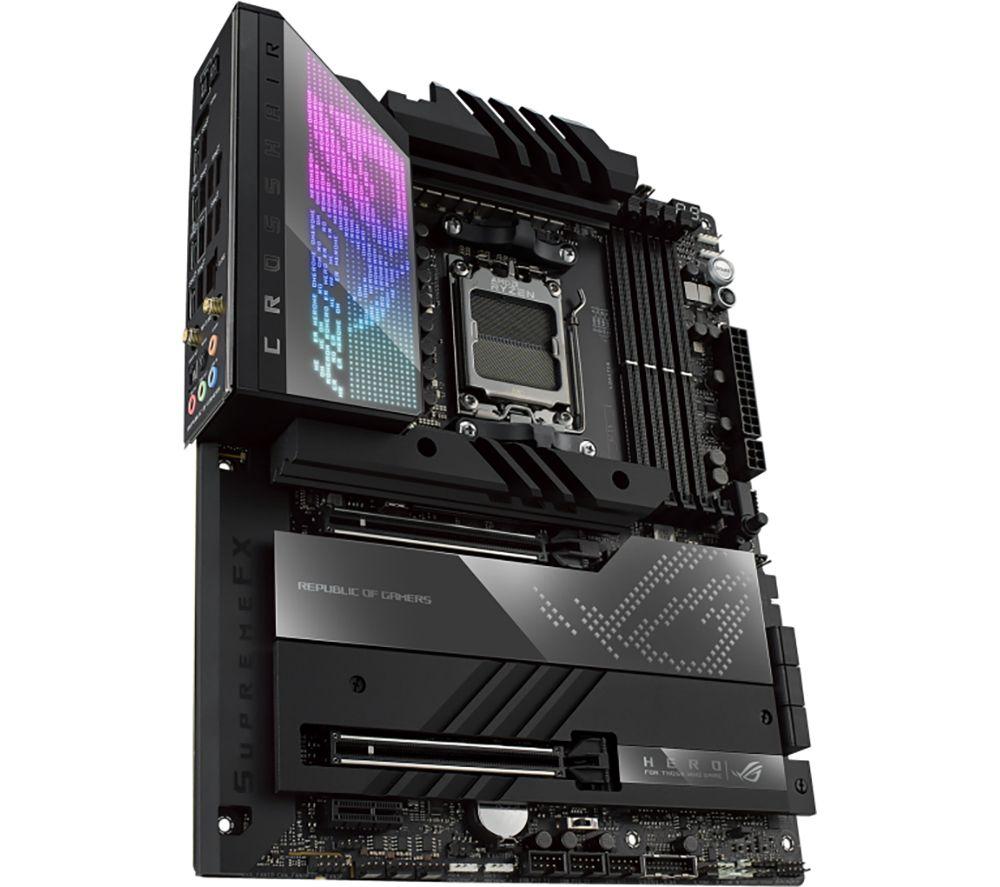

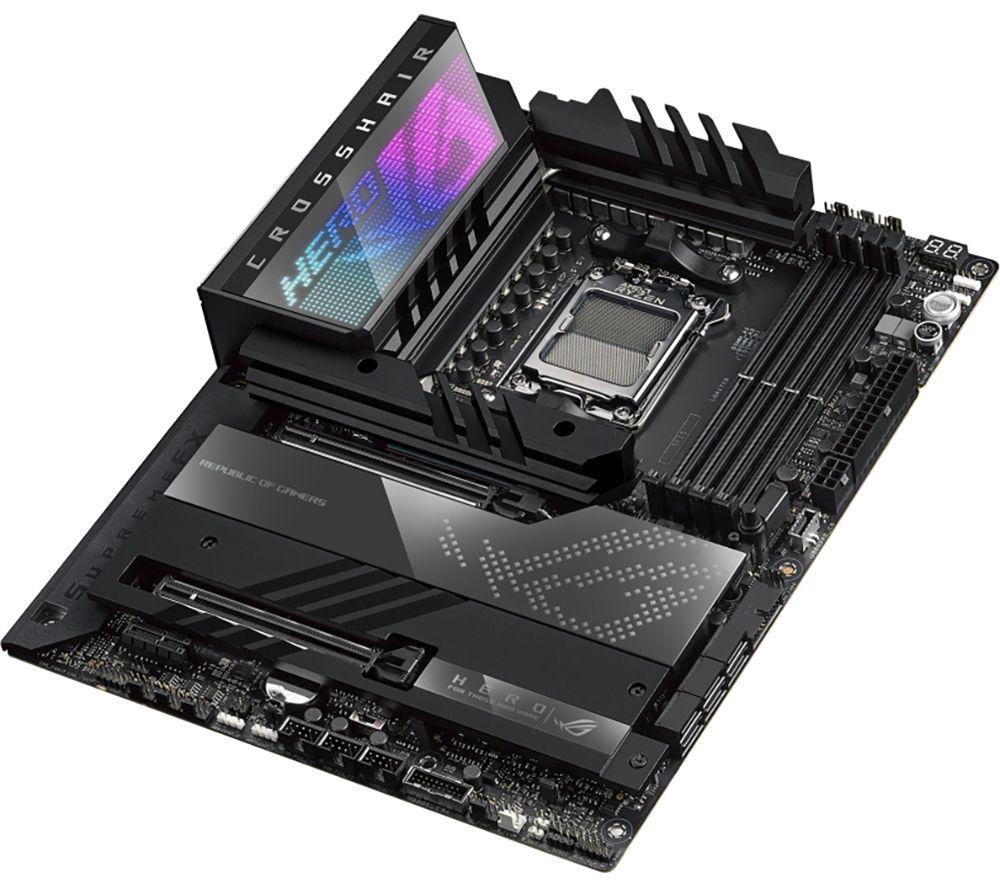

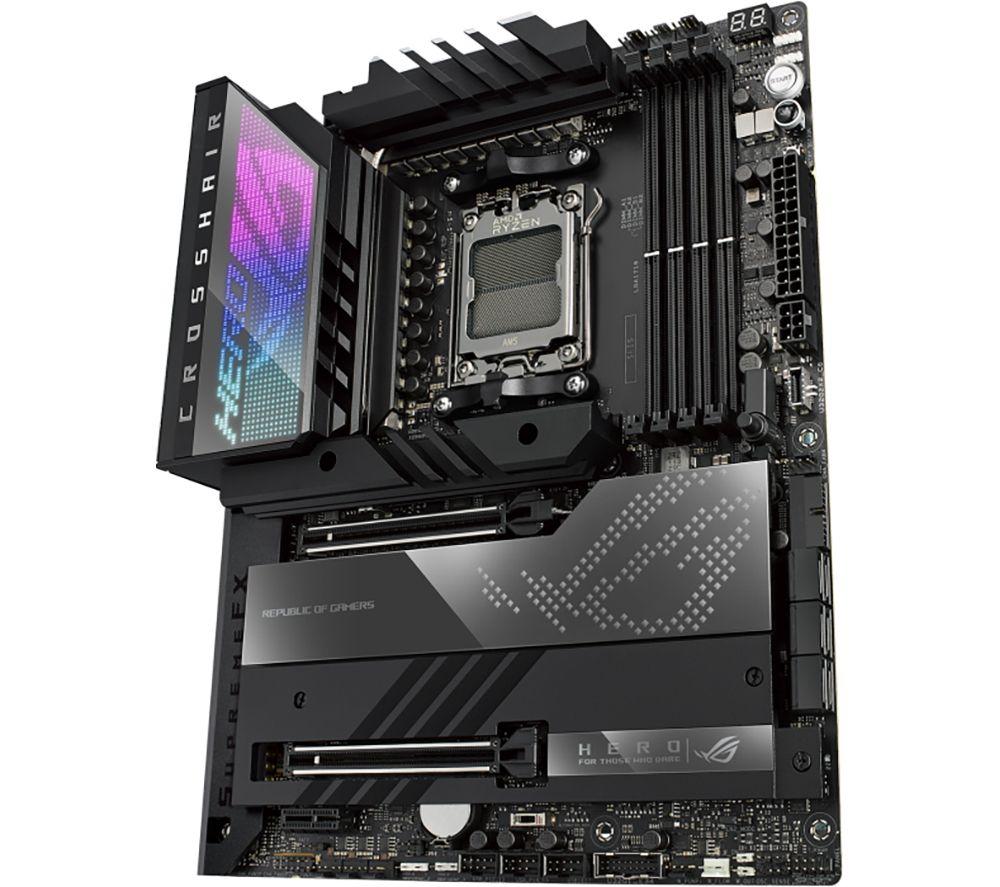

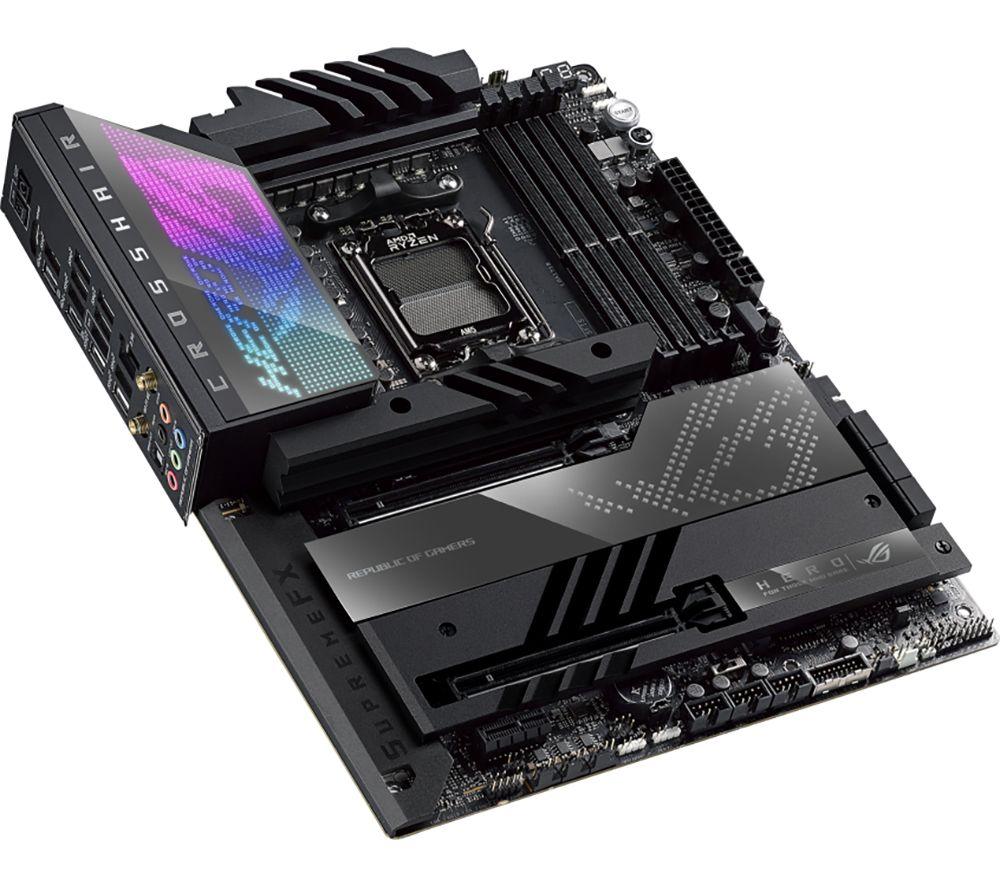

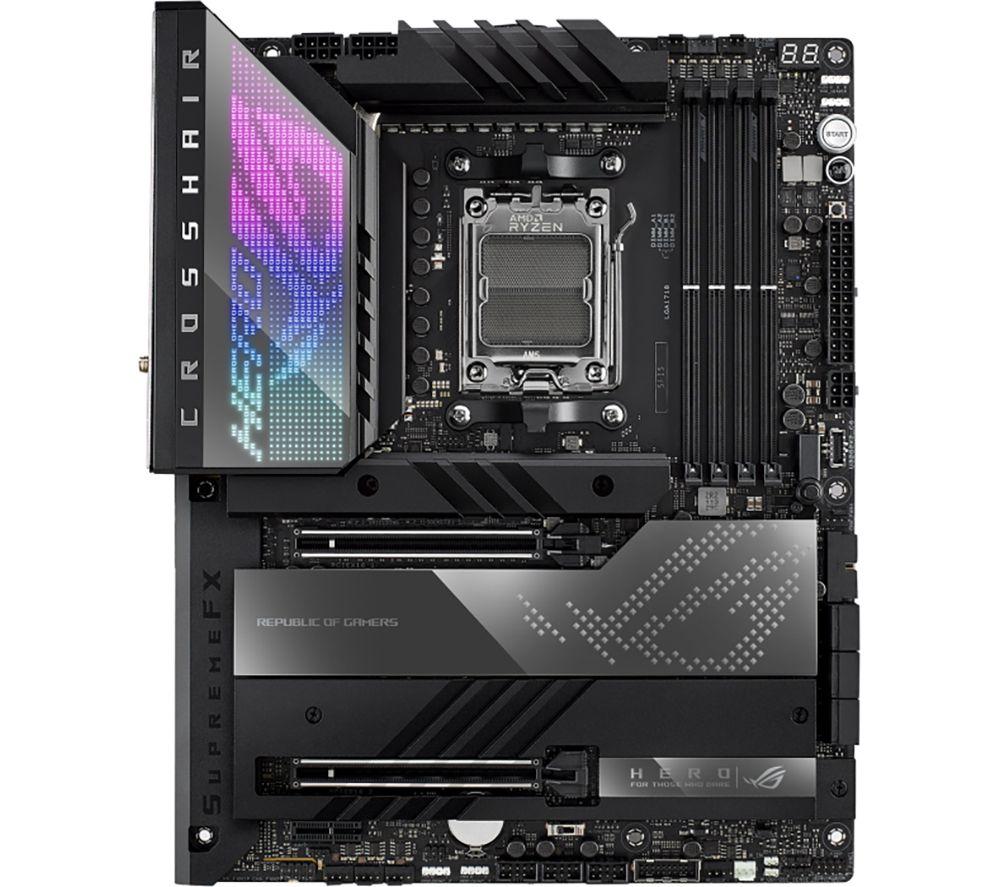

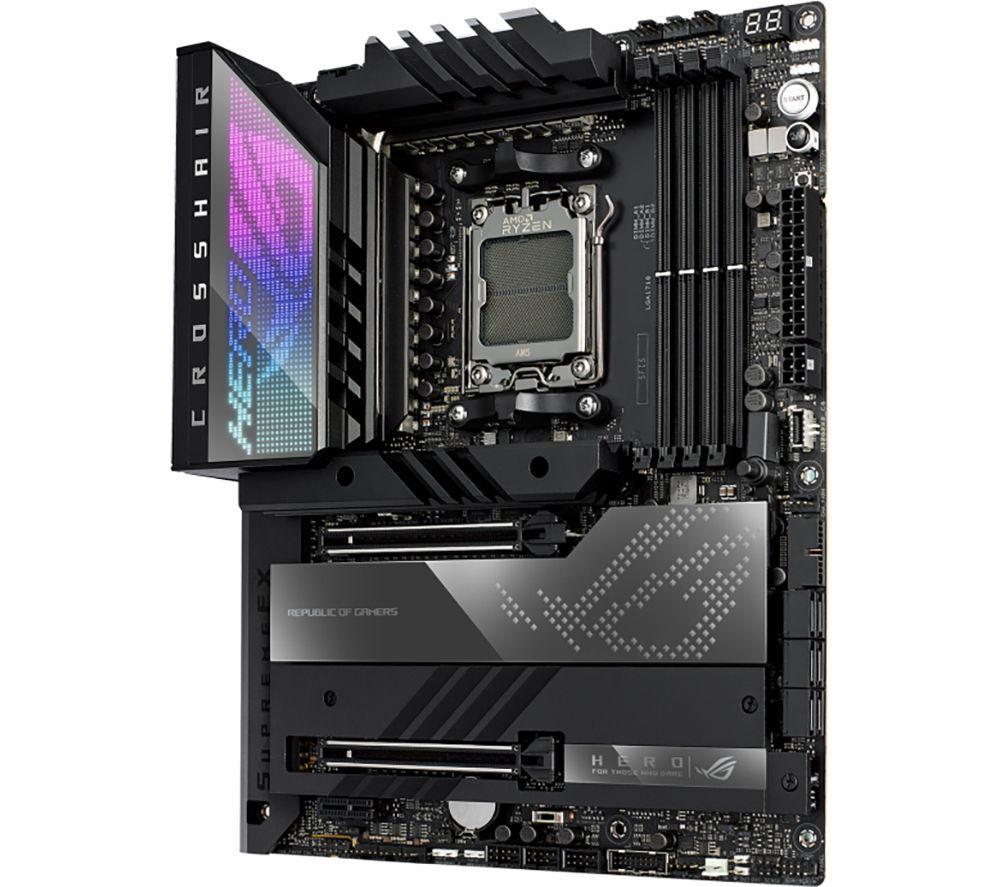

ASUS ROG CROSSHAIR X670E HERO AM5 Motherboard

ASUS ROG CROSSHAIR X670E HERO AM5 Motherboard

Item No. 10251853
Form factor: ATX
Socket: AMD AM5
Chipset: AMD X670
Memory: DIMM x 4 / Max RAM: 128 GB DDR5
3 year guarantee
€859.99
Saved items limit reached (20/20)
To save this item, try removing something else from your Saved items.
Save for later
Saved
Form factor: ATX
Socket: AMD AM5
Chipset: AMD X670
Memory: DIMM x 4 / Max RAM: 128 GB DDR5
3 year guarantee
Product code: 648643

This ROG CROSSHAIR ATX board is the perfect base for your gaming PC. It's ready for a 7000 Series AMD processor, so you can put all those cores to work. You can plug in up to 128 GB of DDR5 RAM and blaze through your workflows. And with PCIe 5.0 and 4.0 you can have high-speed storage and newest GPUs that won't make you wait around.

Good to know

- With 2.5Gb Ethernet and WiFi 6E you'll have super-fast and rock-solid internet connection for online games
- To make sure your hardware stays cool under load, there are massive onboard heatsinks and 6 fan headers
- AI overclocking pushes your CPU to the limit when needed - and you don't have to do anything
- It's got an AIO Pump header and 3 water cooling headers, so you can set up a custom loop and create a unique gaming rig
- Sync the RGB lighting on your motherboard with your components and peripherals using ASUS Aura Sync
- The USB-C ports in the back support 60 W power delivery, letting you quickly charge your other devices while gaming
- You'll be heard loud and clear - the AI noise cancellation blocks out background noise from your mic

Technical specifications for ASUS ROG CROSSHAIR X670E HERO AM5 Motherboard

OVERVIEW

Form factor
ATX
Chipset
AMD X670
Socket
AMD AM5
Processor models supported
AMD Ryzen 7000 Series desktop processors
Memory slots
4 x DIMM (Max RAM: 128 GB)
Memory standard
DDR5
Multi-GPU support
No
Operating systems supported
Windows 10 or later

EXTERNAL CONNECTIVITY

Video output
- HDMI 2.1 x 1
- USB Type-C x 2
LAN
Intel® 2.5Gb Ethernet x 1
Audio
Audio jacks x 5
USB
- USB Type-C x 4
- USB 3.2 Gen 2 x 8
Other external connections
- WiFi module x 1
- Optical S/PDIF x 1

INTERNAL CONNECTIVITY

BIOS
- 256 Mb Flash ROM
- UEFI AMI BIOS
Expansion slots
- PCIe 5.0 (x16) (supports x16 or x8/x8 mode) x 2
- PCIe 4.0 (x1) x 1
Storage slots
- SATA x 6 (6 GB/s)
- M.2 Gen5 x 3 (64 GB/s)
- M.2 Gen4 x 2 (32 GB/s)
Cooling
- CPU fan header 4-pin x 1
- CPU OPT fan header 4-pin x 1
- AIO Pump header 4-pin x 1
- Chassis fan headers 4-pin x 4
- W_PUMP+ header x 1
- Water in header 2-pin x 1
- Water out header 2-pin x 1
- Water flow header 3-pin x 1
Case
- Power LED x 1
- HDD LED x 1
Buttons
- Power
- Reset
- BIOS FlashBack
- FlexKey
- Clear CMOS
Power
- 24-pin EATX x 1
- 8-pin ATX 12 V x 2
- 6-pin PCIe x 1
Sensors
Thermal sensor header x 1
Other internal connections
- Addressable Gen 2 headers x 3
- Alternation mode switch x 1
- Aura RGB header x 1
- Front Panel Audio header (AAFP) x 1
- 10-1 pin System Panel header x 1
USB
- USB Type-C x 1
- USB 3.2 x 2
- USB 2.0 x 3

GENERAL

Box contents
- Asus ROG STRIX X670E-A GAMING AM5 Motherboard
- WiFi antennas
- SATA cables x 4
- ARGB extension cable
- RGB extension cable
- PCIe 5.0 M.2 card with heatsink x 1
- M.2 thermal pad
- M.2 screw package for PCIe 5.0 card x 1
- M.2 Q-Latch package
- M.2 Q-Latch package for M.2 backplate x 3
- M.2 rubber package x 2
- M.2 backplate rubber package x 3
- ROG key chain
- ROG Strix stickers
- ROG Strix thank you card
- User guide
Software included
- Armoury Crate
- AI Suite 3
- TPU
- DIGI+
- Power Control
- Turbo app
- PC Cleaner
- WinRAR
- MyAsus
Weight
1.94 kg
Manufacturer’s guarantee
3 years
Dimensions
305 x 244 x 48 mm (H x W x D)
Colour
Black
