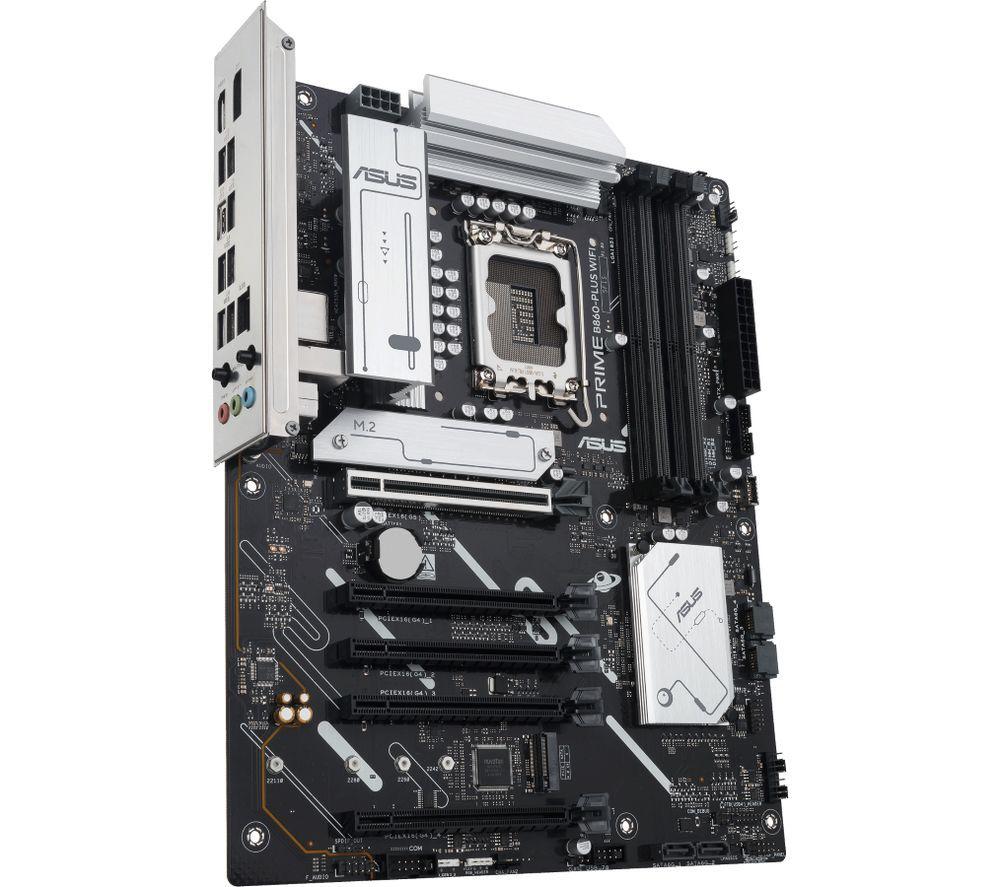

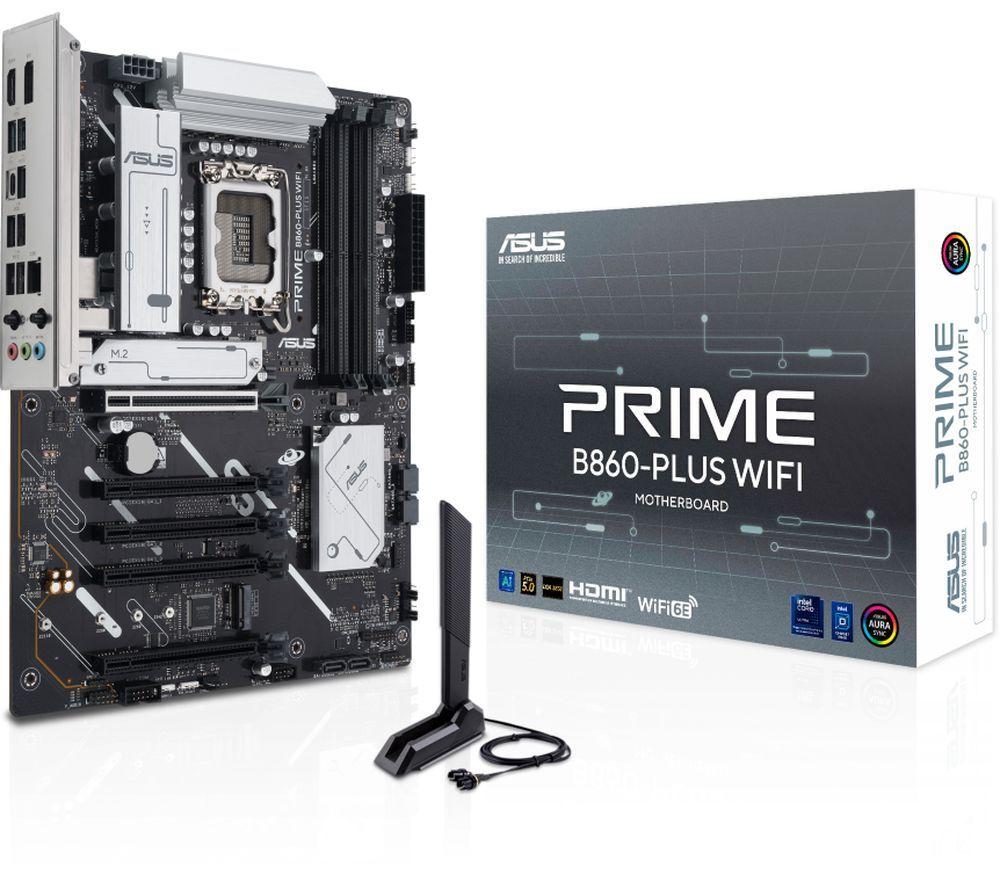

ASUS PRIME B860-PLUS LGA1851 Motherboard

ASUS PRIME B860-PLUS LGA1851 Motherboard

Item No. 10277543
Wk02 2025 Top Deal Computing IE
Form factor: ATX
Socket: Intel® 1851
Chipset: Intel® B860
Memory: DIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee
€379.00
Saved items limit reached (20/20)
To save this item, try removing something else from your Saved items.
Save for later
Saved
Check stock in your area
Please add a valid Eircode or town
Unable to fetch your geolocation, Please try again.
store Delivery Fast nationwide delivery Checking Stock...
store collection Free delivery to store in 3-5 working days Checking Stock...

Delivery to:

Select your preferred delivery option at checkout
Change location

Location selected:

Change location

What you’ll need to make it even better

CRUCIAL Pro Overclocking 32 GB 6000 MHz DDR5 Memory Kit - 16 GB x 2
CRUCIAL Pro Overclocking 32 GB 6000 MHz DDR5 Memory Kit - 16 GB x 2
CRUCIAL Pro Overclocking 32 GB 6000 MHz DDR5 Memory Kit - 16 GB x 2
4.50 out of 5 stars
4.5/5 2 reviews
€179.99
AMD Ryzen 5 7600 Processor
AMD Ryzen 5 7600 Processor
AMD Ryzen 5 7600 Processor
4.80 out of 5 stars
4.8/5 37 reviews
€379.00
Form factor: ATX
Socket: Intel® 1851
Chipset: Intel® B860
Memory: DIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee
Product code: 769333

This ATX board from ASUS is designed to handle powerful components. It's ready for Intel® Core™ Ultra Processors (Series 2), so it's designed for the future of AI computing. You can plug in up to 256 GB of DDR5 RAM and blaze through your workflows. And with PCIe 5.0  you can have high-speed storage that won't make you wait around. Got questions? Just ask the ASUS AI Advisor – this AI tech uses natural language to help guide you through PC hardware.

Good to know

- With 2.5Gb Ethernet you'll have super-fast and rock-solid internet connection
- To make sure your hardware stays cool under load, there are 4 fan headers and an AIO pump header for water-cooling
- You can control the fans using the Fan Xpert 2+ software or in the UEFI BIOS
- It's got a Thunderbolt (USB 4) header ready for super fast connectivity
- Connect RGB LEDs and sync them with your components and peripherals using ASUS Aura Sync

Technical specifications for ASUS PRIME B860-PLUS LGA1851 Motherboard

OVERVIEW

Form factor
ATX
Chipset
Intel® B860
Socket
LGA1851
Processor models supported
- Intel® Core™ Ultra Processors (Series 2)
- Intel® Turbo Boost Technology 2.0
- Intel® Turbo Boost Max Technology 3.0
Memory slots
4 x DIMM (Max RAM: 256 GB)
Memory standard
DDR5
Operating systems supported
Windows 11 or later

EXTERNAL CONNECTIVITY

Video output
- HDMI x 1
- DisplayPort x 1
LAN
Realtek 2.5Gb Ethernet x 1
Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- 3.5 mm jack x 3
- S/PDIF out header x 1
USB
Rear:
- USB Type-C (20Gbps) x 1 port
- USB Type-A (10Gbps) x 2 ports
- USB Type-A (5Gbps) x 1 port
- USB 2.0 x 4

Front:
- USB 3.2 Gen 1 USB Type-C x 1
- USB 3.2 Gen 1 USB 3.2 x 2
- USB 2.0 x 2

INTERNAL CONNECTIVITY

BIOS
- 128 Mb Flash ROM x 2
- UEFI AMI BIOS
Expansion slots
- PCIe 5.0 (x16) x 1
- PCIe 4.0 (x16) (support x4 mode) x 1
- PCIe 4.0 (x16) x 3
Storage slots
- SATA x 4 (6 GB/s)
- M.2 x 2
Cooling
- 4-pin CPU fan header x 1
- 4-pin CPU OPT fan header x 1
- 4-pin AIO pump header x 1
- 4-pin Chassis fan headers x 4
Buttons
BIOS FlashBack
Power
- 24-pin main power connector x 1
- 8-pin 12V CPU power x 1
Other internal connections
- Thunderbolt USB4 header x 1
- Addressable Gen 2 headers x 3
- Aura RGB header x 1
- Clear CMOS header x 1
- COM port header x 1
- Front panel audio header (AAFP) x 1
- S/PDIF out header x 1
- 14-1pin SPI TPM header x 1
- 10-1 pin System panel header x 1
USB
- USB 3.0 x 6
- USB 2.0 x 5
- USB Type-C X 2

GENERAL

Box contents
- Asus PRIME B860-PLUS LGA1851 Motherboard
- SATA cables x 2
- WiFi Q-Antenna x 1
- M.2 rubber package
- Screw package for M.2 SSD x 1
- Quick start guide x 1
Software included
- ASUS Exclusive Software
- UEFI BIOS
Manufacturer’s guarantee
3 years
Dimensions
305 x 244 x 49 mm (H x W x D)
Colour
Black
