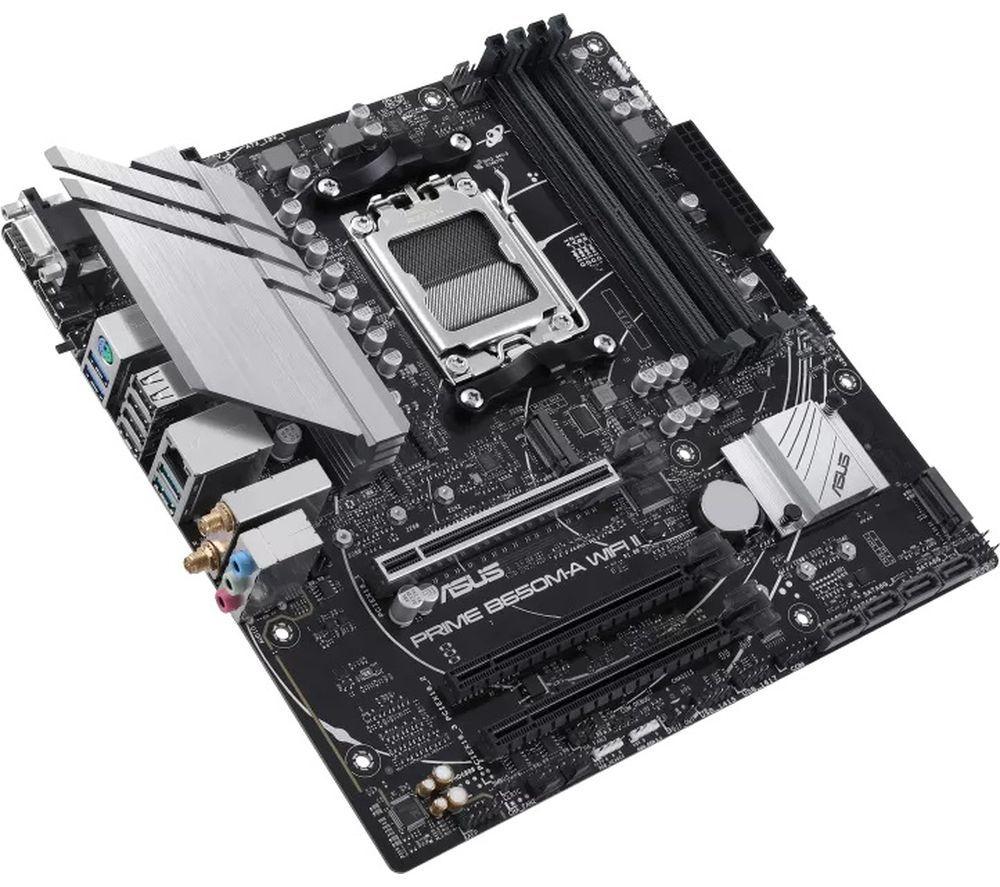

Name: ASUS PRIME B650M-A WIFI II AM5 Motherboard
Brand: ASUS
SKU: 10263461
Price: 249.00 EUR
Availability: InStock

ASUS PRIME B650M-A WIFI II AM5 Motherboard image number 0

ASUS PRIME B650M-A WIFI II AM5 Motherboard image number 1

Form factor: microATX

Socket: AMD AM5

Chipset: AMD B650

Memory: DIMM x 4 / Max RAM: 192 GB DDR5

3 year guarantee

€249.00

Save for later

Check stock in your area

Checking Stock...

What you’ll need to make it even better

Add Processors

5.00 out of 5 stars

5/5 21 reviews

€599.00

Form factor: microATX

Socket: AMD AM5

Chipset: AMD B650

Memory: DIMM x 4 / Max RAM: 192 GB DDR5

3 year guarantee

Product information

Product code: 713470

Building a compact gaming PC? This microATX board from ASUS Prime is designed to handle powerful components. It's ready for a 7000 and 8000 Series AMD processor, so you can put all those cores to work. Add up to 192 GB of DDR5 RAM and blaze through your workflows. And with PCIe 5.0 and 4.0 M.2 slots, you can pop in high-speed SSDs that won't make you wait around.

Good to know

- With 2.5 Gb Ethernet and WiFi 6 you'll have super-fast and rock-solid internet connection
- ASUS Armoury Crate gives you control over cooling and performance, two-way noise cancellation and more
- Connect RGB lights and sync them with your components and peripherals using ASUS Aura Sync
- To make sure your hardware stays cool under load, there are onboard heatsinks and 5 fan headers

Specifications

Technical specifications for ASUS PRIME B650M-A WIFI II AM5 Motherboard

OVERVIEW

Form factor

microATX

Chipset

AMD B650

Socket

AMD AM5

Processor models supported

AMD Ryzen 7000/8000 Series desktop processors

Memory slots

4 x DIMM (Max RAM: 192 GB)

Memory standard

DDR5

Multi-GPU support

Operating systems supported

Windows 10 or later

EXTERNAL CONNECTIVITY

Video output

- HDMI x 1
- DisplayPort x 1

LAN

2.5 Gigabit Ethernet (10/100/1000/2500) port x 1

Audio

3.5 mm jack x 3

USB

- USB Type-C x 1
- USB 3.2 x 1
- USB 2.0 x 2

Other external connections

- WiFi module x 1
- PS/2 Keyboard/Mouse combo port x 1

INTERNAL CONNECTIVITY

BIOS

- UEFI AMI BIOS
- 256 Mb Flash ROM

Expansion slots

- PCIe 4.0 (x16) x 2
- PCIe 4.0 (x16) x 1
- PCIe 4.0 (x16) x 1

Storage slots

- SATA x 4 (6 GB/s)
- M.2 PCIe 5.0 x 1 (64 GB/s)
- M.2 PCIe 4.0 x 1 (32 GB/s)

Cooling

- CPU fan 4-pin x 1
- CPU OPT fan 4-pin x 1
- Case fan 4-pin x 3

Case

Power LED x 1

Buttons

- Power
- Clear CMOS
- BIOS FlashBack

Power

- 24-pin EATX x 1
- 8-pin ATX x 1
- 4-pin ATX x 1

Other internal connections

- Addressable gen 2 headers x 3
- Aura RGB header x 1
- Clear CMOS header x 1
- COM Port header x 1
- Front panel audio header (AAFP) x 1
- S/PDIF out header x 1
- Speaker header x 1
- SPI TPM header (14-1pin) x 1
- 10-1 pin system panel header x 1

USB

- USB 3.2 x 4
- USB 2.0 x 4

GENERAL

Box contents

- ASUS PRIME B650M-A WIFI II AM5 Motherboard
- SATA cables (6 Gb/s) x 2
- ASUS Wi-Fi moving antennas x 1
- I/O shield x 1
- Screw package for M.2 SSD x 1
- Documentation
- User guide

Software included

- ASUS exclusive software
- Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
- AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
- ASUS CPU-Z
- MyASUS
- WinRAR
- UEFI BIOS
- ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

Weight

767 g

Manufacturer’s guarantee

3 years

Dimensions

244.4 x 244.4 x 25mm (H x W x D)

Colour

Black
