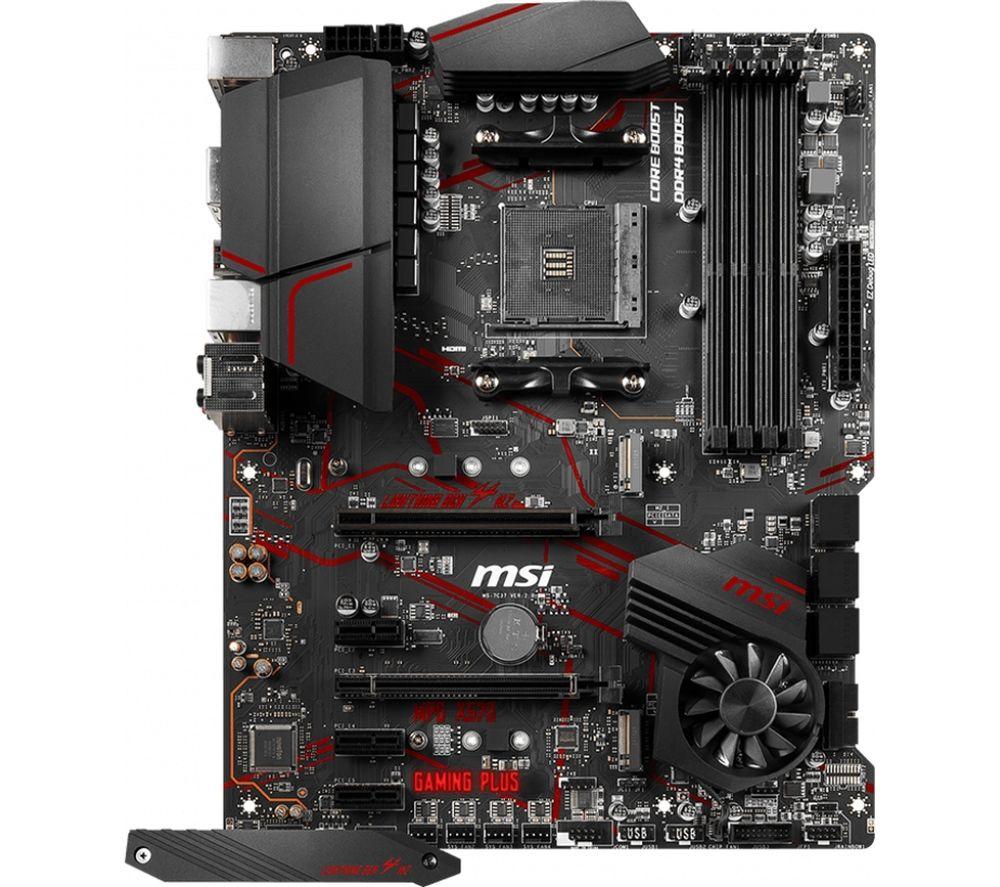

MSI GAMING PLUS AMD X570 AM4 Motherboard
€219.99

MSI GAMING PLUS AMD X570 AM4 Motherboard

Item No. 10195795
Form factor: ATX
Socket: AMD AM4
Chipset: AMD X570
Memory: DIMM x 4 / Max RAM: 128 GB
AMD CrossFire x 2
3 year guarantee
€219.99
Success!
We'll email you when it's back in stock.
Out of stock.

View similar products.

Email me when it’s back in stock.

Invalid Email
Saved items limit reached (20/20)
To save this item, try removing something else from your Saved items.
Save for later
Success!
We'll email you when it's back in stock.
Out of stock.

View similar products.

Email me when it’s back in stock.

Invalid Email
Form factor: ATX
Socket: AMD AM4
Chipset: AMD X570
Memory: DIMM x 4 / Max RAM: 128 GB
AMD CrossFire x 2
3 year guarantee
Product code: 696033

Pair with a Ryzen processor

Compatible with any 2nd or 3rd gen Ryzen processors, the MSI GAMING PLUS Motherboard is the perfect foundation for an incredibly powerful PC.

Impressive cooling options

Stacking up those components? Cooling matters – which is why MSI has added a head duty heatsink and loads of fan connectors.

Straightforward DIY

Designed for easy assembly, the GAMING PLUS Motherboard has system tuning features and troubleshooting tools to make setup even easier.

Technical specifications for MSI GAMING PLUS AMD X570 AM4 Motherboard

OVERVIEW

Form factor
ATX
Chipset
AMD X570
Socket
AMD AM4
Processor models supported
2nd generation AMD Ryzen processors or later
Memory slots
4 x DIMM (Max RAM: 128 GB)
Memory standard
DDR4
Multi-GPU support
AMD CrossFire x 2
Operating systems supported
Windows 10

EXTERNAL CONNECTIVITY

Video output
HDMI x 1
LAN
Ethernet port x 1
Audio
- Audio jacks x 5
- Optical S/PDIF x 1
USB
- USB Type-C x 1
- USB 3.2 (Gen 1) x 4
- USB 3.2 (Gen 2) x 1
- USB 2.0 x 2
Other external connections
PS/2 Mouse port x 1
Expansion slots
- PCIe (x16) x 1
- PCIe (x4) x 1
- PCIe (x1) x 3
Storage slots
- SATA x 6 (6 GB/s)
- M.2 x 2
Cooling
- CPU fan 4-pin x 1
- Water-pump connector x 1
- System fan connector 4-pin x 4
Buttons
Flash BIOS button
Power
- 24-pin ATX x 1
- 8-pin ATX 12 V x 1
- 4-pin ATX 12 V x 1
Other internal connections
- Front panel audio connector x 1
- System panel connector x 2
- TPM module connector x 1
- Serial port connector x 1
- Clear CMOS jumper x 1
- Chassis intrusion connector x 1
- 4-pin RGB LED connector x 2
- 3-pin LED connector x 2
- EZ Debug LEDs x 4
USB
- USB 2.0 connector x 2 (supports additional 4 USB ports)
- USB 3.2 connector x 2 (supports additional 4 USB ports)

GENERAL

Box contents
- MSI GAMING PLUS AMD X570 AM4 Motherboard
- I/O Shielding
- M.2 Frozr accessory
- SATA cables x 2
- MSI case badge
- Installation guide
- User manual
Weight
1.5 kg
Manufacturer’s guarantee
3 years
Dimensions
304 x 243 x 80 mm (H x W x D)
Colour
Black
